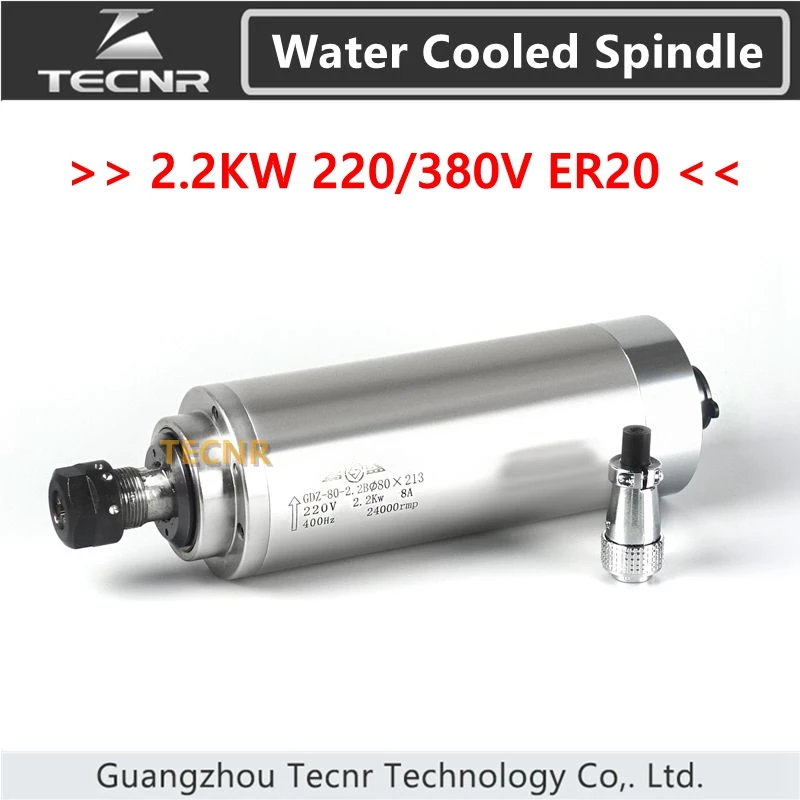

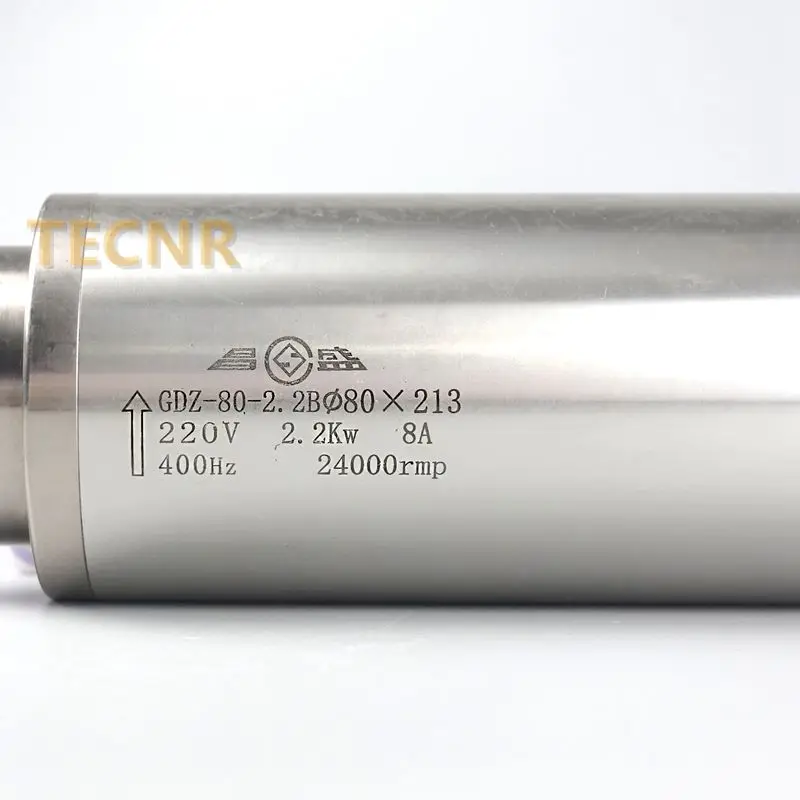

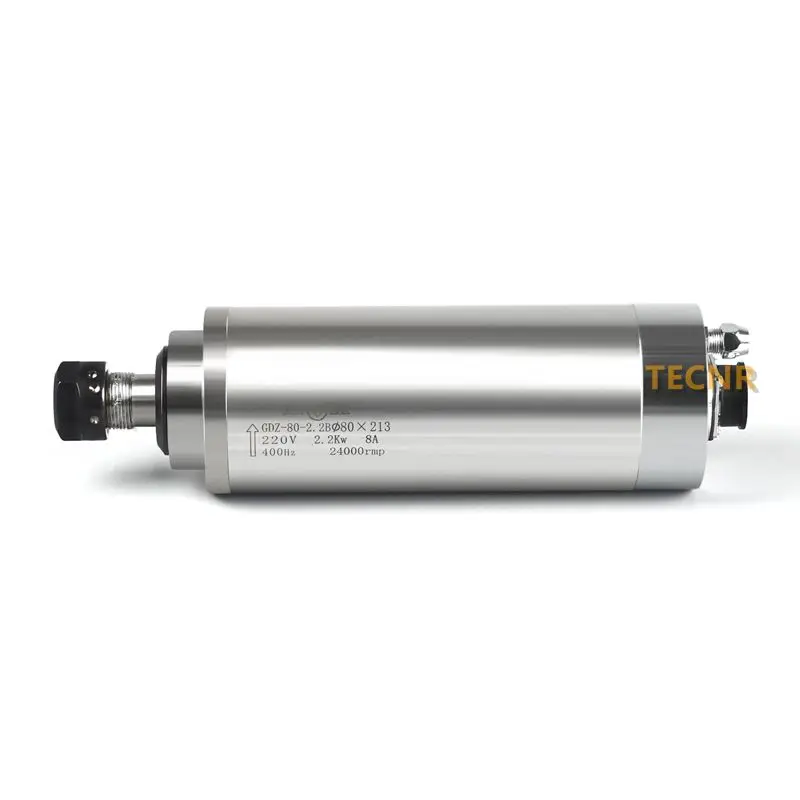

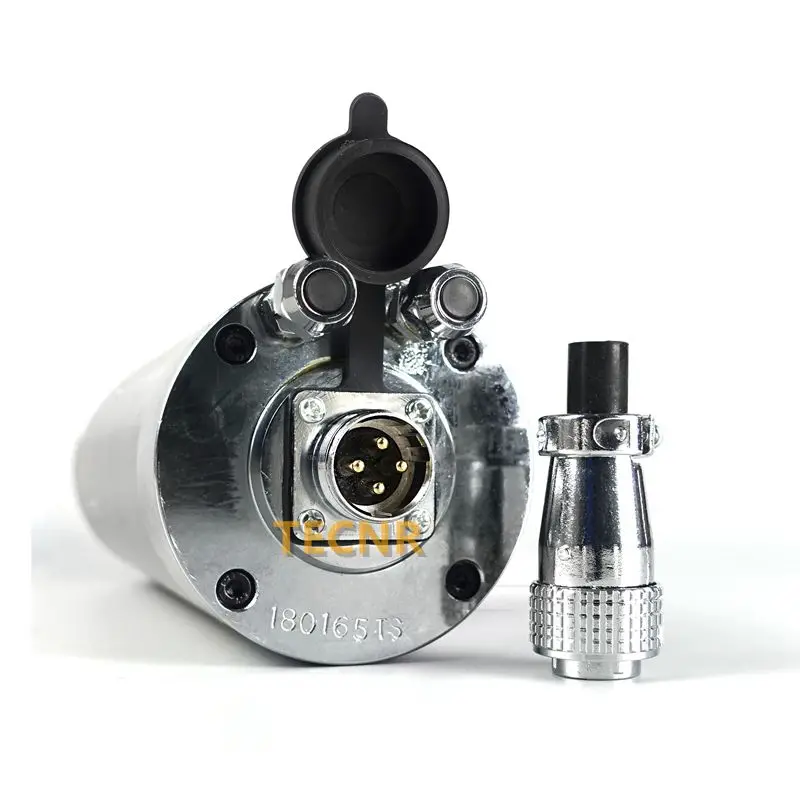

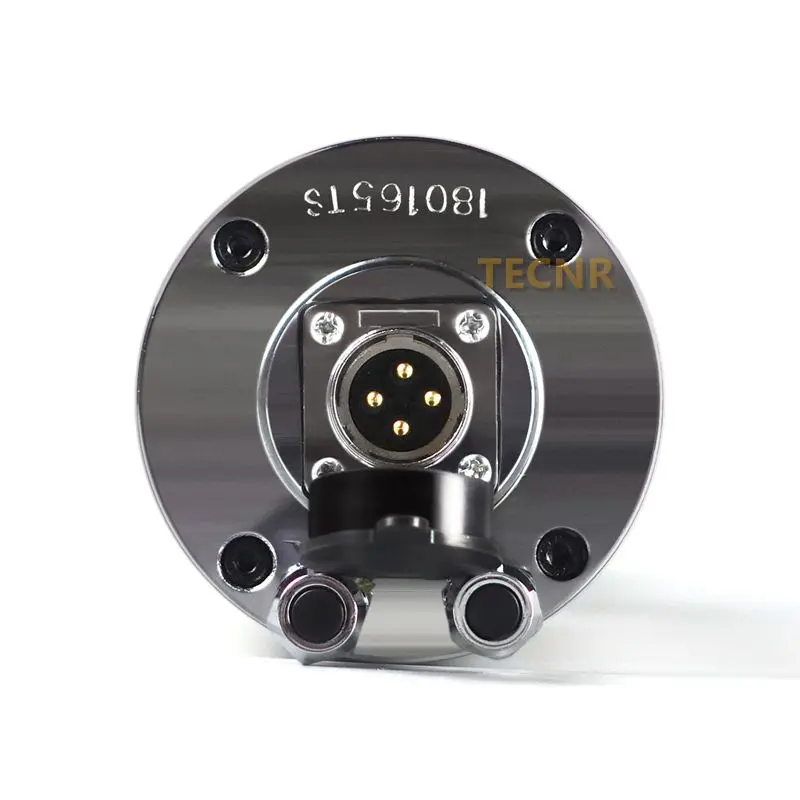

cnc spindle motor 2.2KW 220V 380V water cooled spindle ER20 with 80MM diameter GDZ-80-2.2B
Technical Details
| Application: | Milling |
| Bearing: | 7005C P4*2 DT 7002C P4*1 |
| Brand Name: | TECNR |

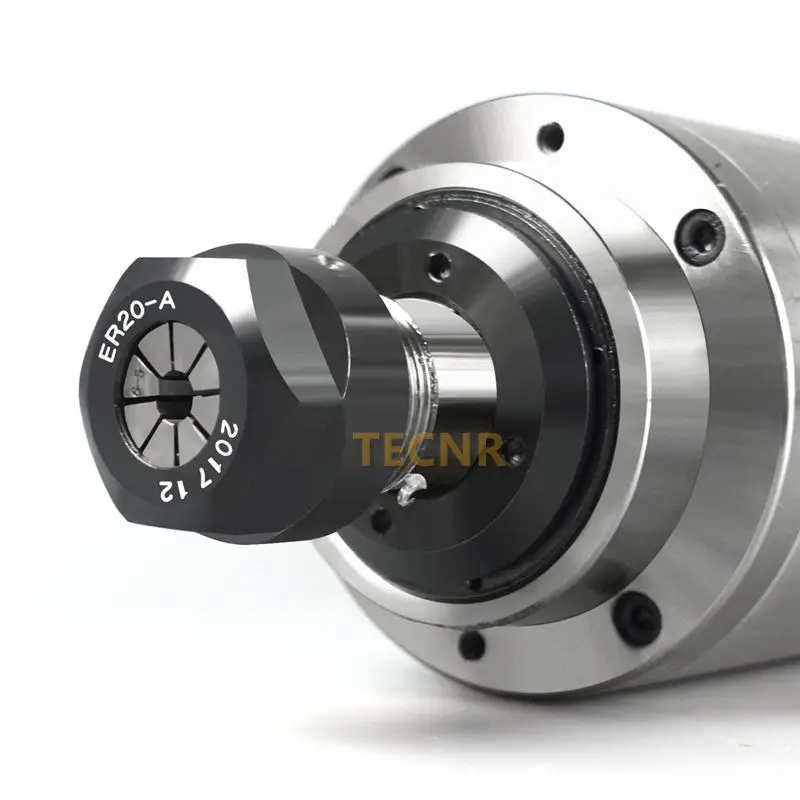

| Collet: | ER20 |
| Current: | 8A |
| diameter: | 80MM |
| Drive: | Motor |
| Maximum Torque: | 230mN.m |
| Model Number: | GDZ-80-2.2B |
| Operating Speed: | 24000rpm |
| Power: | 2.2KW |
| Size: | 80*213MM length |
| Type: | Changsheng (CS)GDZ-80-2.2B |
| Voltage: | 220V(380V are optional) |
| Warranty: | Bearing(half year), spindle(one year) |
| Working speed: | 0-24000RPM |
