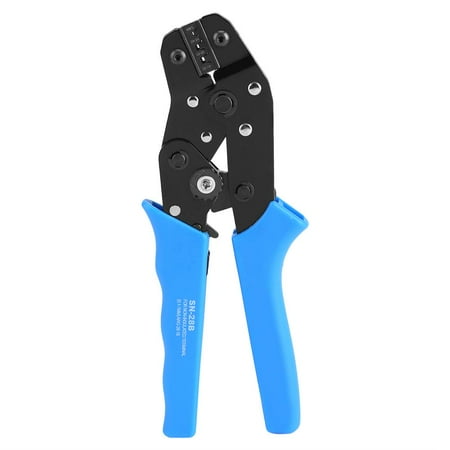

Zerodis SN-28B Pin Socket Terminal Crimping Tool Crimper For JST-SM

Features: Small clamp feel good. Automatic buckle lock more powerful. Ratchet - type force - connecting rod structure. Can be adjusted by adjusting the wheel control handle crimping force. Operation more easily pressure line faster. This crimping tool can be used to crimp both male and female crimp pins onto 18-28 AWG wires to make custom cables. Specification: Condiiton: 100% Brand New Color: Blue + Black Material: Ni-Cr alloy steel Size: (L) x (W) 190 x 150 mm / 7.48 x 5.51 (appr.) How to use: 1.If on a roll don t cut the pins off leave them on until the wire is crimped. Prepare the wire by stripping about 1/8 (3 mm) of insulation from the end. Place the wire in the crimp pin lining it up so that the stripped portion lies between the inner set of tabs on the crimp pin while insulated wire lies between the outer set of tabs. 2.If your crimp pins are too short for this method. see the bottom of these instructions for an alternative. Place the wire and crimp pin on the appropriate tooth of the tool s die making sure that the insulated end is on the raised and wider half of the tooth. The tabs should point toward the cavity on the other side of the die so that the tool bends them inward around the wire when it closes. 3.Close the jaws of the tool slowly and completely until they release. The tabs on a properly crimped pin should form one barrel around the wire conductors and another barrel for strain relief around the wire insulation. 4.Alternatively if the crimp pins are too short for this method (or if not on a roll) then snap the pin from the holding strip completely. Insert into the correct slot in the crimping tool and ratchet the crimp tool to just hold in place. Insert the wire from the other end and crimp. Package Included: 1 X SN-28B Crimping tool Notice: Please allow 1-3cm error due to manual measurement and make sure you do not mind before ordering. Please understand that colors may exist chromatic aberration as the different placement of pictures.
