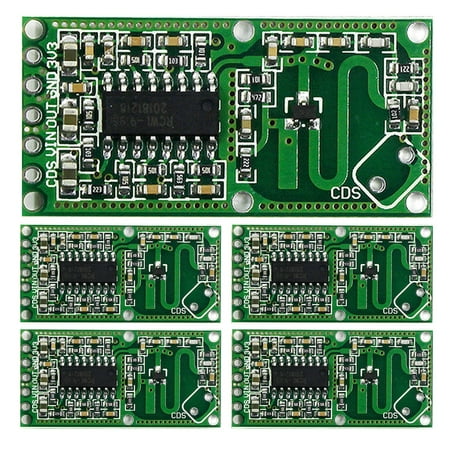

Yannee RCWL-0516 Microwave induction switch module intelligent induction detector

Feature *RCWL-0516 is a microwave induction module that uses multiple technology to detect objects moving. Widely used in various human sensing lighting and anti -theft alarm. *This module has the characteristics of high sensitivity long induction distance strong reliability large induction angle and wide range of power supply voltage. *Wide working voltage model 4.0 ~ 28.0V the blockade time the distance is adjustable. Can output 3.3V power supply. *Use a dedicated signal processing control chip RCWL-9196. Compared with traditional infrared induction PIR it has the ability to penetrate and detect *5 packs of value packages you can have multiple replacements which can save your money and time for a long time. Specification Pipe definition 3v3: 3V3 power output GND: Module OUT: Control the output detect that there are high levels of mobile objects output Vin: Input voltage 4-28V. CDS: Enable the chip to control the chip below 0.7V OUT always outputs low levels Working voltage: 4V -28V Work current: 2.8ma-3MA Detection distance: 5-7-9m (min-typ-max) Launch power: 20MW-30MW Output voltage: 3.2V-3.3V-3.4V (min-typ-max) Output voltage driver capacity: 100mA Triggeon: Repeat trigger Low output control: 0V Output control high level: 3.3V Work temperature: -20 ℃ -80 ℃ Storage temperature: -40 ℃ -100 ℃ Pay attention when applying design: 1. There must be no metal blocking in front of the induction surface. 2. The front and back of the induction surface should be reserved with more than 1cm. 3. The module is parallel to the plane of the installation carrier. 4. The application of a certain detection area is valid. 5. The component surface of the module is a positive surface and the negative sensor surface is negative. The effect of negative sensor surface is slightly worse. 6. Microwave modules cannot be used in large scale in the same area otherwise mutual interference will occur and the distance between individual individuals is greater than 1m. Package included 5*Microwave induction switch module Note: 1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. 2. Please allow slight manual measurement deviation for the data.
