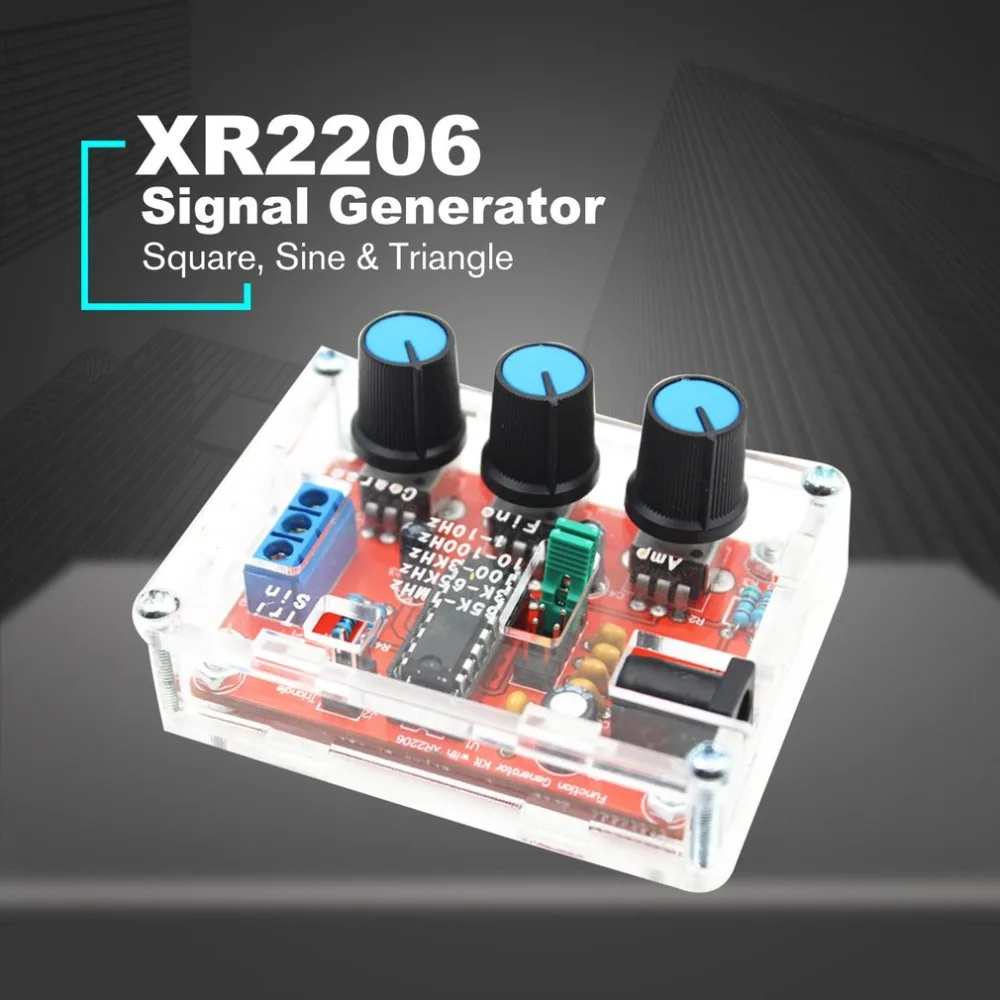

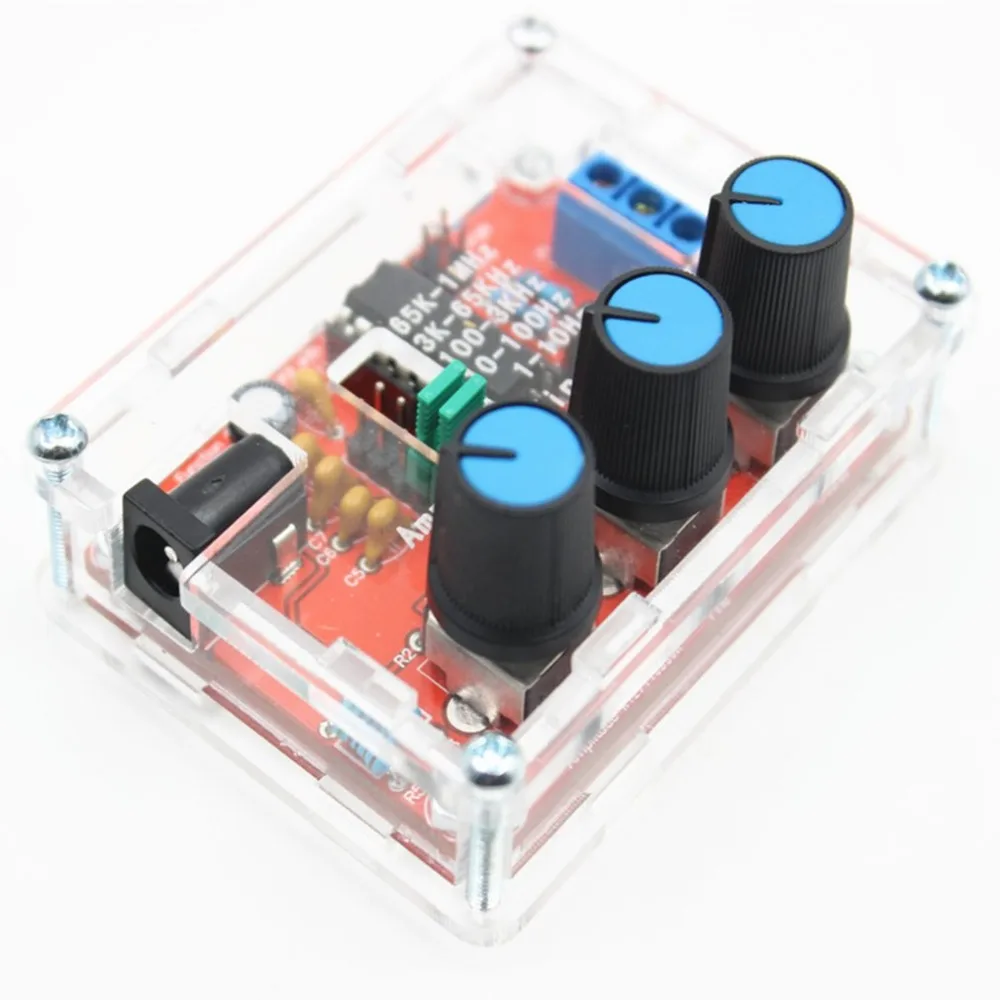

XR2206 Signal Function Generator Sine Triangle Square Wave Output 1Hz-1MHz High Precision Frequency Adjustable Module DIY
sku: 32967122404
ACCORDING TO OUR RECORDS THIS PRODUCT IS NOT AVAILABLE NOW
$3.74
Shipping from: China
Technical Details
| Brand Name: | ACEHE |
| Display Size: | 3.0 - 4.9 Inches |
| DIY Supplies: | Electrical |
| Frequency: | 1Hz - 1MHz |
| Impedance: | 600 Ohm + 10% |
| Model: | XR2206 |
| Model Number: | XR2206 |
| SINE WAVE amplitude: | 0 - 3V at 9V DC input |
| Sine Wave Distortion: | Less than 1% (at 1kHz) |
| Sine Wave Flatness: | +0.05dB 1Hz - 100kHz |
| Square wave Amplitude: | 8V (no load) at 9V DC input |
| Square Wave Fall Time: | Less than 30ns (at 1kHz) |
| Square wave rise time: | Less than 50ns (at 1kHz) |
| Square Wave Symmetry: | Less than 5% (at 1kHz) |
| Triangle wave amplitude: | 0 - 3V at 9V DC input |
| Triangle Wave Linearity: | Less than 1% (up to 100kHz) 10mA |
| Voltage supply: | 9-12V DC Input |
| Waveforms: | Square, Sine & Triangle |
