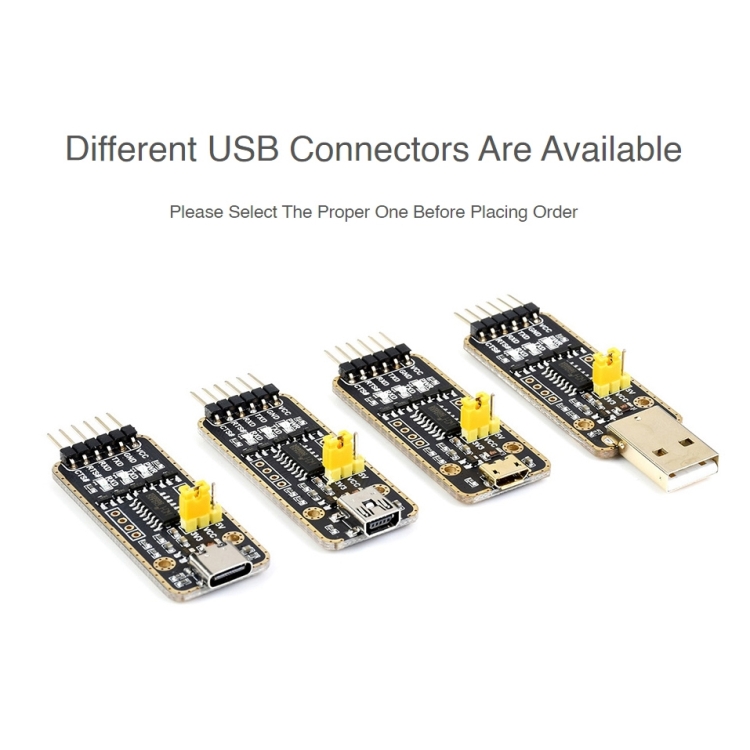

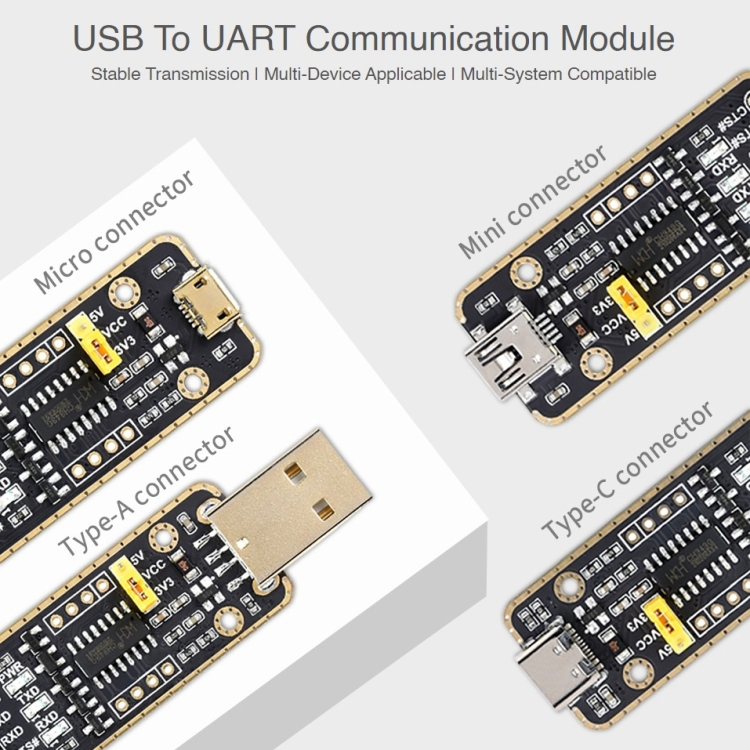

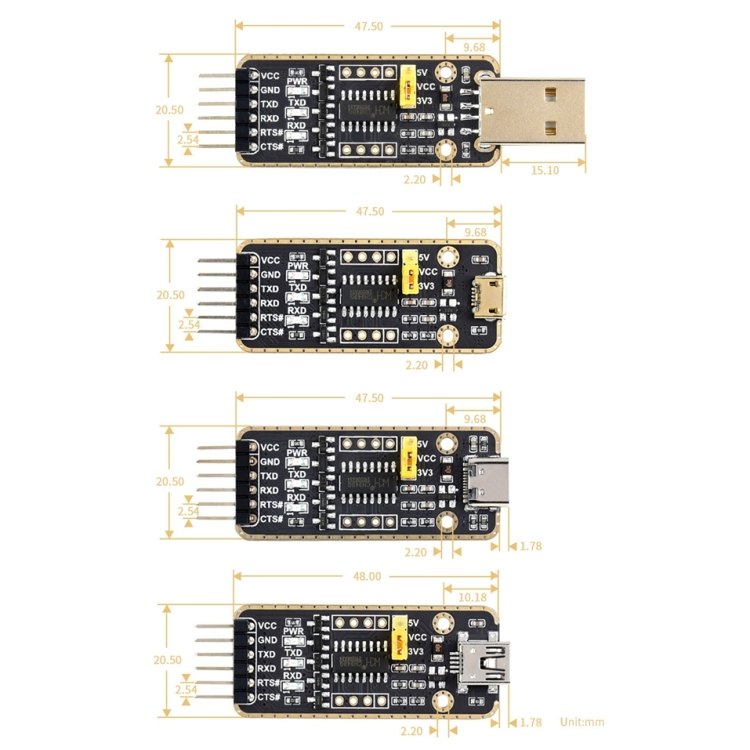

Waveshare USB-A to UART High Band Rate Transmission Module Connectors

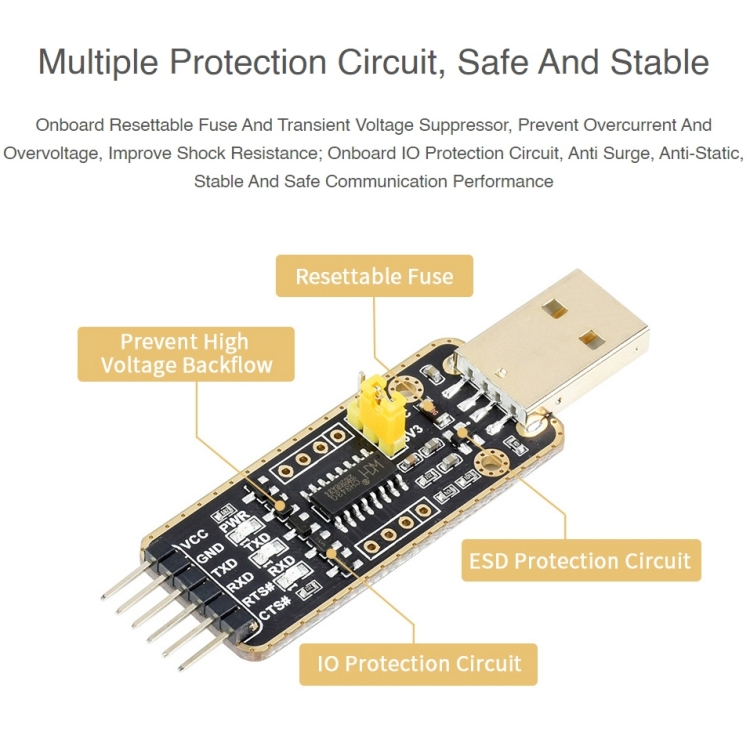

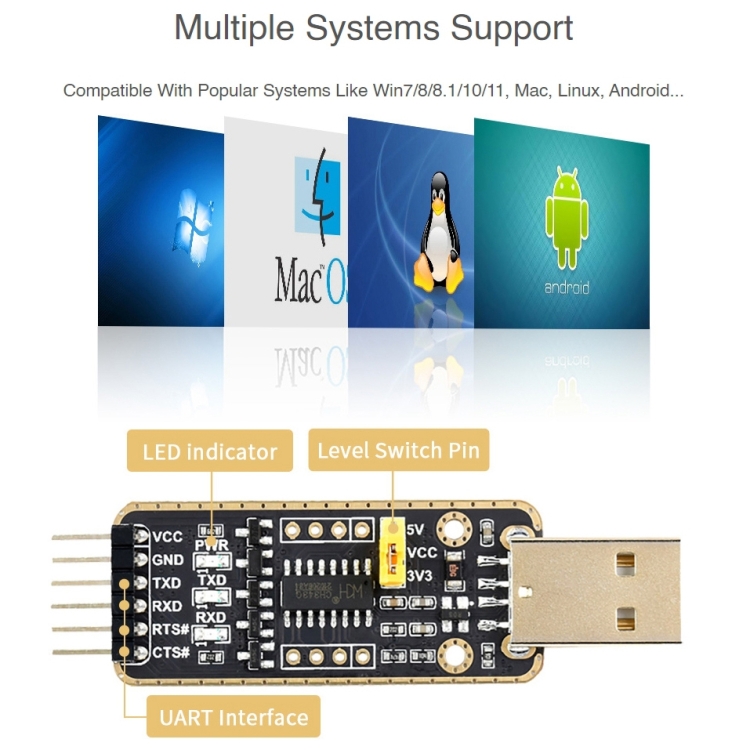

Features1. Adopt new version CH343G chip. Compared with CH340G, it supports higher data rate (up to 6Mbps) and more serial port IO levels (5V / 3.3V / 2.5V / 1.8V) 2. Support Mac, Linux, Android, Windows 7/8/8.1/10/11 3. Onboard resettable Fuse and Transient Voltage Suppressor, anti-overcurrent and anti-overvoltage, anti-surge, anti-static, improve shock resistance, stable and safe communication performance 4. Onboard IO protection circuits, anti-surge, anti-static, stable and safe communication performance 5. Onboard 3.3V and 5V TTL level switch pins for selecting TTL communication level 6. Support 3.3V/5V output (the module is powered by USB, and the onboard jumper should be shorted to 3.3V or 5V accordingly) 7. Adopt double-sided black immersion gold process, which is durable and has a good lookSpecifications1. Host interface: USB 2. Device interface: UART 3. Communication range: 50bps ~ 6Mbps 4. USB device interface: USB Type-A 5. Protection: resettable Fuse, ESD protection 6. UART interface connector: 6-pin right-angle pinheader 7. Protection: IO protection diodeIndictor Description1. PWR: Power indicator, turn on when the voltage is detected from USB interface 2. RXD: Receiving indicator, turn on when data is sent back from the device interface 3. TXD: Sending indicator, turn on when data is sent from USBPinouts Definition1. VCC: 5V or 3.3V output for external device (configured by jumper) 2. GND: Ground 3. TXD: Connects to MCU.RXD 4. RXD: Connects to MCU.TXD 5. RTS: Connects to MCU.CTS 6. CTS: Connects to MCU.RTS
