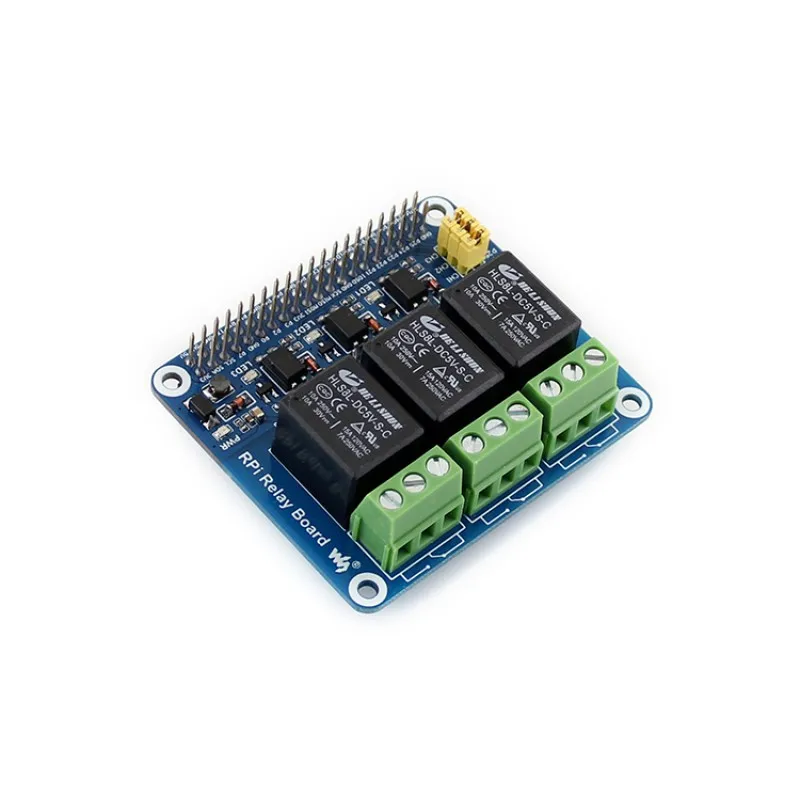

Waveshare Power Relay Board Raspberry Pi Expansion Board,for Raspberry Pi A+/B+/2B/3B/3B+ for Home Automation Intelligent
Technical Details
| Brand Name: | Waveshare |
| Comes with development resources: | including examples in wiringPi, WebioPi, shell, python, and bcm2835 |
| Demo Board Type: | ARM |
| High quality relays: | loads up to 250VAC/5A, 30VDC/5A |
| Model Number: | RPi Relay Board |
| Onboard LEDs: | for indicating relays status |
| Photocoupler: | PC817 |
| Photo coupling isolation: | prevent interference from high voltage circuit |
| Relay control jumper: | to control the relays by custom pins other than the default pins |

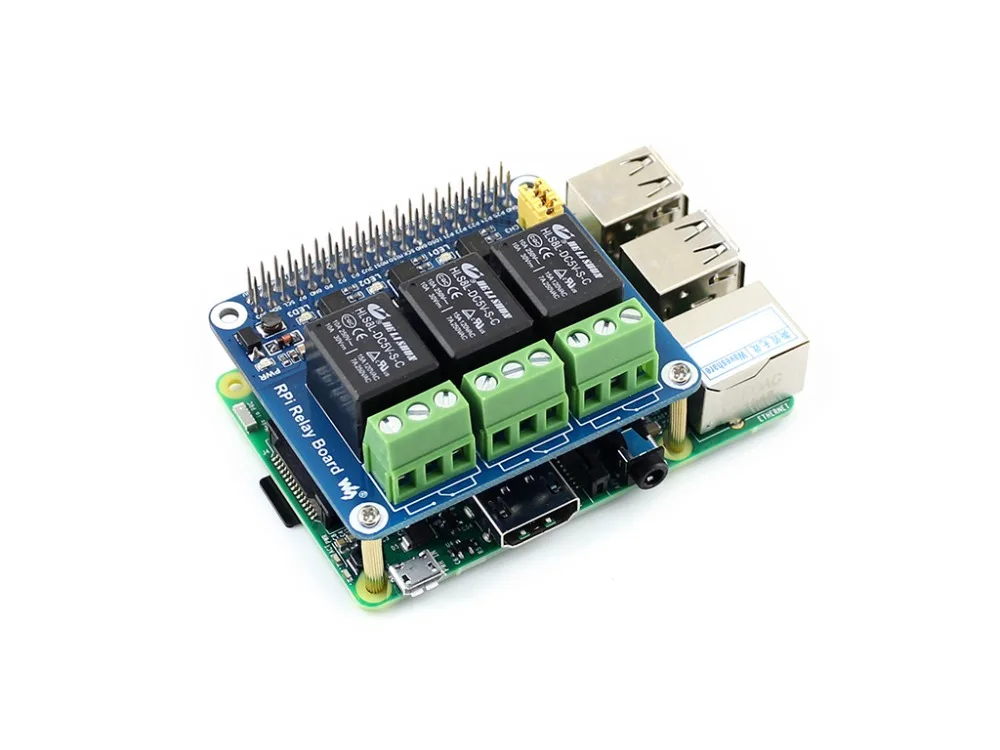

| Supports: | Raspberry Pi A+/B+/2B/3B/3B+ |
