Waveshare 2D Codes Scanner Module Supports 4mil High-density Barcode Scanning,23962

Waveshare 2D Codes Scanner Module Supports 4mil High-density Barcode Scanning,23962
thumb
thumb
thumb
thumb
thumb
thumb
Waveshare
sku: 2665310
ACCORDING TO OUR RECORDS THIS PRODUCT IS NOT AVAILABLE NOW
$37.18
Shipping from: China
   Description

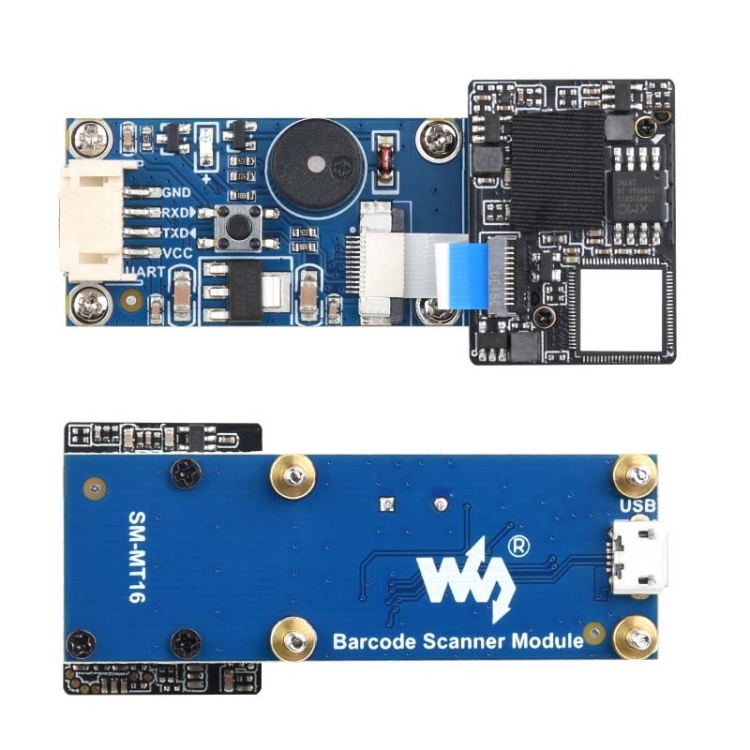

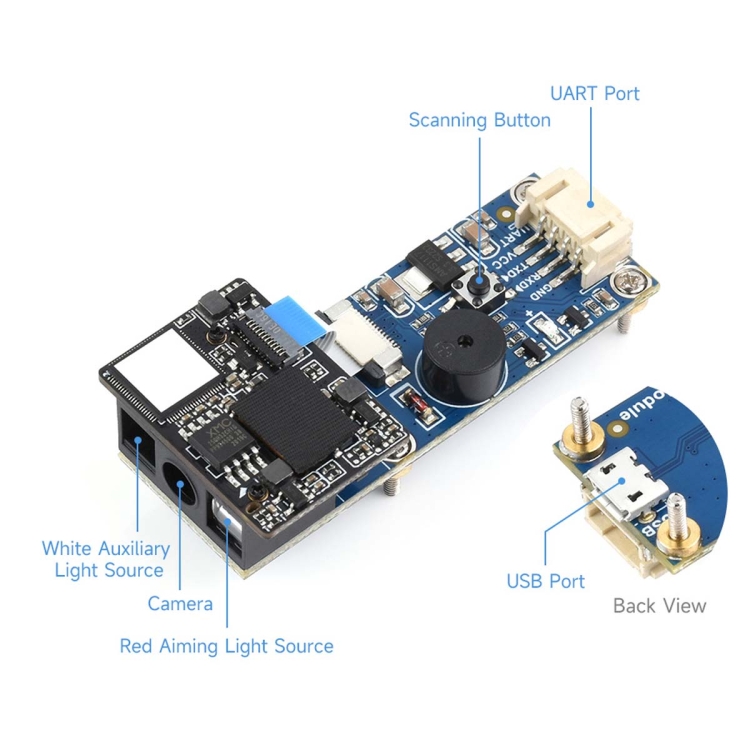

1. Barcode scanning module (B) is a barcode / 2D code scanning module, which can quickly and accurately decode 1D or 2D codes on paper or screen through intelligent image recognition algorithm.2. Support multiple barcode formats and 4mil high density barcode scanning. 3. On-board USB and UART interface, which can be directly plugged into a computer or easily integrated into various embedded devices.4. Resolution: 640 x 4805. Scanning angle: pitch +/-65 degrees, skew +/-65 degrees, roll 360 degrees6. Scanning mode: sensing, continuous, manual (default)7. Precision: greater than or equal to 4 million8. Communication interface: USB keyboard mode (default), USB virtual port, UART port9. Light source: white (Lighting) + red (Aiming), both visible light10. Power supply: 5V/3.3V11. Current: 262mA at work, 75mA at standby, 108mA at boot12. Temperature: working temperature -20-60 degrees Celsius, storage -30-70 degrees CelsiusPacking list:Bar code scanning module (B) x1USB A-type plug to micro B plug cable x1PH2.0 4Pin data cable x1
