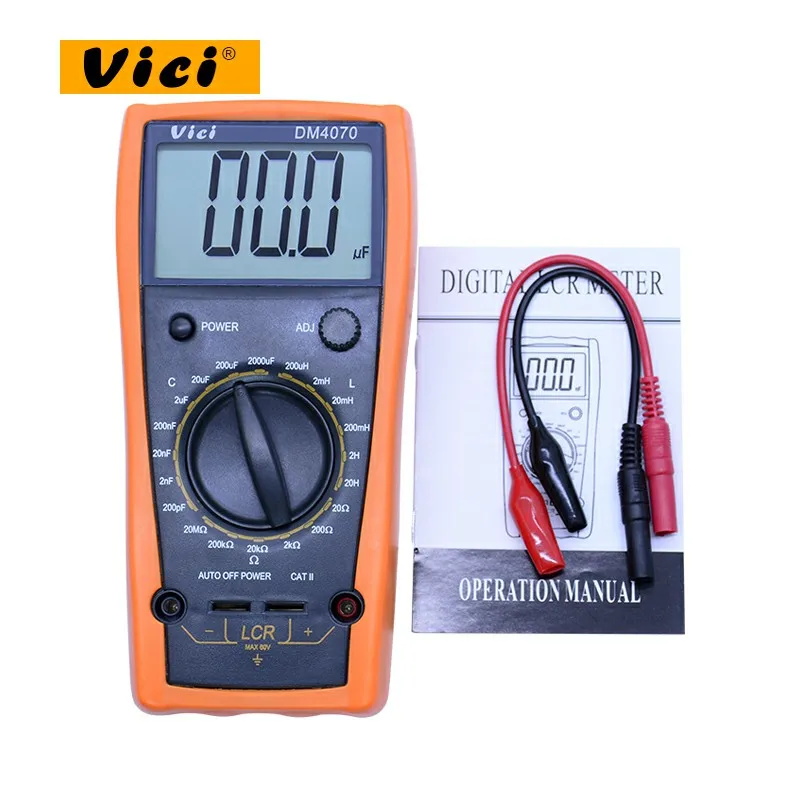

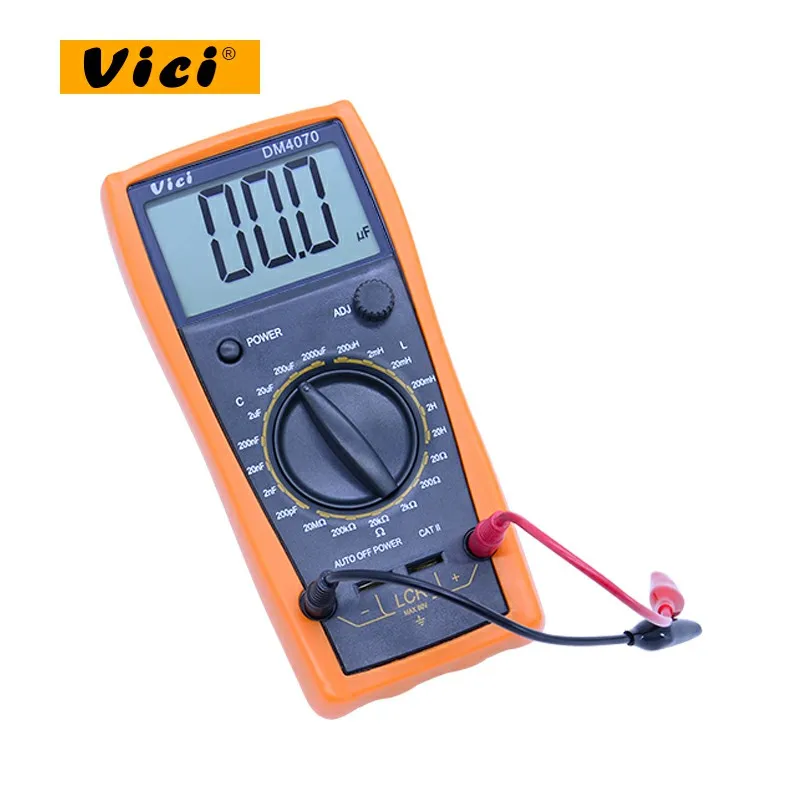

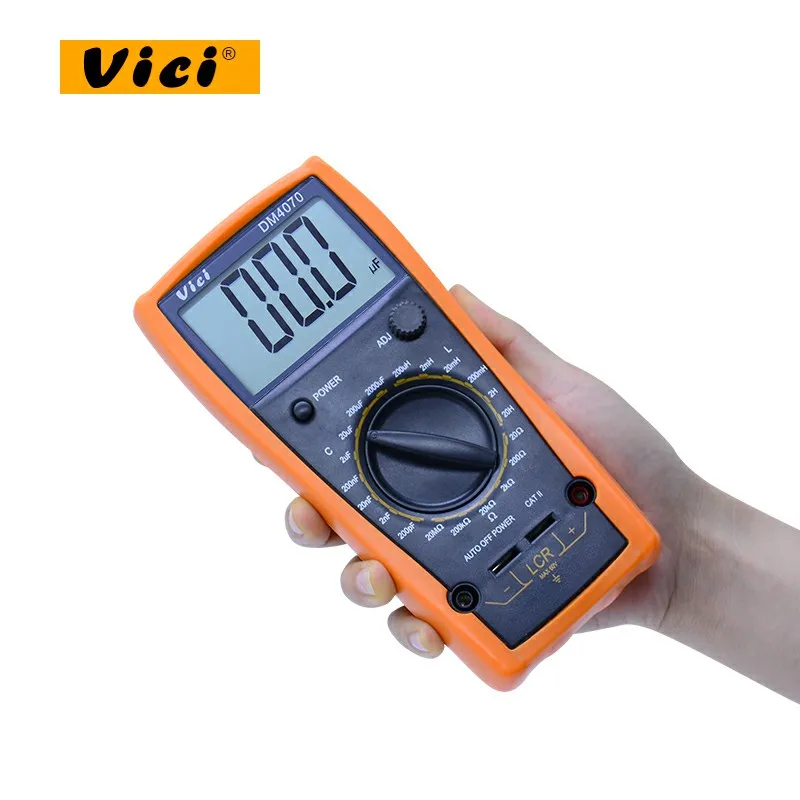

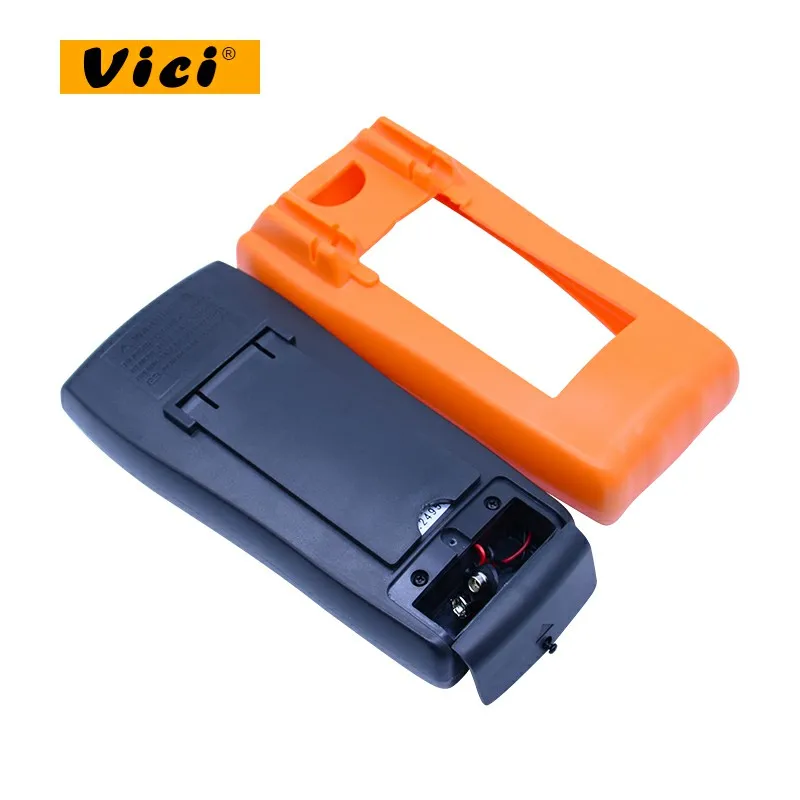

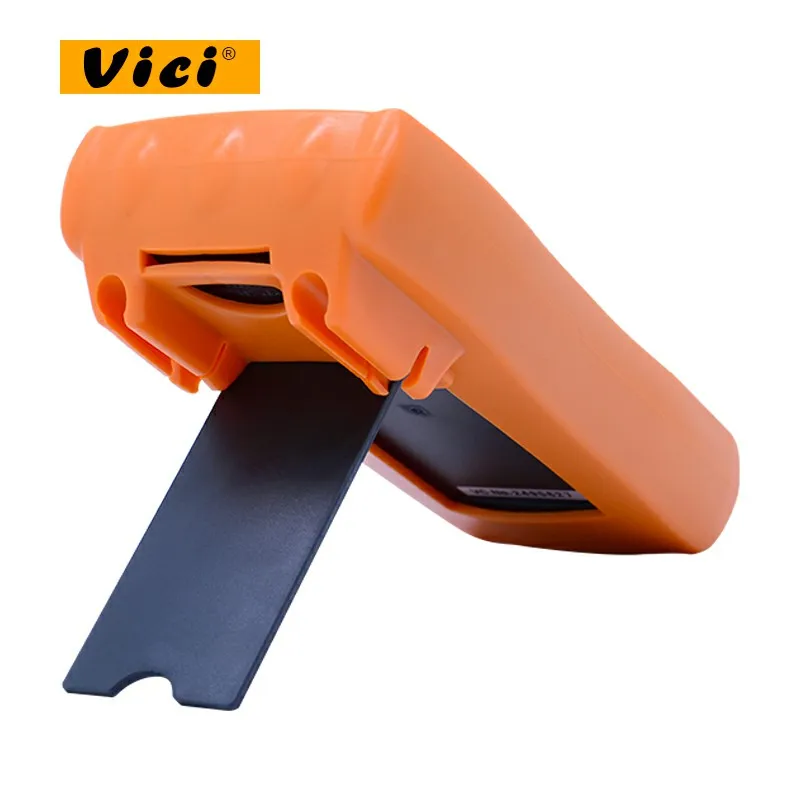

Vici DM4070 Digital LCR Meter 3 1/2 20H 2000uF 20Mohm self-discharge resistance inductance capacitance meter tester
sku: 32703570186
ACCORDING TO OUR RECORDS THIS PRODUCT IS NOT AVAILABLE NOW
$39.99
Shipping from: China
Technical Details
| AC Current: | / |
| AC Voltage: | / |
| Backlight: | YES |
| Brand Name: | VICI |
| Capacitance Measurement: | 0.1pF~2000uF |
| DC Current: | / |
| DC Voltage: | / |
| Dimensions: | 185 * 93 *35mm |
| Display Type: | Digital Display |
| DIY Supplies: | Electrical |
| Inductance measurement: | 0.1uH~20H |
| Item: | Digital LCR Meter |
| Lcd Size: | 65*41mm |
| Max display: | 1999 |
| Measuring Capacitance Range: | 200pF/2nF/20nF/200nF/2uF/20uF/200uF/2000uF/2mF +/-(0.5%+1) |
| Measuring Inductance Range: | 200uH/2mH/20mH/200mH/2H/20H |
| Measuring Resistance Range: | 20/200/2K/20K/200K/20M ohm |
| Model Number: | DM4070 |
| Operating Mode: | 0-40C |
| Operating Temperature: | 0~40C |
| Operation Way: | Manual range |
| Power: | 9V(6F22) Not include Battery |
| Resistance Measurement: | 0.01 ohm~20M ohm |
| Sampling Rate: | 3 times/s |
