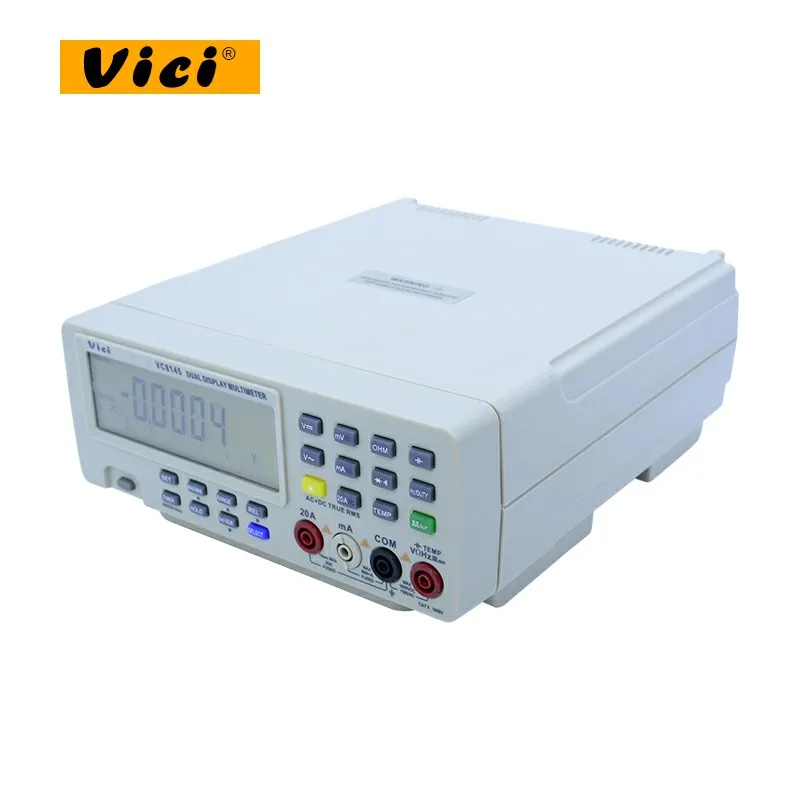

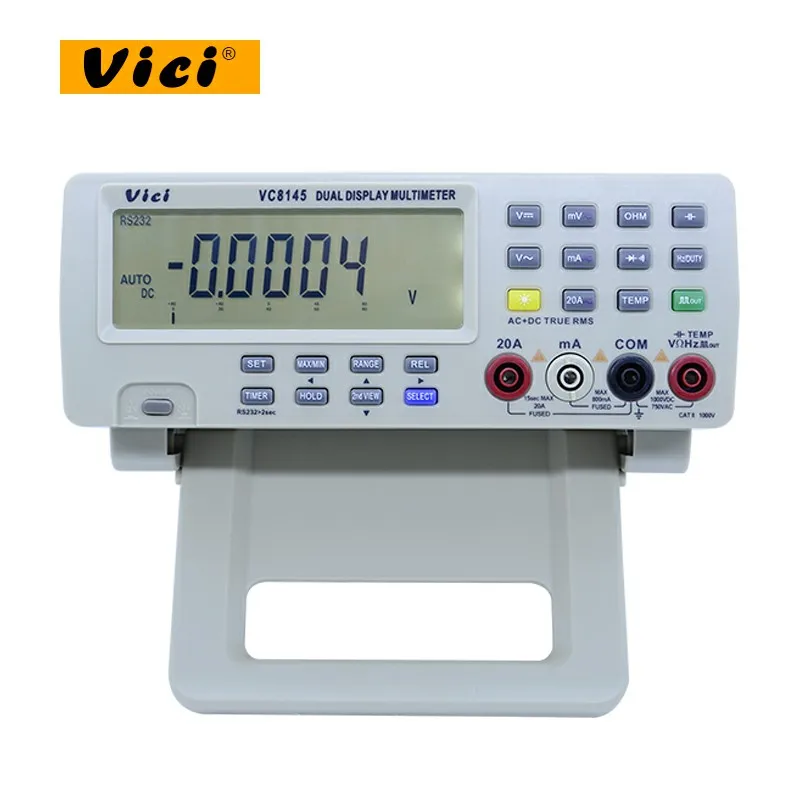

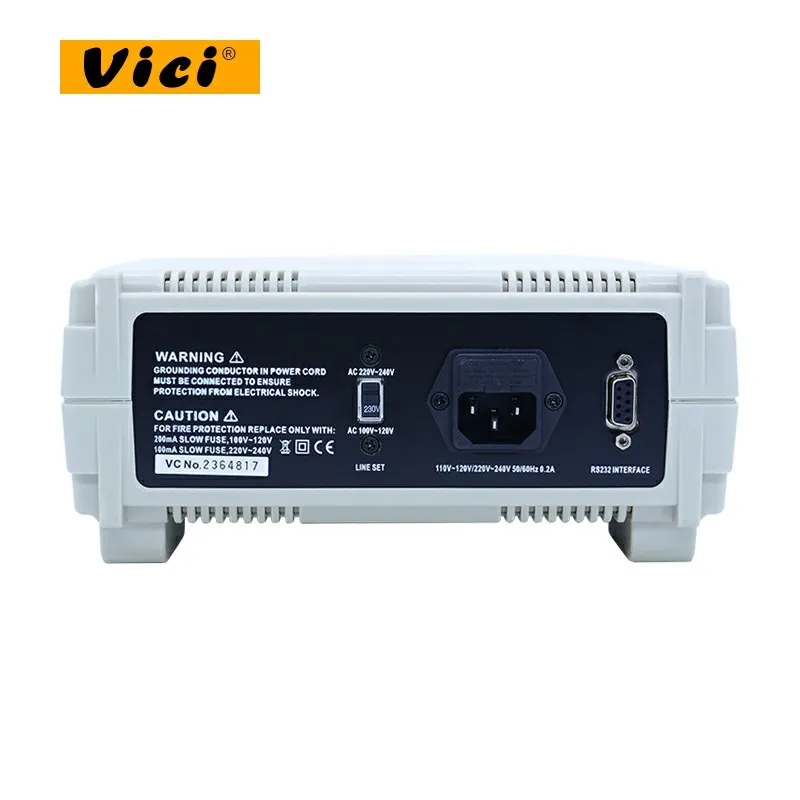

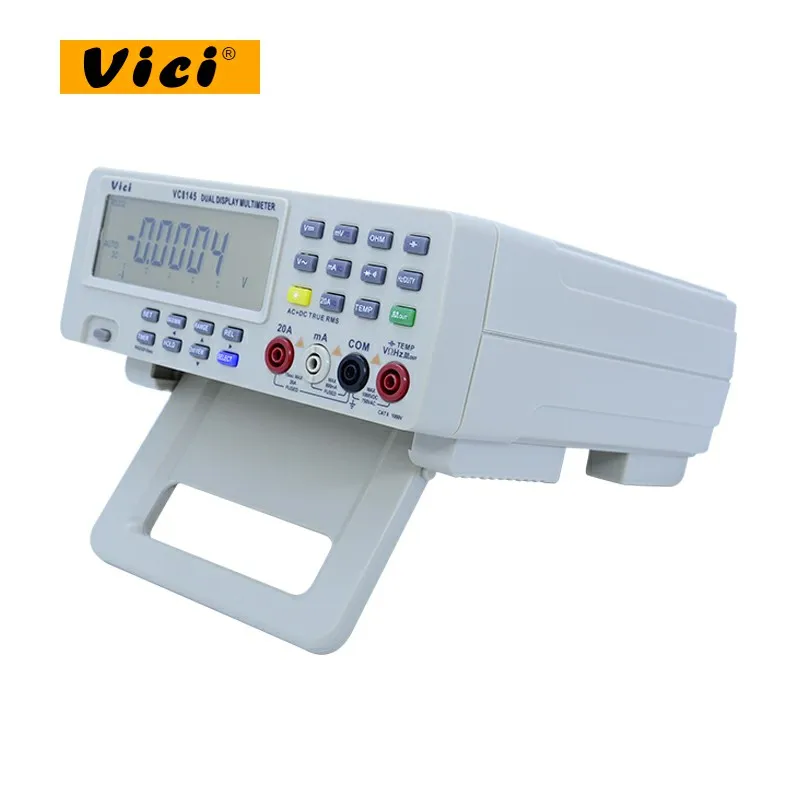

VICI VC8145 Bench Top Digital Multimeter PC Analog 80,000 counts Analog Bar Graph ACV DCV ACA DCA Hz, TEMP RS232 interface
Technical Details
| AC Current: | 80mA/800mA/8A/20A |
| AC+DC measuring: | Yes |
| AC Voltage: | 80mV/800mV/8V/80V/750V |
| Brand Name: | VICI |
| Computer interfanc: | Photoelectricity insulation RS232 |
| DC Current: | 80mA/800mA/8A/20A |
| DC Voltage: | 80mV/800mV/8V/80V/800V/1000V |
| Dimensions: | 242 x 212 x 98 mm |
| Diode: | Yes |
| Display Type: | Digital Display |
| DIY Supplies: | Electrical |
| Input Impedance: | 10Mohm |
| Item: | Multimeter Temperature Meter |
| Max display: | 80000 |
| Measuring Capacitance Range: | 10nF/100nF/1uF/10uF/100uF |
| Measuring Inductance Range: | 80Hz/800Hz/8kHz/80kHz/800kHz/8MHz/80MHz |
| Measuring Resistance Range: | 800/8k/80k/800k/8M/80Mohm |
| Model Number: | VC8145 |
| Operating Mode: | 50~1372C / -58~2502F |
| Operating Temperature: | 0~40C |
| Operation Way: | 4 times /sec |
| Overloading protection: | Yes |
| Power: | AC220V/110V |
