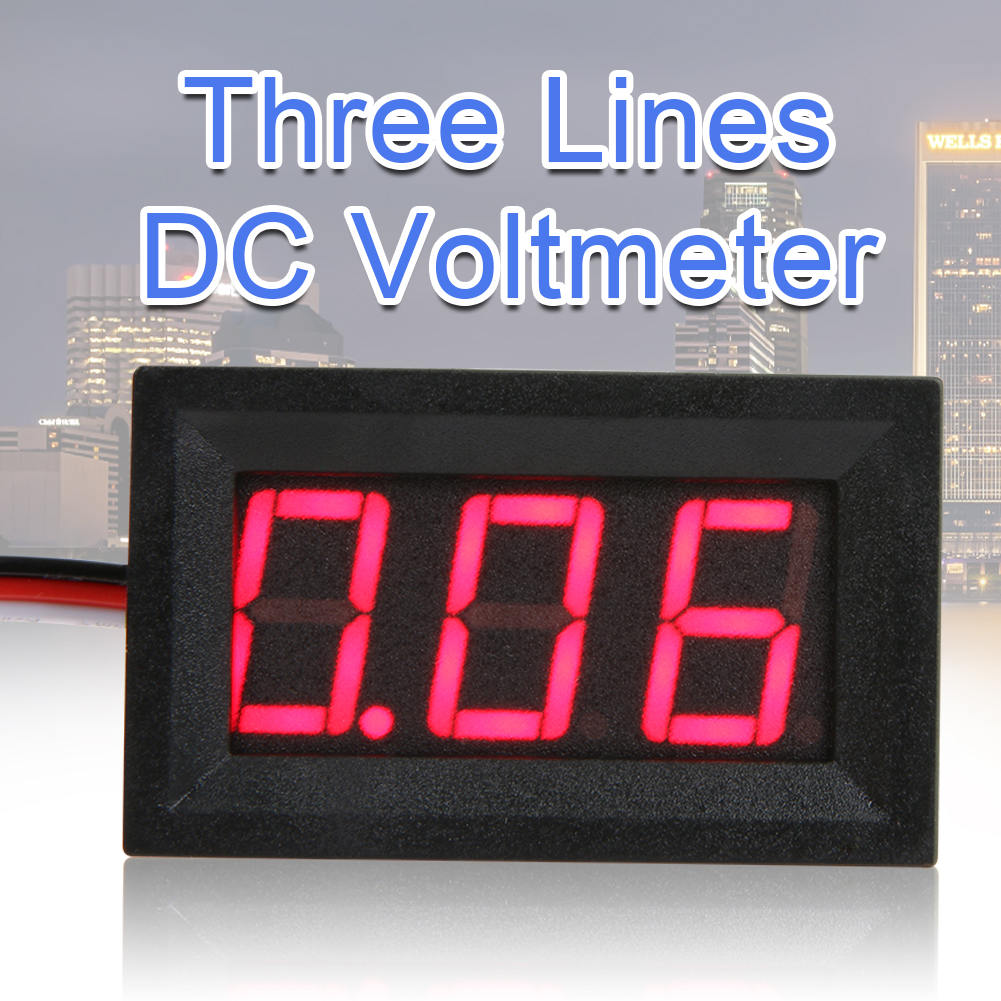

V27D 0.56inch LED Digital Voltmeter DC 0-40V Three Line Volt Meter, Red, 501 Original

Specifications:Dimensions: 48 X 29 X 22mm Measurement range: DC 0-40VOpen hole size: 46 X 27mm Maximum input: DC 50V (higher than this voltage is dangerous to burn)Wire length: 20cm Allowance error: 1% (+/-1 word)Net weight: 17g Display mode: three-position 0.56inch LED digital tubeGross weight: 19g(including package) Display color: red green blue optionalThe refresh rate: is about 200ms/timesPower supply: DC 4.5-30VCurrent Consumption: less than 20mA, usually 5-15mAWorking temperature: -10℃~65℃Product introduction:1. this voltmeter uses three-position 0.56inch LED digital tube display, no shell, thin thickness, small appearance, low price, stable performance and good display.2. The measuring range of the voltmeter can be DC 0-100V. The working power supply should be supplied by the outside, the voltage range is DC 4.5-30V, and the protection will be received.3. To ensure maximum accuracy, the display resolution of this voltmeter can be adjusted automatically. The resolution is 0.01V below 10V, and 0.1V above 10V.4. This voltmeter is not calibrated with the micro-potentiometer5. This voltmeter is suitable for users with DC power supply to save cost. Or you need to start measuring from 0VNote:1. This voltmeter is measured in a range of 0-40V, which is a measuring signal and cannot be used as a power source for the voltmeter. So this voltmeter needs to be supplied by the outside to provide a DC voltage of 4.5-30V as a power supply. In the three lines, the black line is the common negative pole, the white line is the voltage positive, the red line is connected to the positive electrode of the work supply, and the balance is negative in the table.2. The voltmeter working power supply voltage of 4.5-30V, 30V is the highest limit, please pay attention to leave the table enough allowance, avoid the spark voltage, power supply ripple or other mutations cause permanent damage to the voltmeter too high voltage.3. This voltmeter does not make moistureproof, waterproof, shockproof and anti-pollution treatment. Please pay attention when usingPackage Content:1 X Digital Voltmeter
