UNI-T UT89X/UT89XD true RMS Digital multimeter; 20A high current digital multimeter, NCV/capacitor/triode/temperature test
sku: 33010736031
ACCORDING TO OUR RECORDS THIS PRODUCT IS NOT AVAILABLE NOW
$32.99
Shipping from: China
Technical Details
| AC Current: | 60mA/600mA/20A (1.0%+12) |
| AC current frequency response: | 45~1000Hz |
| AC Voltage: | 6V/60V/600V/1000V (0.8%+5) |
| AC voltage frequency response: | 45~1000Hz |

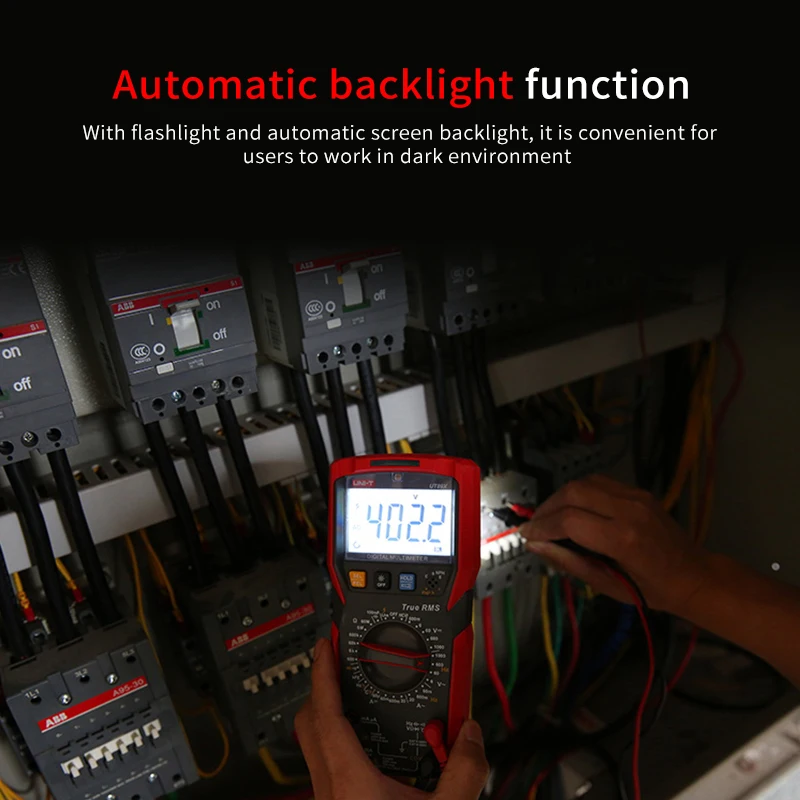

| Automatic backlight: | has |
| Auto-power off: | has |
| Battery: | 1.5V AAA*4 |
| Brand Name: | UNI-T |
| Color: | Red + gray |
| Data Hold: | has |
| DC Current: | 60uA/6mA/60mA/600mA/20A (0.8%+8) |
| DC Voltage: | 600mV/6V/60V/600V/1000V (0.5%+2) |
| Dimensions: | 189mm*89mm*53mm |
| Diode / continuity test: | has |
| Display Type: | Digital Display |
| DIY Supplies: | Electrical |
| Duty Cycle: | 0.1%~99.9% 2.0%+5 |
| Equipment weight: | 345g |
| Firewire test: | Only UT89X has |
| Flashlight: | has |
| Frequency: | 9.999Hz~9.999MHz 0.1%+4 |
| Function selection: | has |
| Humidity: | -40F ~1832F 2.0%+5 Only UT89X |
| Lcd Size: | 61mm*36mm |
| LED test: | Only UT89XD has |
| Low Battery Display: | has |
| Maximum count: | 6000 |
| Measuring Capacitance Range: | 0~100MF (2.5%+20) |
| Measuring digital conversion rate: | 3 Times/sec |
| Measuring Inductance Range: | None |
| Measuring Resistance Range: | 0~60M ohm (0.8%+3) |
| Model Number: | UT89X/UT89XD |
| Operating Mode: | Manual |
| Operating Temperature: | 0 - 50 ℃ |
| Professional NCV test: | has |
| QTY: | 32 |
| Sound and light alarm function: | Voltage / Current / Capacitance / Diode / Transistor / NCV / LED |
| Temperature: | -40C ~1000C 2.0%+4 Only UT89X |
| Transistor Test: | has |
| Ture RMS: | has |
