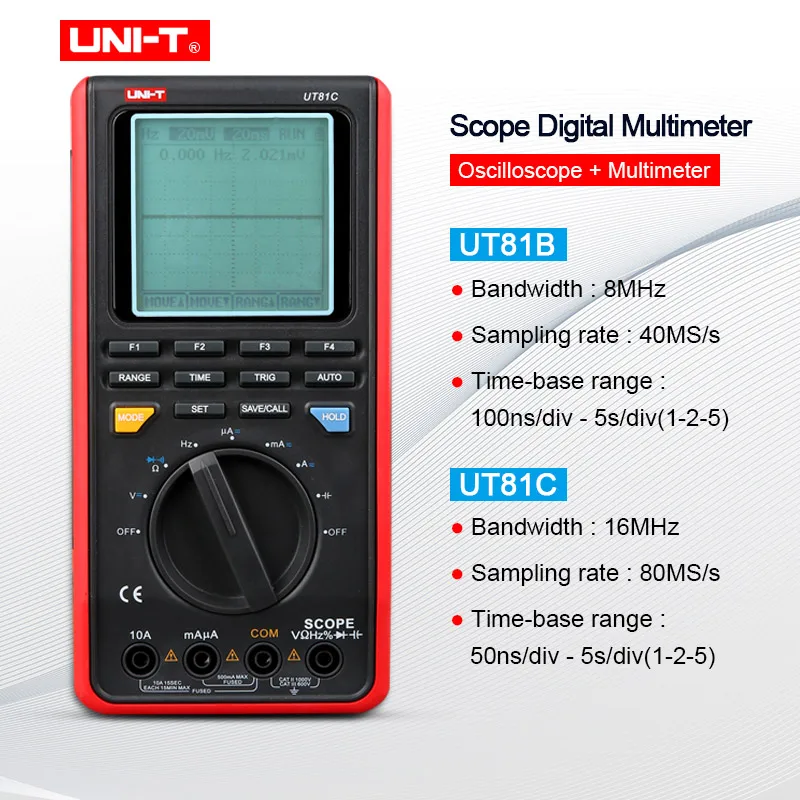

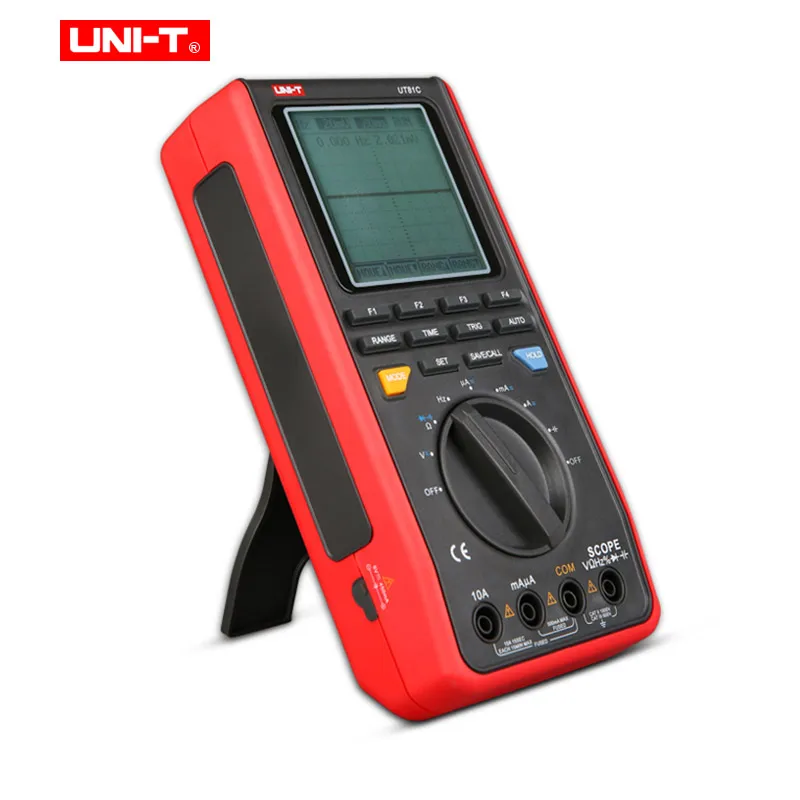

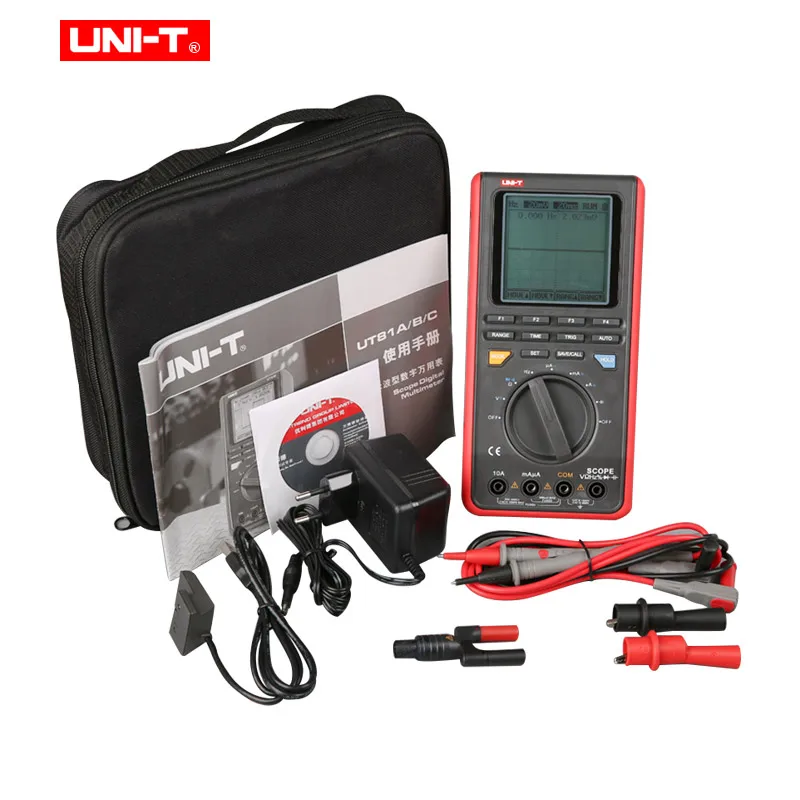

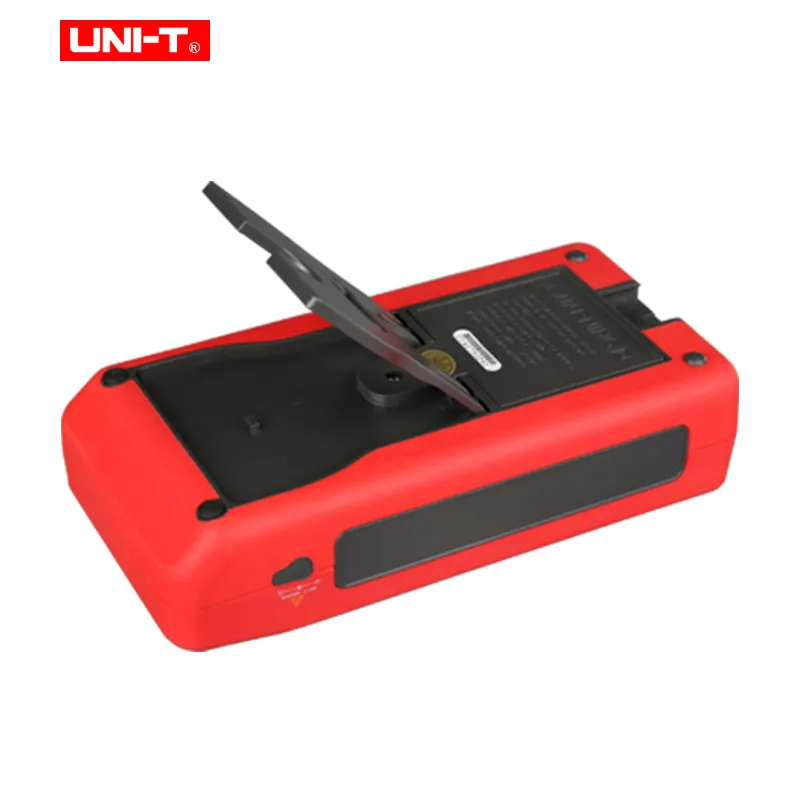

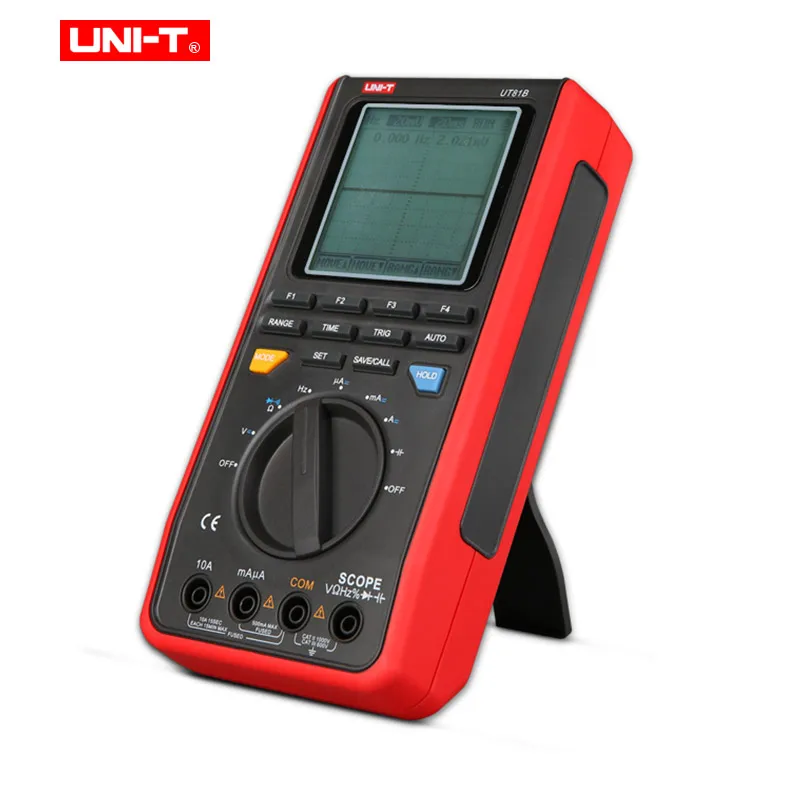

UNI-T UT81C/UT81B Scope Digital Multimeters 4000 Counts Mini Oscilloscope Input High Sensitivity Diode USB Interface PC Soft
sku: 32975549142
ACCORDING TO OUR RECORDS THIS PRODUCT IS NOT AVAILABLE NOW
$193.99
Shipping from: China
Technical Details
| AC Current: | 400uA/4000uA/40mA/400mA/4A/10A |
| AC Voltage: | 4V/40V/400V/750V |
| Brand Name: | UNI-T |
| DC Current: | 400uA/4000uA/40mA/400mA/4A/10A |
| DC Voltage: | 400mV/4V/40V/400V/1000V |
| Dimensions: | 200mm*100mm*48mm |
| Display Type: | Digital Display |
| DIY Supplies: | Electrical |
| Frequency Hz: | 10Hz-10MHz |
| Lcd Size: | 60mm*60mm |
| Measuring Capacitance Range: | 40nF/400nF/4uF/40uF/100uF |
| Measuring Inductance Range: | none |
| Measuring Resistance Range: | 400Ω/4KΩ/40KΩ/400KΩ/4MΩ/40MΩ |
| Model Number: | UT81B UT81C |
| Operating Mode: | Auto range |
| Operating Temperature: | 0 - 50 ℃ |
| Power Supply: | 1.5V AA battery 4pcs |
| Real-time bandwidth: | 81B:8MHz 81C:16MHz |
| Sampling Rate: | 81B:40MS/s 81C:80MS/s |
