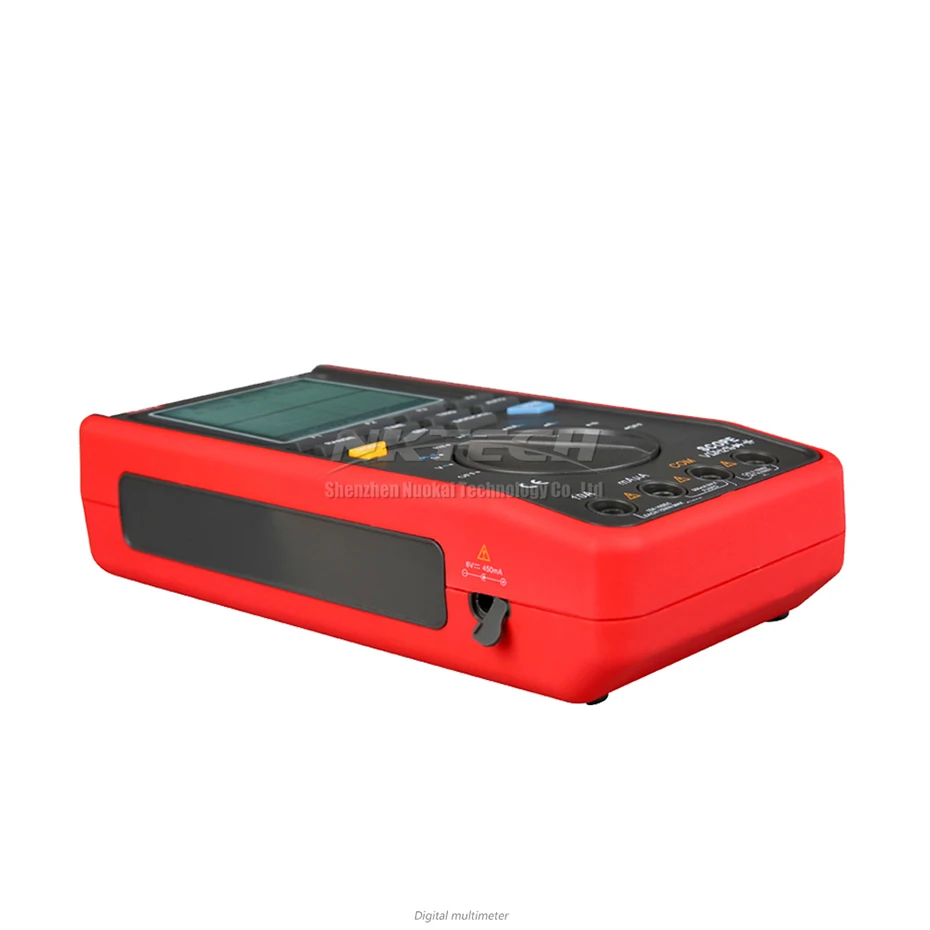

UNI-T UT81C UT81B Digital Scopemeter Oscilloscope Wave Multimeter Handheld AC DC Volt Amp Resistance Capacitance Frequency Meter

UNI-T UT81C UT81B Digital Scopemeter Oscilloscope Wave Multimeter Handheld AC DC Volt Amp Resistance Capacitance Frequency Meter
thumb
thumb
thumb
thumb
thumb
thumb
sku: 32905258243
ACCORDING TO OUR RECORDS THIS PRODUCT IS NOT AVAILABLE NOW
$281.90
Shipping from: China
   Technical Details
AC Current: 400uA/4000uA/40mA/400mA/4A/10A
AC Voltage: 4V/40V/400V/750V
Bandwidth: 8MHz (UT81B), 16MHz (UT81C)
Brand Name: UNI-T
DC Current: 400uA/4000uA/40mA/400mA/4A/10A
DC Voltage: 400mV/4V/40V/400V/1000V
Dimensions: 200mm x 100mm x 48mm
Display: 4000 counts 160 x 160 Monochrome
Display Type: Digital Display
DIY Supplies: Electrical
Duty Cycle: 0.1% to 99.9%
Functions: MAX/MIN, Data Hold, Diode Test
Measuring Capacitance Range: 40nF/400nF/4uF/40uF/100uF
Measuring Inductance Range: None
Measuring Resistance Range: 400/4K/40K/400K/4M/40M
Model Number: UT81B/UT81C
Operating Mode: Auto-range
Operating Temperature: 0 - 50 ℃
Real-time Sample Rate: 40MS/s (UT81B), 80MS/s (UT81C)
USB Interface: Yes
