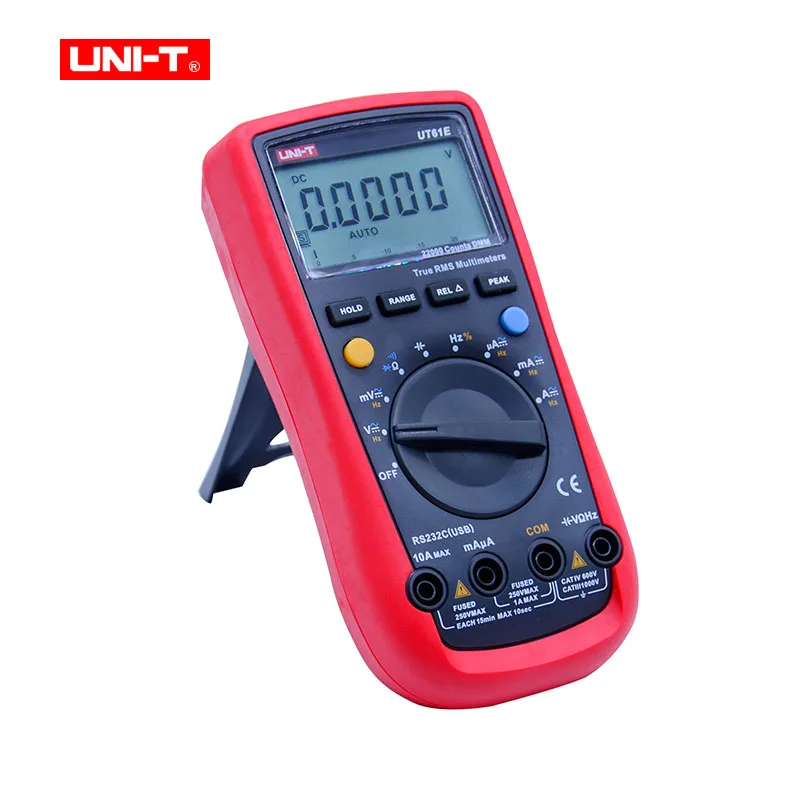

UNI-T UT61A UT61B UT61C UT61D UT61E Digital Multimeter true rms AC DC Meter Software CD & Data Hold Multitester+Gift
Technical Details
| Bandwidth: | 45~400Hz(UT61A/B)/1KHz(UT61C)/3KHz(UT61D)/10KHz(UT61E) |
| Brand Name: | UNI-T |
| Data Hold: | Yes(All models) |
| Dimensions: | 180mm X 87mm X 47 mm |
| Diode test: | Yes(All models) |
| Display Type: | Digital Display |
| DIY Supplies: | Electrical |
| hFE function: | UT61A only |
| Item: | UNI-T digital multimeter UT61 series |
| LCD Backlight: | Except UT61E |
| MAX/MIN: | Yes(All models) |
| Measuring Capacitance Range: | 22nF/220nF/2.2uF/22uF/220uF/2.2mF/22mF/220mF(UT61E) |
| Measuring Current Range: | 200uA/2200uA/22mA/220mA/2.2A/10A(UT61E) |
| Measuring Inductance Range: | Normal |
| Measuring Resistance Range: | 220ohm/2.2Kohm/22Kohm/220Kohm/2.2Mohm/22Mohm/220Mohm(UT61E) |
| Measuring Voltage Range: | DC 220mV/2.2V/22V/220V/1000V(UT61E) |
| Model Number: | UT61A/B/C/D/E |
| Operating Mode: | A/M |
| Operating Temperature: | 0 - 40 ℃ |
| True RMS: | UT61D/UT61E only |
