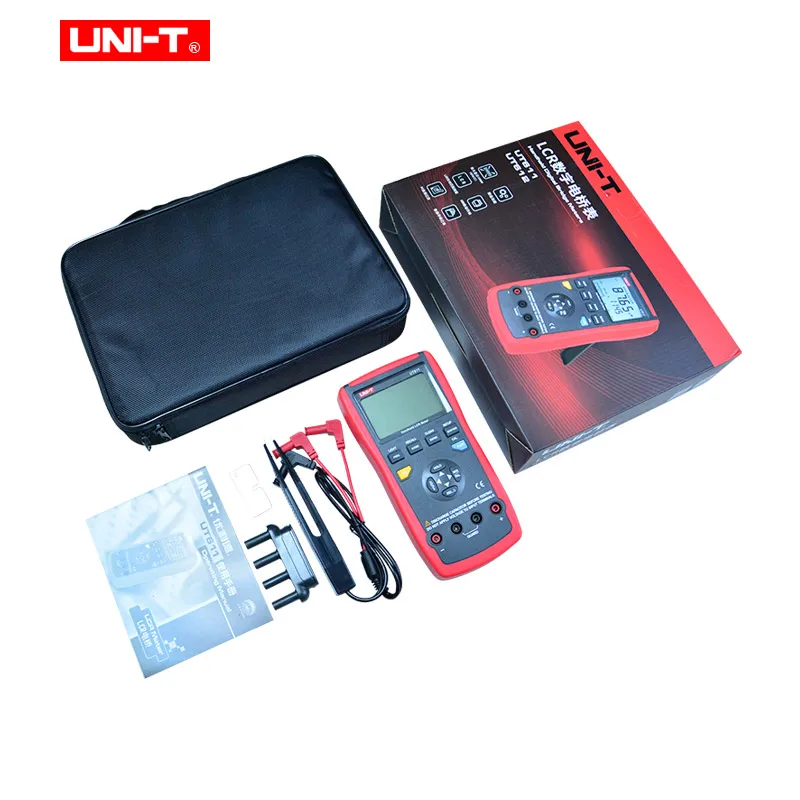

UNI-T UT611 UT612 Digital LCR Meter Inductance Capacitance Resistance Meter Data Hold LCD Backlight Display Portable EVA Bag
Technical Details
| Auto Range: | Yes |
| Brand Name: | UNI-T |
| Dimensions: | 96 * 193 * 47mm |
| Display Type: | Digital Display |
| DIY Supplies: | Electrical |
| D/Q Resolution: | 0.001 |
| Item: | UNI-T LCR Meter |
| Measuring Capacitance Range: | 600pF~10mF/200pF~20mF+/-(0.5%+5) |
| Measuring Inductance Range: | 600uH~200H/20uH~2000H |
| Measuring Resistance Range: | 60~20Mohm+/-(0.5%+5)/20~200Mohm+/-(0.3%+5) |
| Model Number: | UT611/UT612 |
| Operating Mode: | Digital LCR tester |
| Operating Temperature: | 0 - 40 ℃ |
| Operational voltage: | 0.5Vrms/0.6Vrms |
| Test Frequency Hz: | 100Hz/120Hz/1kHz/10kHz(UT611) 100KH(UT612) |
| Test Parameters: | L/C/R/DCR/Q/D/ESR/Theta |
