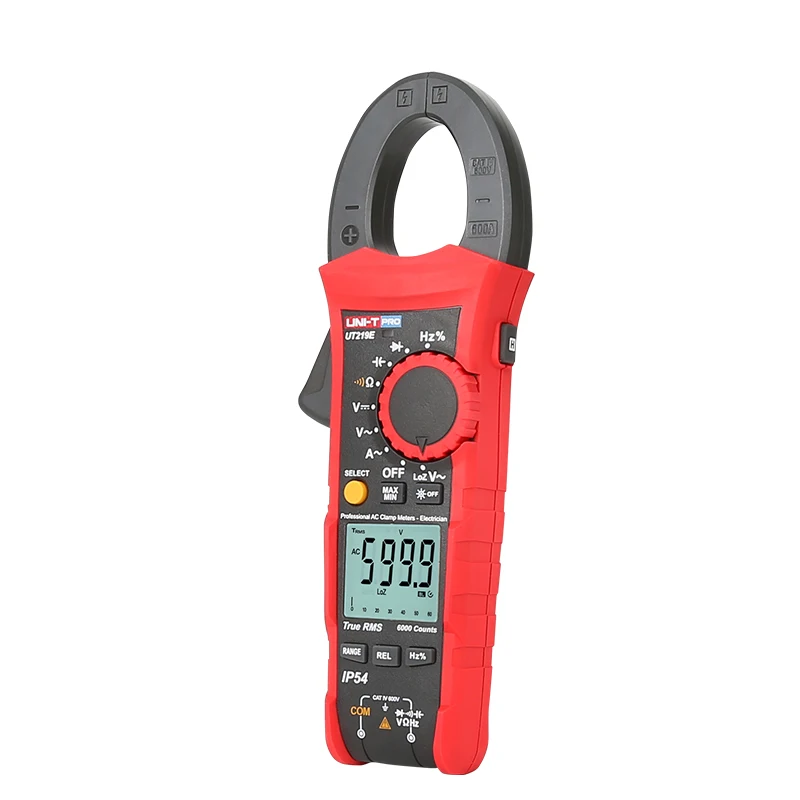

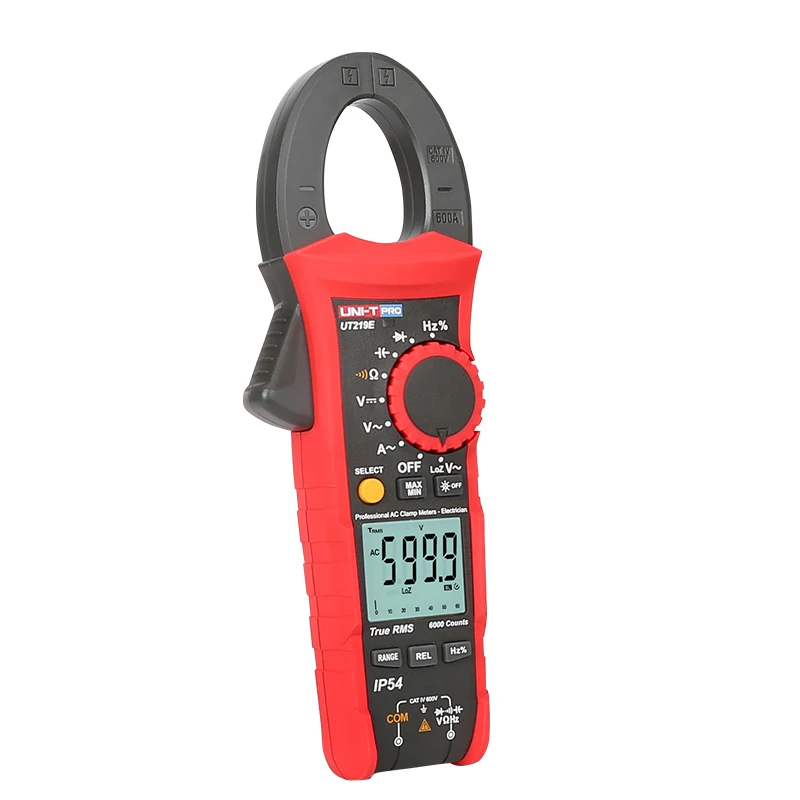

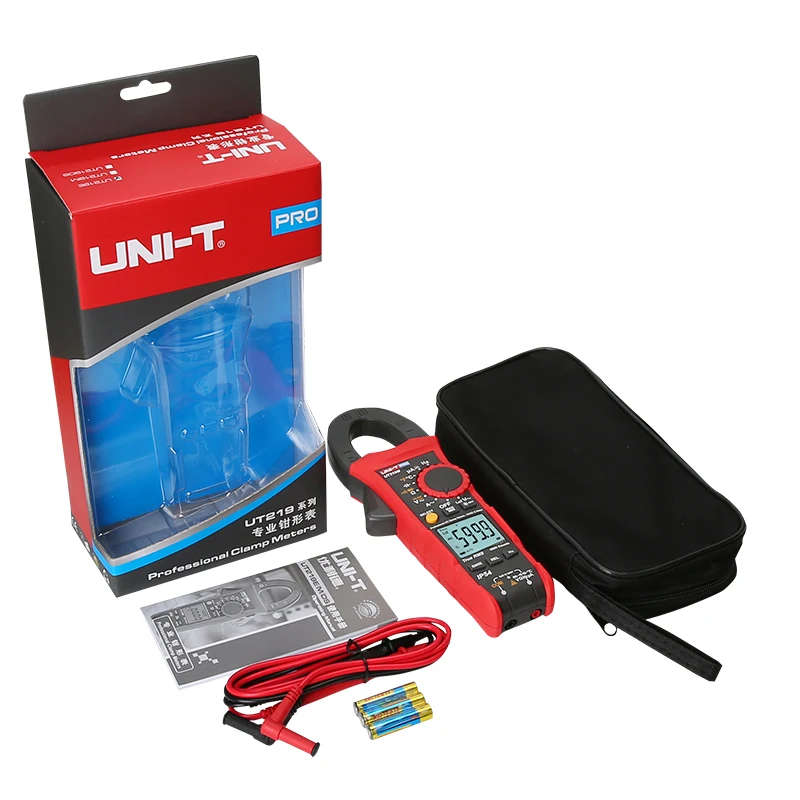

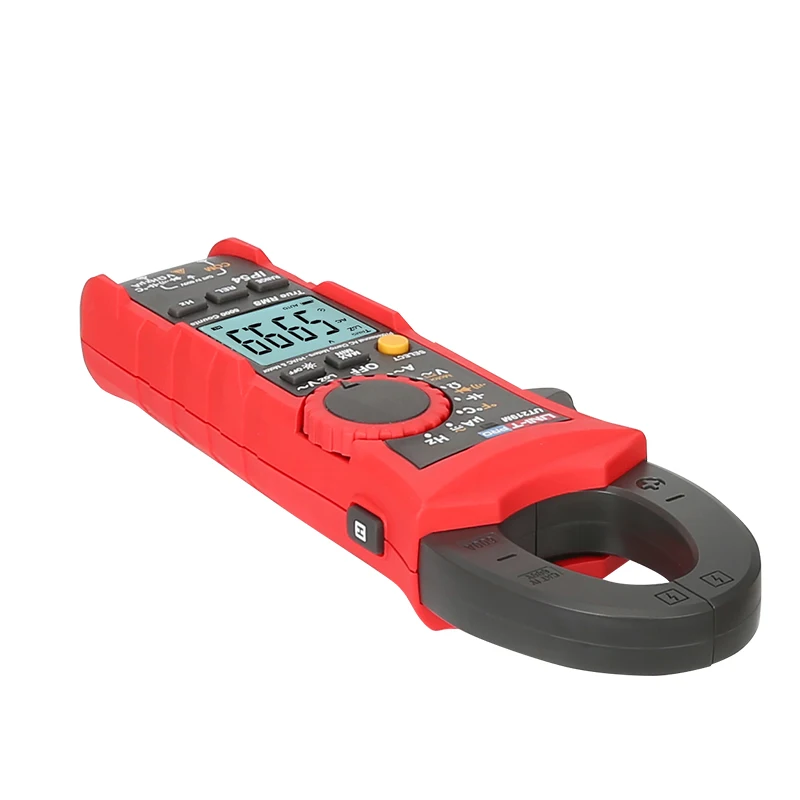

UNI-T UT219E UT219M UT219DS Digital Clamp Meter True RMS IP54 dust/waterproof ammeter LoZ ACV test AC/DC Volt ACA Freq Temp
sku: 33015994952
ACCORDING TO OUR RECORDS THIS PRODUCT IS NOT AVAILABLE NOW
$119.99
Shipping from: China
Technical Details
| AC current frequency response: | 40Hz~400Hz |
| AC voltage frequency response: | 40Hz~400Hz |
| Analog bar 31 segment: | UT219E/UT219DS only |
| Analog bar sampling rate: | UT219E/UT219DS only |
| Brand Name: | UNI-T |
| Dimensions: | 235mm x 83mm x 47mm |
| Diode test: | 3V |
| Display Type: | Digital Only |
| DIY Supplies: | Electrical |
| Frequency Hz: | 10Hz~10MHz |
| Low pass filter: | 1kHz, 3db attenuation (UT219DS only) |
| Measurement sampling rate: | 3 times/s |
| Measuring Capacitance Range: | 60nF-60mF |
| Measuring Current Range: | AC 60.00A~600.0A |
| Measuring Inductance Range: | None |
| Measuring Resistance Range: | 600-60M Ohm |
| Measuring Voltage Range: | 6V-600V (ACV), 600mV-600V (DCV) |
| Model Number: | UT219 |
| Operating Temperature: | 0 - 50 Degree Celsius |
| phase motor sequence test: | 600V (UT219M/UT219DS only) |
| Temperature: | -40~1000C (UT219M/UT219DS only) |
| V+A displays at the same time: | UT219DS only |
| Weight: | about 338g |
