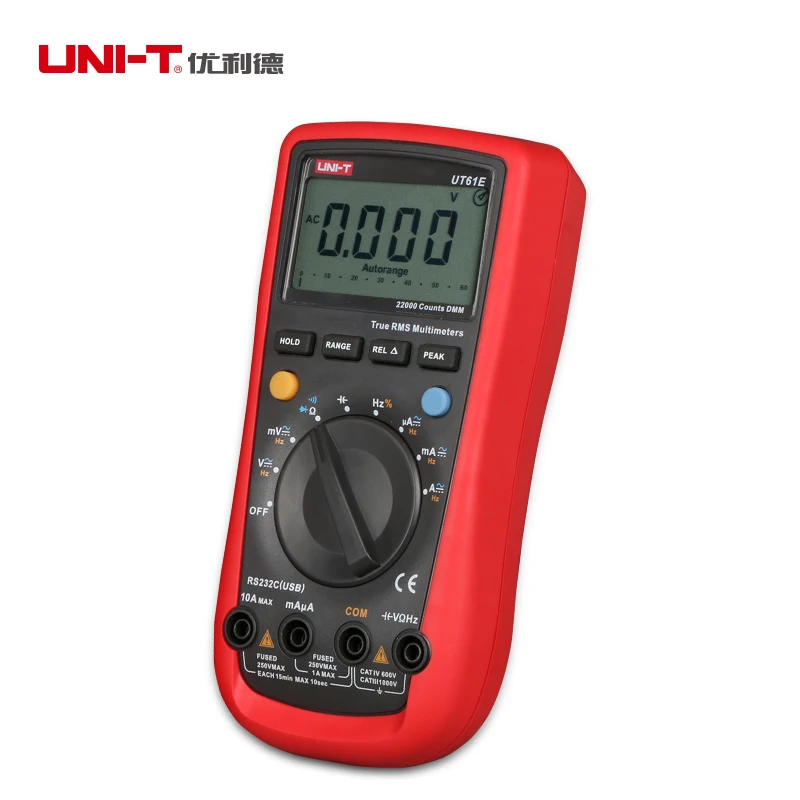

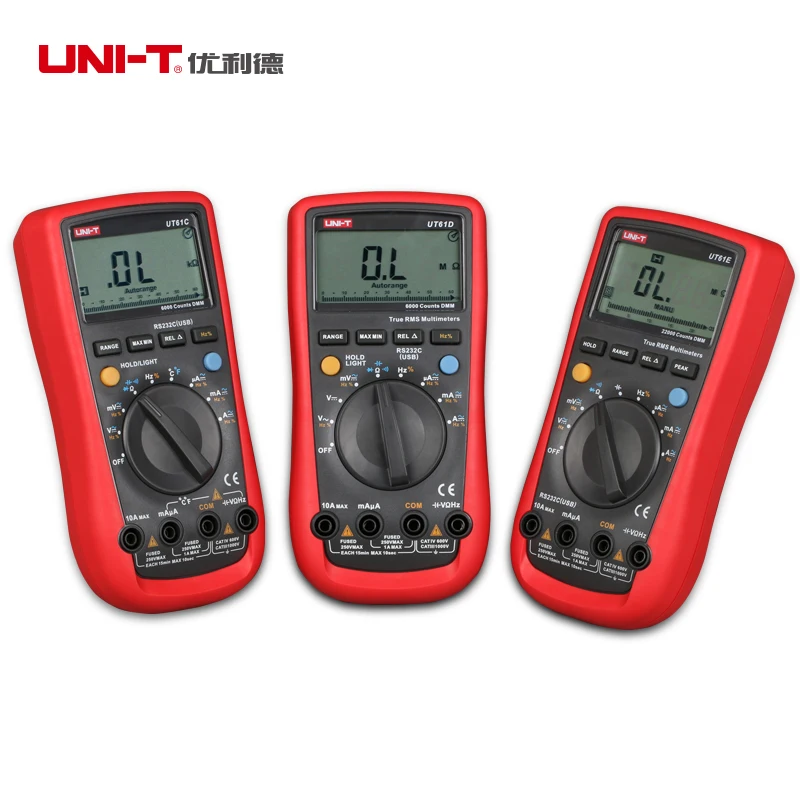

UNI-T Multimeters UT61A UT61B UT61C UT61D UT61E TRUE RMS RS232 Digital REL AC/DC MULTIMETER Auto range MAX/MIN Diode Tester
sku: 32997597413
ACCORDING TO OUR RECORDS THIS PRODUCT IS NOT AVAILABLE NOW
$48.00
Shipping from: China
Technical Details
| AC Current: | 400uA/4000uA/40mA/400mA/4A/10A |
| AC Voltage: | 40mV/400mV/4V/40V/400V/750V |
| Bandwidth: | 45~400Hz(UT61A/B)/1KHz(UT61C)/3KHz(UT61D)/10KHz(UT61E) |
| Brand Name: | UNI-T |
| DC Current: | 400uA/4000uA/40mA/400mA/4A/10A |
| DC Voltage: | 40mV/400mV/4V/40V/400V/1000V |
| Dimensions: | 180 x 87 x 47mm |
| Diode test: | Yes |
| Display Type: | Digital Display |
| DIY Supplies: | Electrical |
| MAX/MIN: | Yes |
| Measuring Capacitance Range: | 22nF/220nF/2.2uF/22uF/220uF/2.2mF/22mF/220mF(UT61E) |
| Measuring Current Range: | 200uA/2200uA/22mA/220mA/2.2A/10A(UT61E) |
| Measuring Inductance Range: | Normal Range |
| Measuring Resistance Range: | 220ohm/2.2Kohm/22Kohm/220Kohm/2.2Mohm/22Mohm/220Mohm(UT61E) |
| Measuring Voltage Range: | DC 220mV/2.2V/22V/220V/1000V(UT61E) |

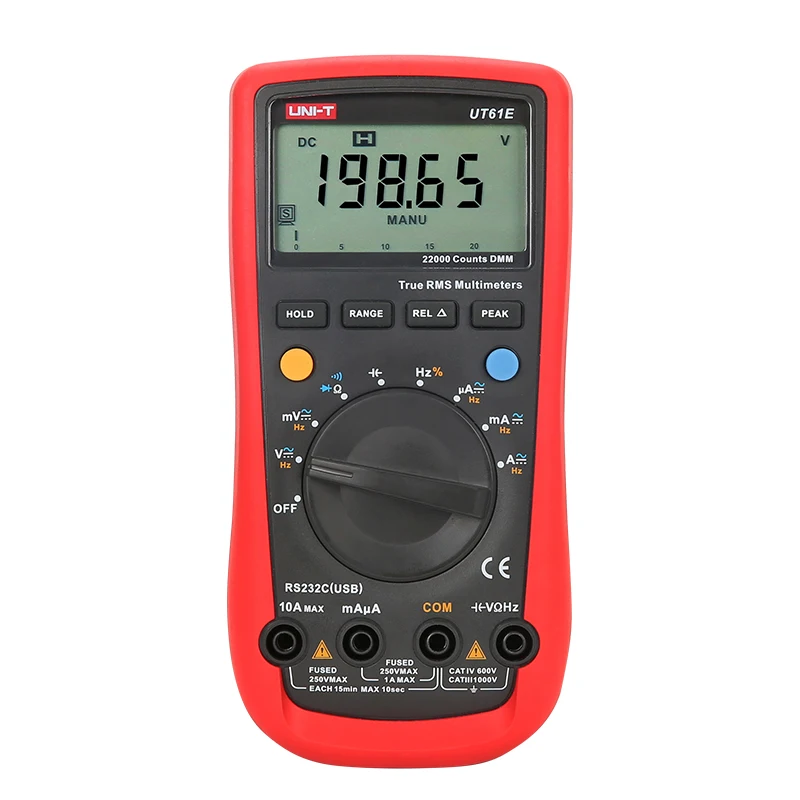

| Model Number: | UT61E |
| Operating Mode: | A/M |
| Operating Temperature: | 0 - 40 ℃ |
| Temperature Test: | -40C to 1000C (UT139C/UT139E/UT139S) |
