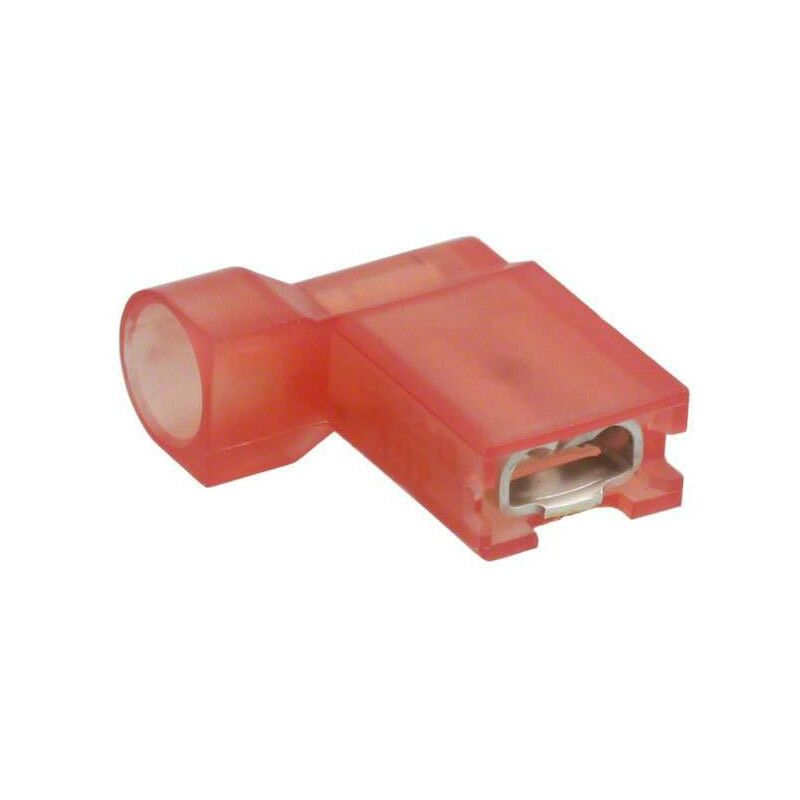

Terminal de cable Femenino 4,8x0,5 Preaislado Rojo Bandera

Código ErreBi: 23049 Código productor: 2-520334-2 Productor: TE/Connectivity Embalaje: 3 piezas Nota: Cantidad 1 corresponde a 3 piezas Product Type Features Applies To: Wire/Cable Wire Stop: No Disconnect Type: Quick Connect Insertion Force: Low FASTON: Yes Wire/Cable Composition: Stranded Wire/Cable Type: Discrete Wire Insulated: Yes Insulated Wire Support: Yes Support Style: Insulation Support Configuration Features Paired: No Stud Hole: No Terminal Angle: 90° Electrical Characteristics Voltage (Max)(V): 600 Body Features Plating Material: Brass, Tin Fully Insulated: Yes Contact Features Terminal Type: Receptacle Terminal Orientation: Flag Contact Plating Material: Tin Termination Features Crimp Type: F-Crimp Mechanical Attachment Mating Retention Type: Dimple Dimensions Mating Tab Width: 4.75 mm [ .187 in ] Mating Tab Thickness: .51 mm [ .02 in ] Wire Insulation Diameter (Max): 4.19 mm [ .165 in ] Wire Insulation Diameter: 4.19 mm [ .165 in ] Wire Size (AWG:) 22 – 18 Wire Size
