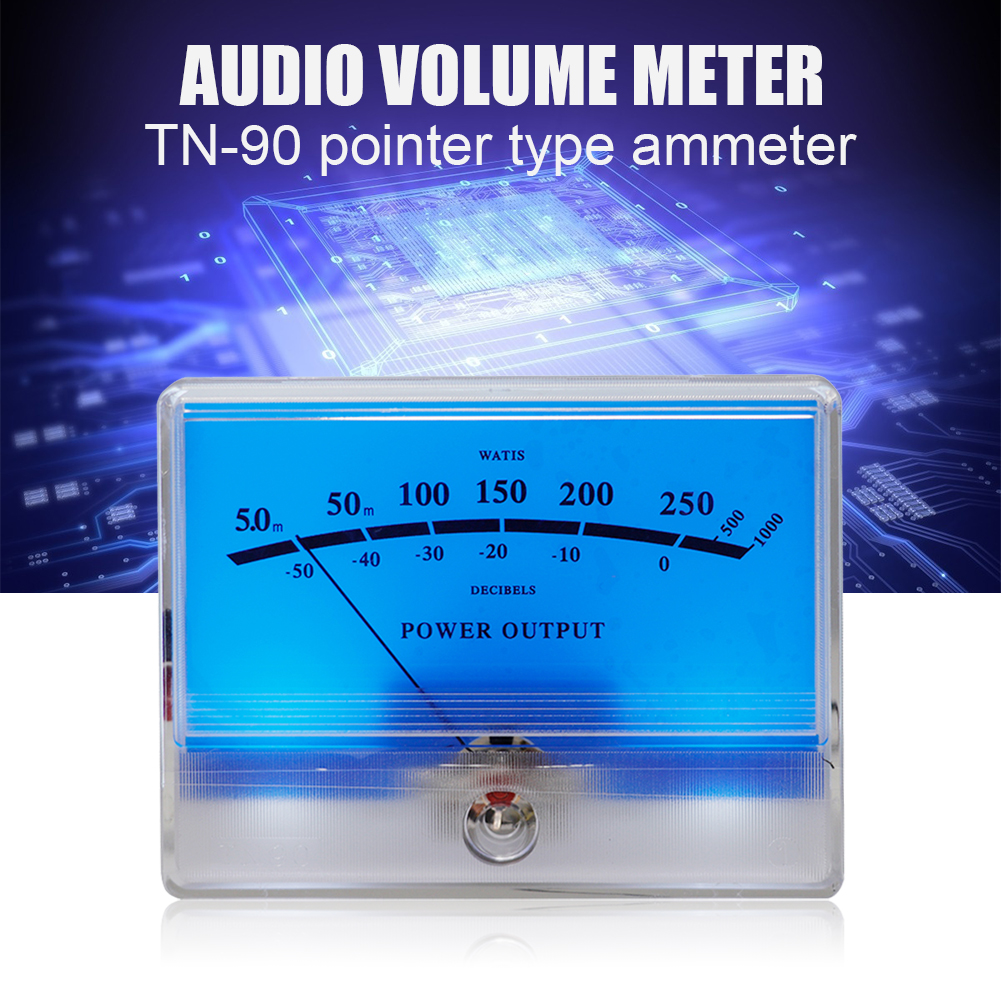

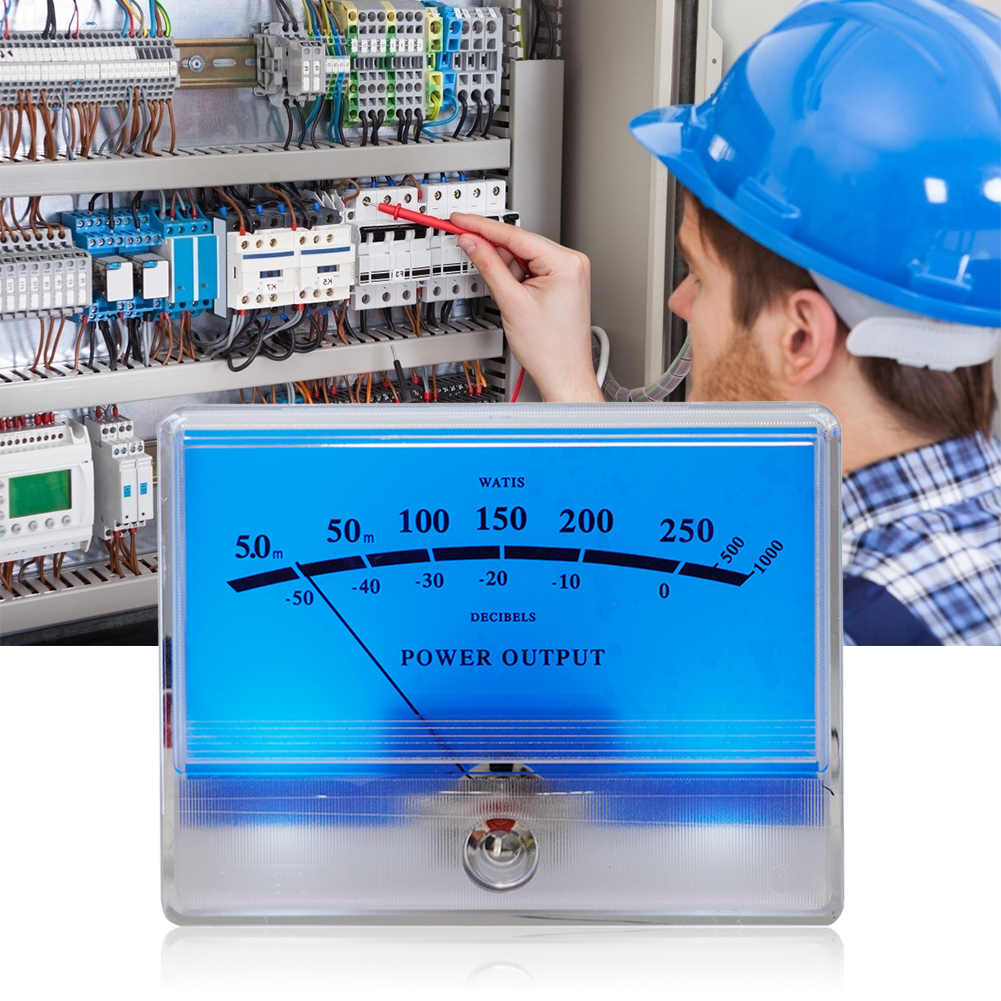

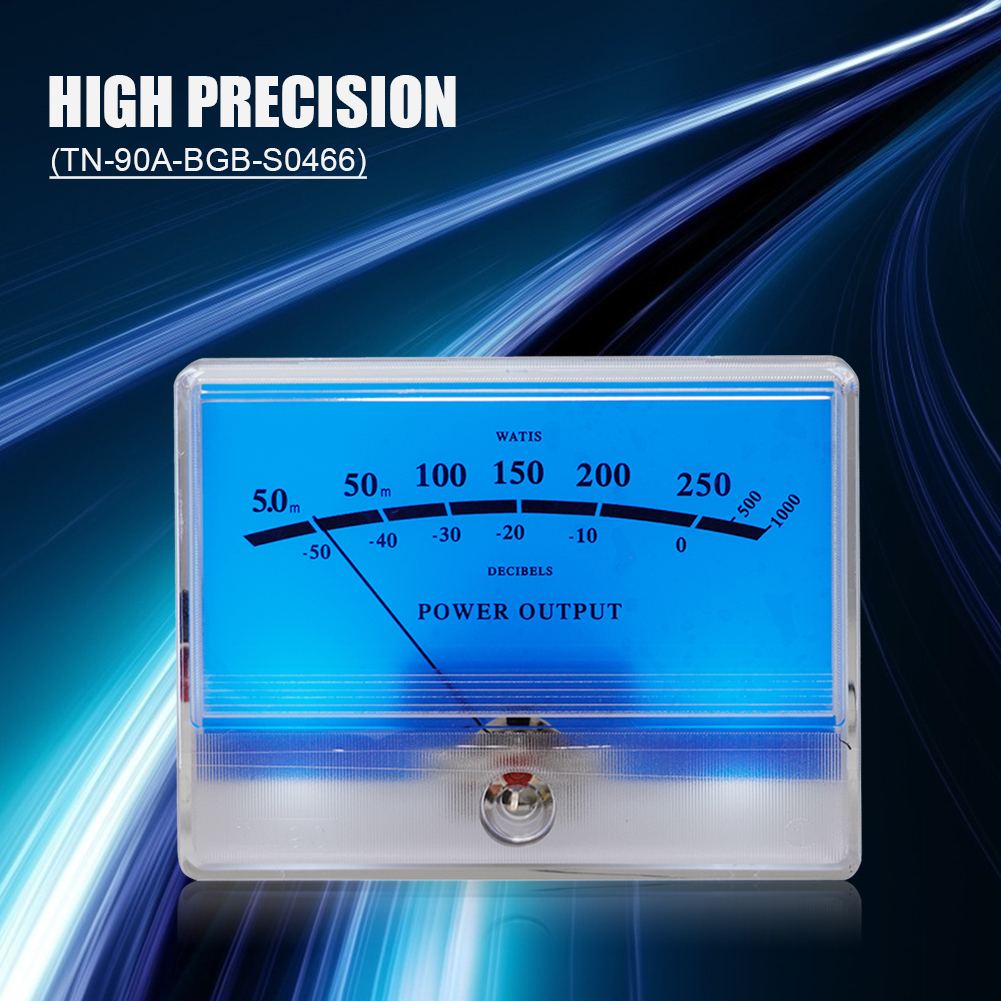

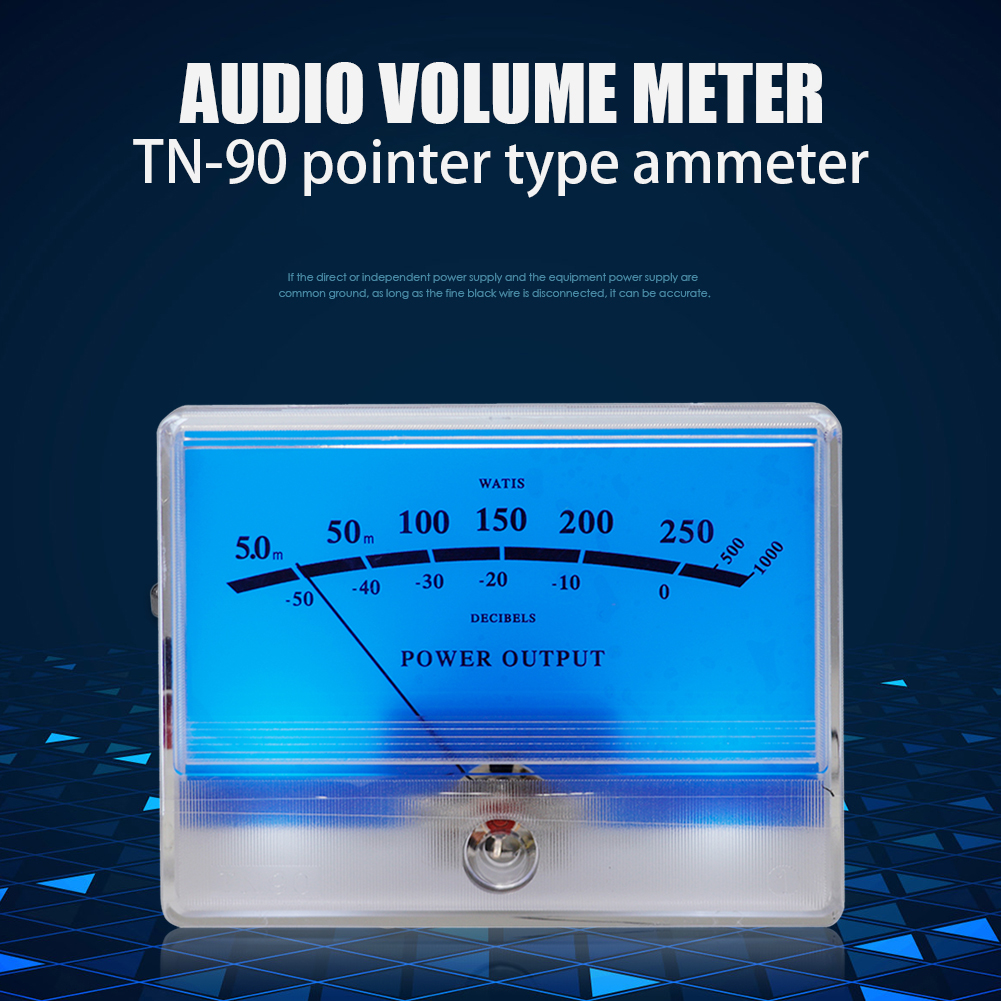

TN-90 Pointer VU Meter DB Sound Pressure w/Backlight Power Amplifier Board, 501 Original

TN-90 Pointer VU Meter Head Table Pre-stage Tube Amplifier DB Sound Pressure with Backlight Power Amplifier BoardSpecification:Pointer swing direction: from left to rightNeedle length: 44 ± 1 mm from the center line to the end of the needlePointer width: 0.45 ± 0.05 mmUse direction of meter: verticalMaterial: ABS + PCSize: 90 * 70 * 35mm/3.54*2.75*1.37\\'\\'Electrical performance:Standard test conditions: temperature 20 ℃, humidity 70%, if there is no difference in the test results, you can also test under normal temperature and humidity.Current sensitivity: the scale range of the pointer is from zero to the maximum scale (full scale position), and the sensitivity is 960ua ± 8%.Internal impedance: 650 Ω ± 10%.Insulation resistance: 500V DC of case and circuit plus 50m ohm or higher.Zero position: use the default position of the instrument. The point where the front end of the pointer coincides with the center of the zero scale is the reference pointer and zero overlap scale. The tolerance is ± 1 mm.Balance: when the default position is tilted forward and backward by 90 degrees, the allowable error range of the instrument is ± 1 mm.Pointer sticking: when the full scale current instantly triples the over-current and slowly reduces the current reading sensitivity from 1 / 2, the pointer will return to 1 / 3 of the scale.Friction: when the current is applied to the instrument and slowly increases or decreases to a certain value, the error range of the indication point is ± 1 mm.Other:Operating temperature range: - 10 ℃ to + 60 ℃ RH 35 to 85%Storage temperature limit: - 20 ℃ to + 60 ℃ RH 35 to 85%Do not place the instrument in direct sunlight, and store the instrument in the package to avoid entering the instrument.The welding conditions place the terminals in a tinplate of about 3 mm at 230 ° C for 3.5 seconds and remain normal after this test.Soldering temperature: keep the soldering iron temperature at 350 ℃, contact with the terminal for 3.5 seconds, and contact the front end of the terminal with the soldering iron about 3 mm. The test remained normal.Anti static: test the dry nylon cloth on the surface of the transparent cover plate in the same direction for three times. The difference between the pointers on the score is less than 1 / 3 of the length of the scale, and the position returns to zero three seconds after returning to zero.Note: Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!Please allow 1-2cm measuring deviation due to manual measurement.Package Content:1 X Pointer VU Meter
