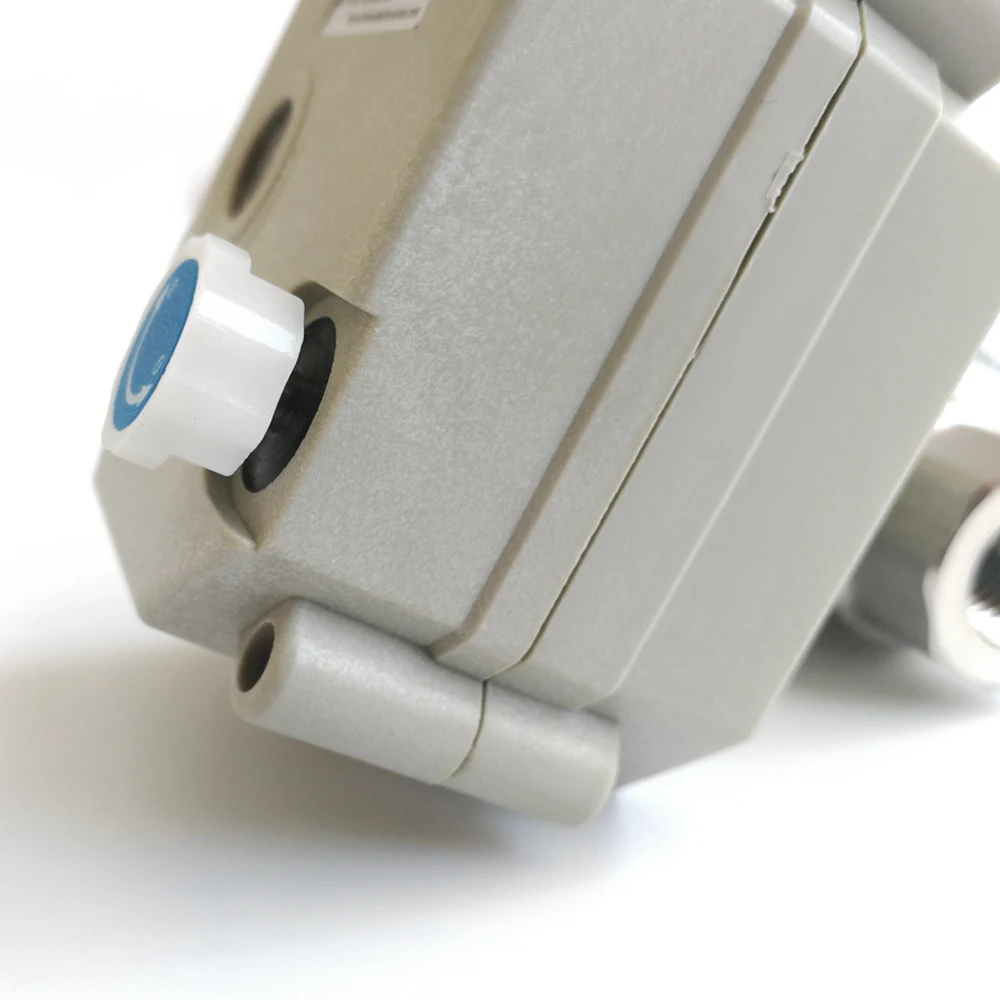

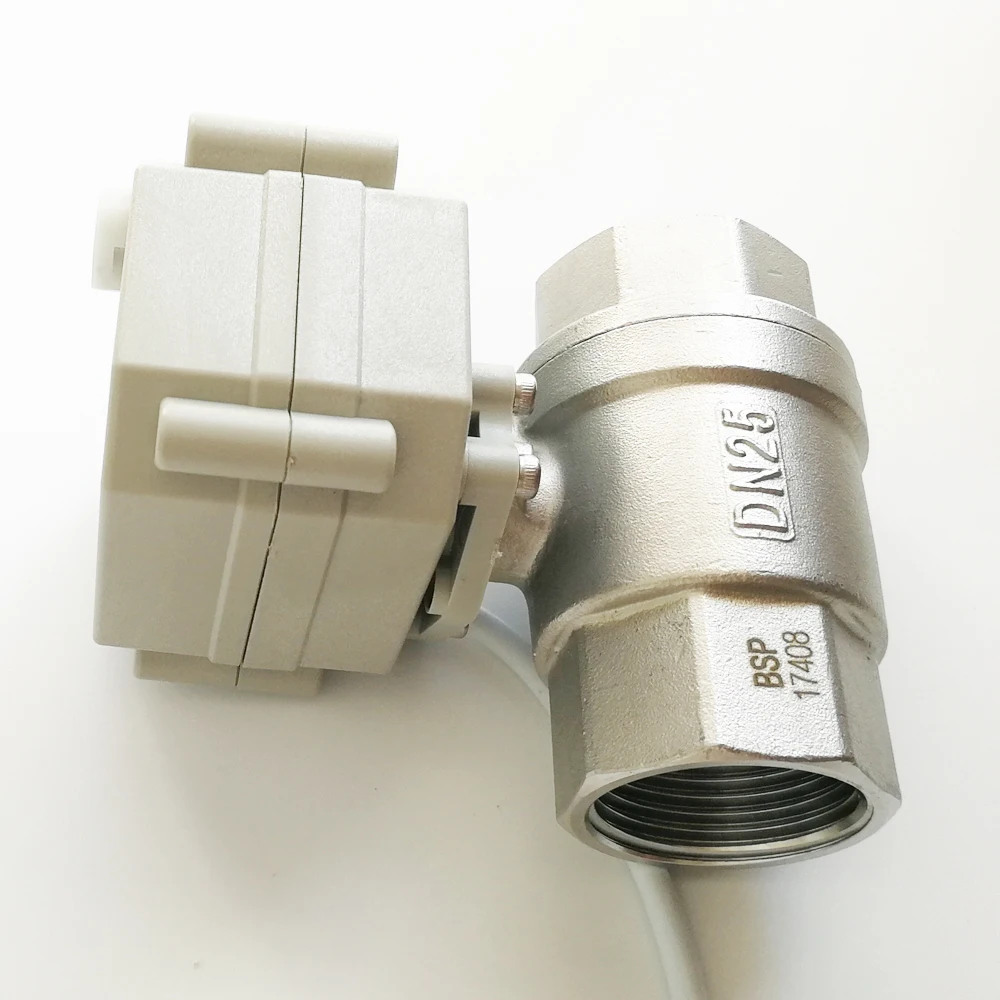

TF25-S2-B SS304 Full Port DN25 BSP/NPT 1" Motorized Valve With Manual Override And Position Indicator DC5V 2/3/5/7 Wires
Technical Details
| Actuator Mode: | With Manual And Instruction |
| Brand Name: | Tsai Fan |
| Control Wires: | 2/3/5/7 wires |
| Material: | Stainless Steel |
| Media: | Water |
| Model Number: | TF25-S2-B |
| on/off time: | 5 Sec |
| Port Size: | DN25 1" full port |
| Position indicator: | yes |
| Power: | DC5V |
| Power Source: | DC |
| Pressure: | max 1.0Mpa |
| Pressure: | Medium Pressure |
| Signal feedback: | yes |
| Standard or Nonstandard: | Standard |
| Structure: | Ball |
| Temperature of Media: | 1-95 Degree C |
| Thread: | BSP or NPT |
| valve size: | DN25 |
| Voltage: | DC5V |
