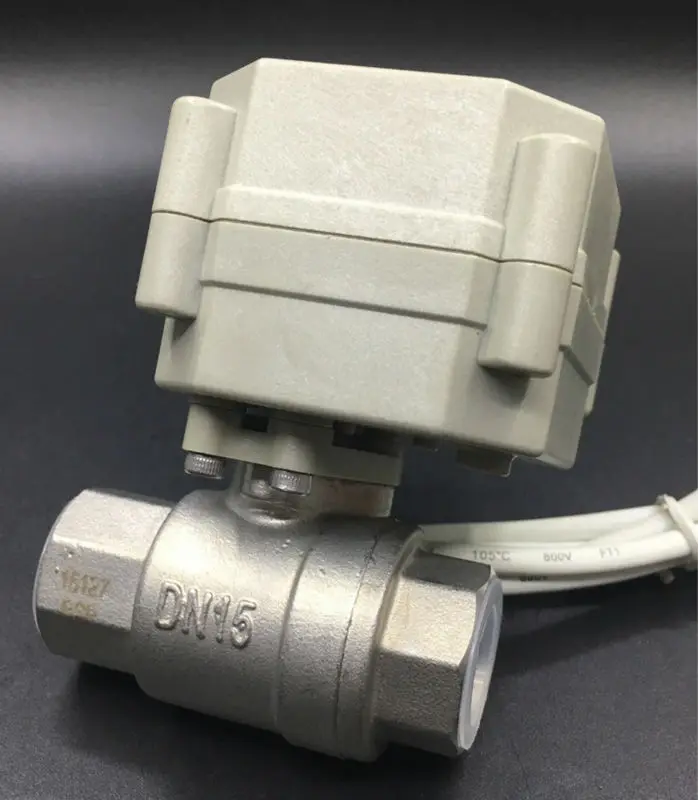

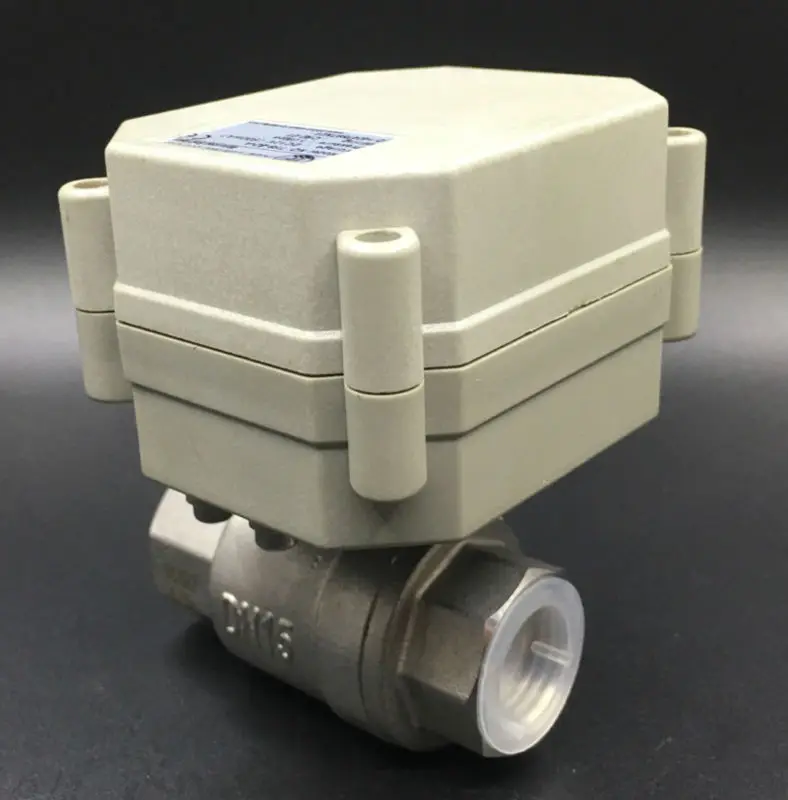

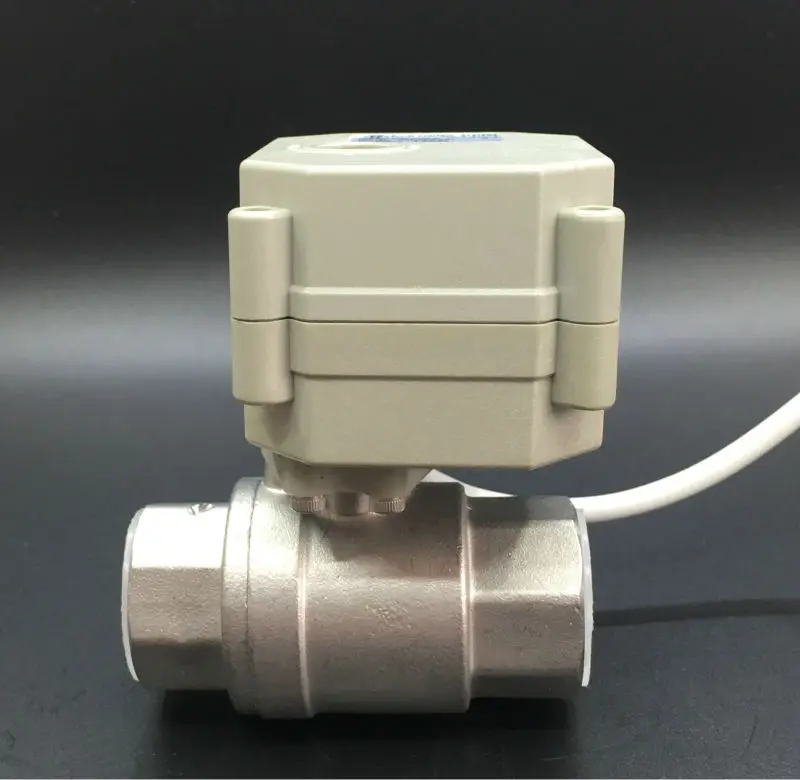

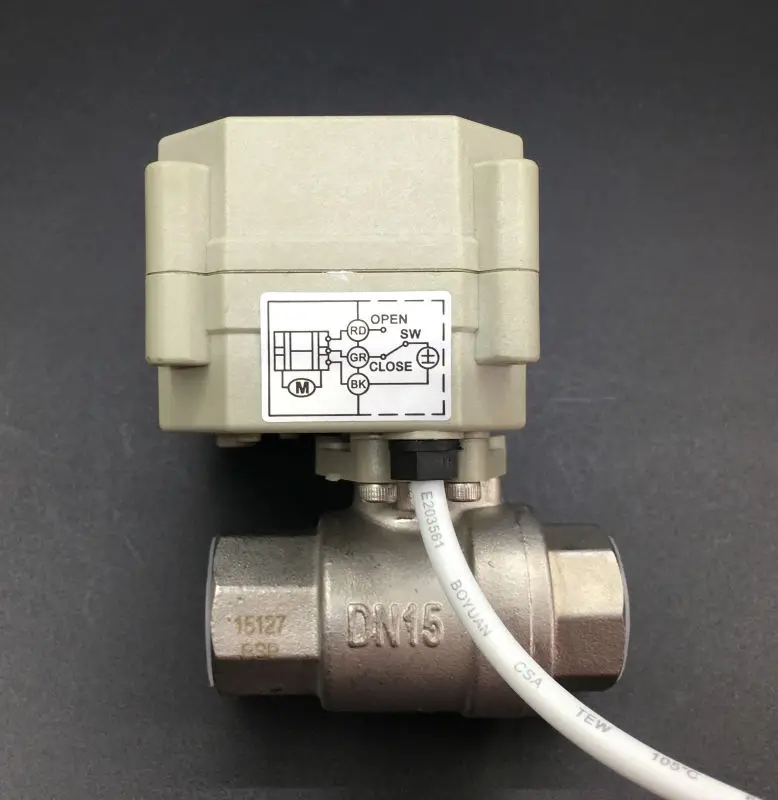

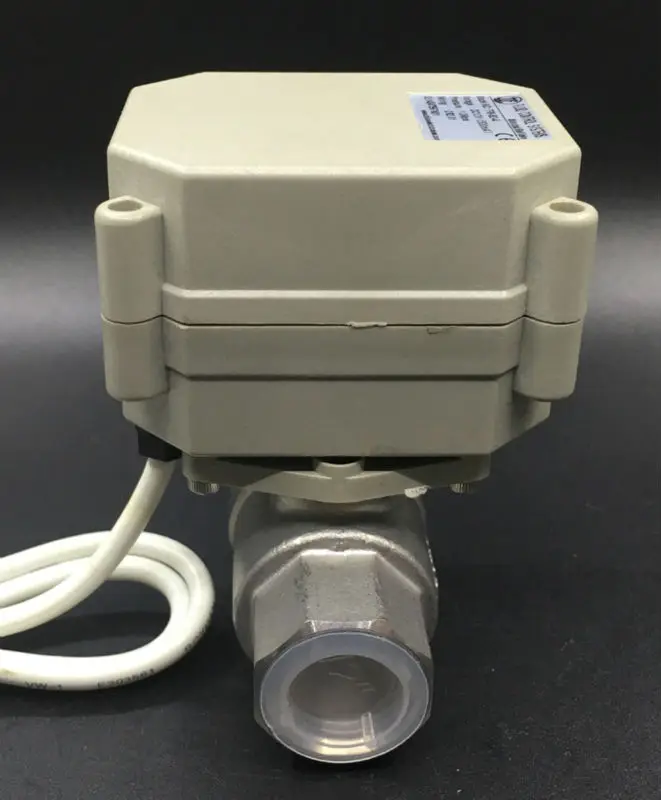

TF15-S2-A BSP/NPT 1/2'' 2 Way DN15 Electric Actuated Valve DC12V or DC24V 2/3/5/7 Wires Max 1.0Mpa On/Off 5 Sec CE IP67
sku: 32828543883
ACCORDING TO OUR RECORDS THIS PRODUCT IS NOT AVAILABLE NOW
$36.81
Shipping from: China
Technical Details
| Actuator Mode: | Without Manual And Instruction |
| Brand Name: | Tsai Fan |
| Control Wires: | 2/3/5/7 Wires For Option |
| Manual Override: | None |
| Material: | Stainless Steel |
| Media: | Water |
| Model Number: | TF15-S2-A |
| on/off time: | 5 Sec |
| Port Size: | DN15, 1/2'' |
| Position indicator: | None |
| Power: | DC12V/24V |
| Power Source: | DC |
| Pressure: | Max 1.0 Mpa |
| products: | 2 Way Electric Actuated Valve |
| Standard or Nonstandard: | Standard |
| Structure: | Ball |
| Temperature of Media: | 1-95 degree C |
| Thread Option: | BSP or NPT |
| valve material: | Stainelss Steel 304 |
| Voltage: | DC12V or DC24V |
