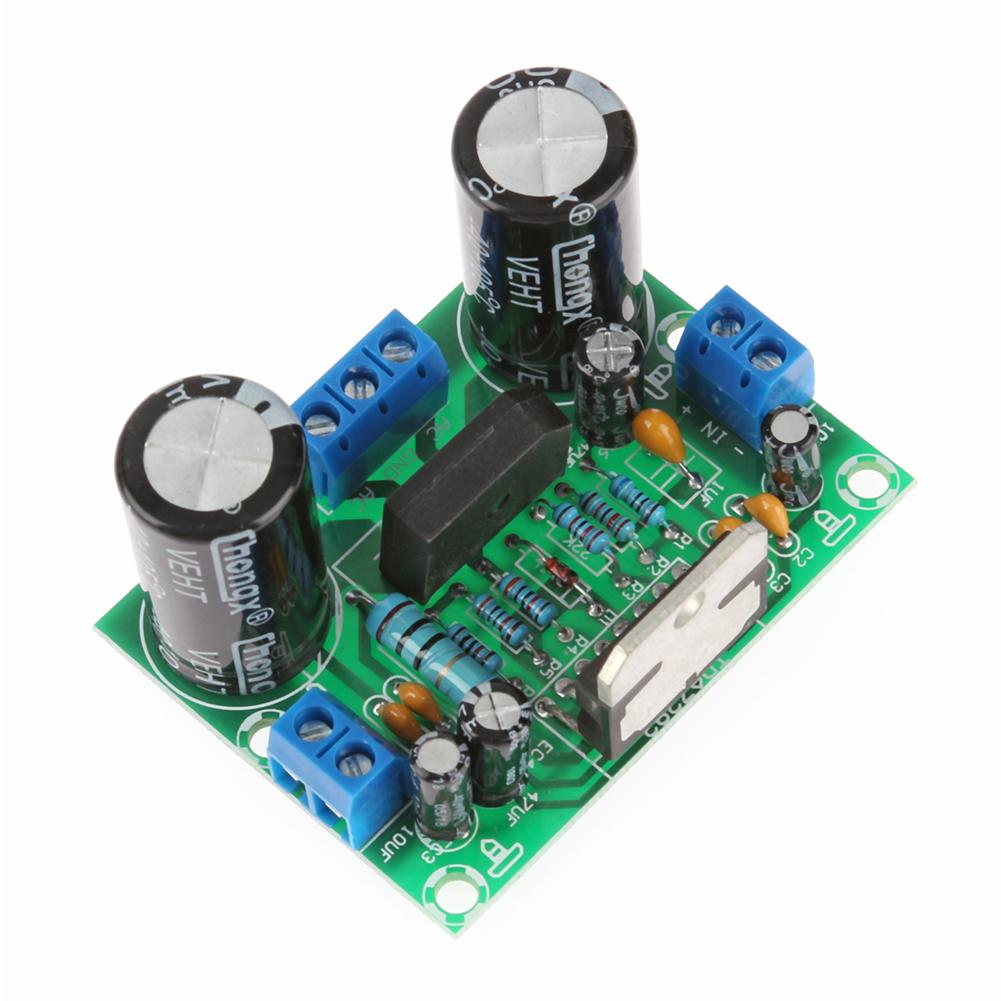

TDA7293 Module AC12V-32V 100W DIY Digital Audio Amplifier Single Channel, 501 Original

TDA7293 Module Dual AC12V-32V 100W DIY Digital Audio Amplifier Single Channel AMP Board Features:1. The circuit is an official standard circuit, which is stable and reliable.2. The filter uses a voltage of 50V capacity of 2200uf for large electrolysis.3. Supply voltage: double 12-36V ring cattle, recommended double 32V ring cattle.4. Output power: 85W*1 without distortion, rated power, crest value power 100W.5. Can easily promote speakers above 100W, horn impedance: 4-8ohm.6. New imported TDA7293 chips, no refurbishment and dismantling.Specification:Model: XH-M170Vocal tract type: mono channelLoad type: 4-8ohmPower supply requirements: AC dual 12-32VInput impedance: 100KOutput power: Max 100WFrequency response range: 20Hz-20KHzSize: 60*40*30mm/2.36*1.57*1.18''Note: It is necessary to use 3 wire of transformer, double 12-32 can be, and must stick thr heat radiator itself.Please allow 1-3mm differs due to manual measurement.Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.1 x TDA7293 Module
