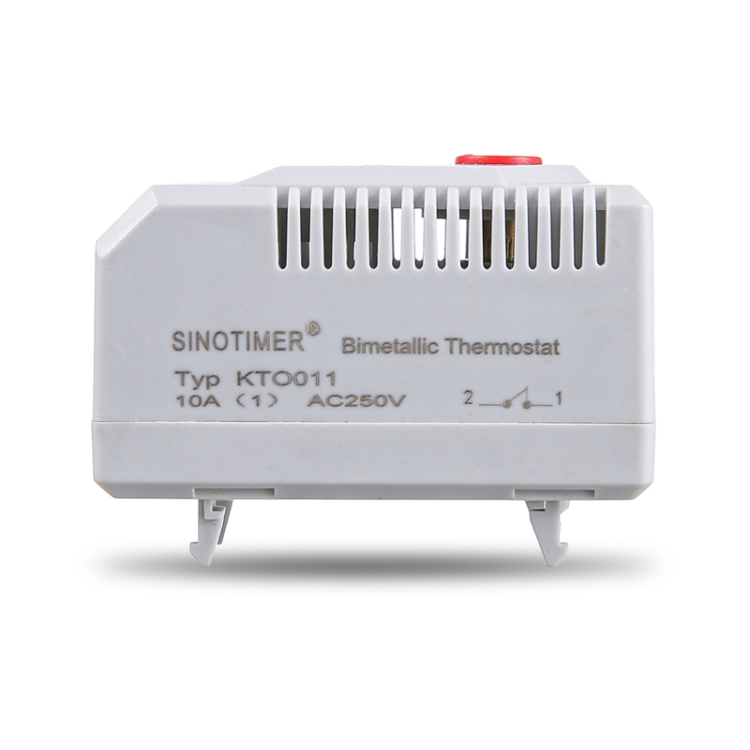

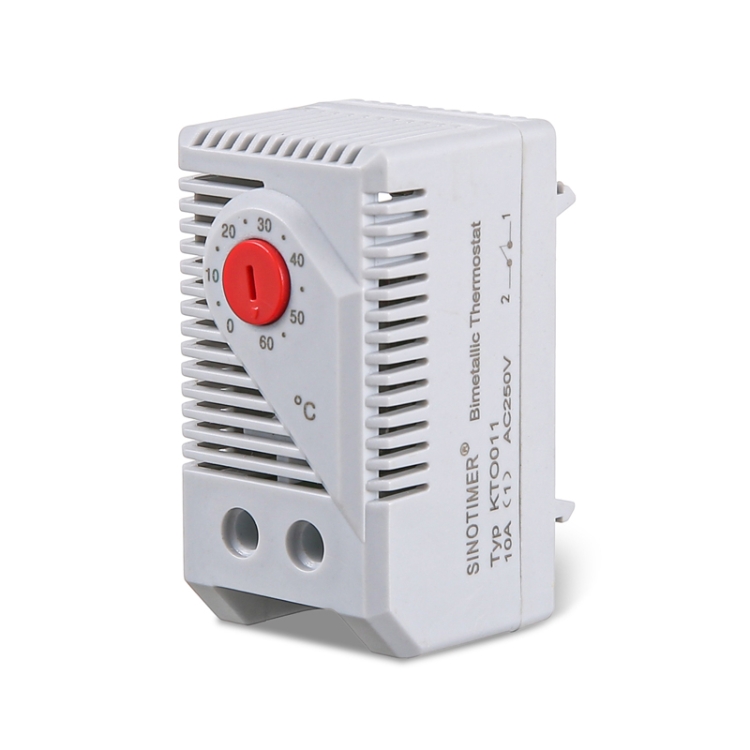

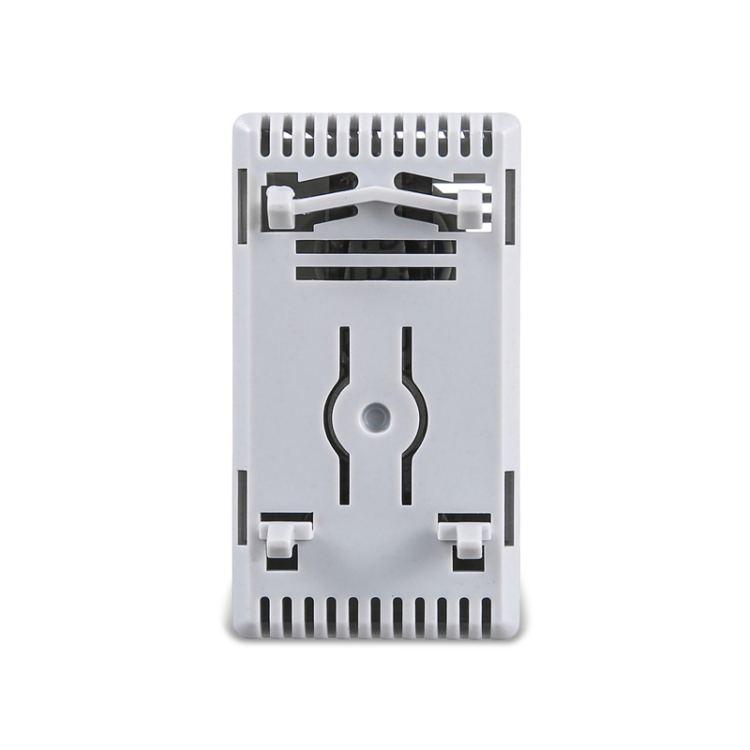

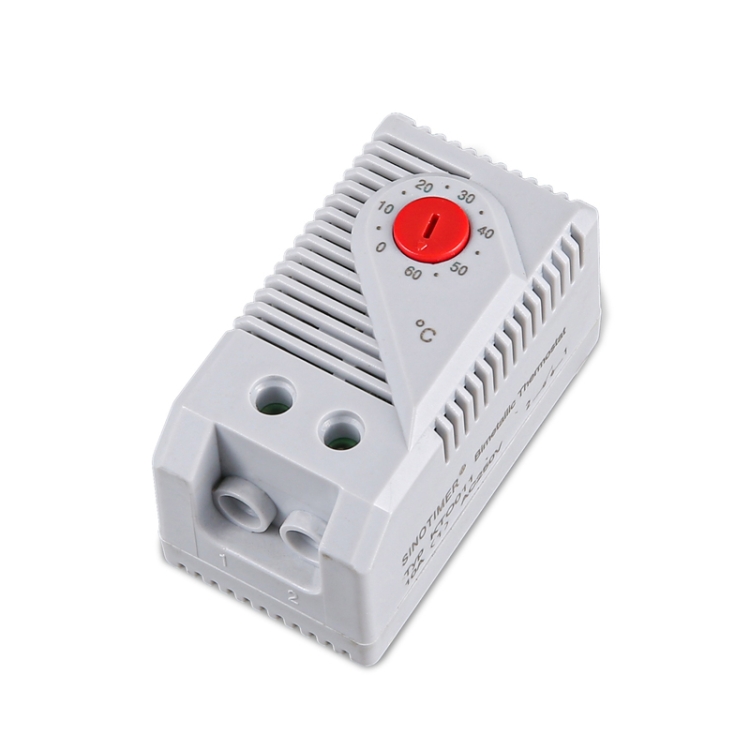

SINOTIMER Small Mechanical Temperature Regulator Control Panel Thermostat, Model: KTO011

1. Widely used in communication, wind power generation, fire-fighting equipment, ships, petrochemical industry, large-scale factories, coastal factories, wharves, water treatment facilities, equipment, etc2. Mini size, simple and convenient installation3. Long service life, good durability4. High switching performance, high sensitivity5. Function:- KTO011: red, thermostat (normally closed), for controlling heaters- KTS011: blue, thermostat (normally open), for controlling fans or switching signaling devices- ZR011: thermostat (normally open and normally closed integrated design), dual-use heating and cooling6. Working principle: due to different coefficients of thermal expansion, bimetal in the temperature change, the two sides of the thermal expansion and contraction of different degrees, so at different temperatures, the degree of its bending changes; temperature is higher than the expansion of the bimetal temperature, the bimetal contact position of the deformation and disconnect the circuit is closed, the temperature is lower than the expansion of the temperature of the bimetal, the bimetal contact position returns to its original shape and closed, the circuit is closed7. The thermostat is divided into normally open and normally closed two kinds:- Normally closed: when the temperature is set, the thermostat is in the normally closed state, when the actual ambient temperature drops to or near the set temperature, it will start the load heating, usually the thermostat is in the normally closed state, when the actual ambient temperature is greater than the set temperature, the load is in the state of stopping the operation- Normally open: when the temperature is set, the thermostat is in normally open state, when the actual ambient temperature is greater than or close to the set temperature, the load will be started to dissipate heat, usually the thermostat is in normally open state, when the actual ambient temperature is lower than the set temperature, the load is in the state of stopping operationParameters:1. Switching temperature control: +/-7K (+/-4K tolerance)2. Sensing element: temperature-sensitive material3. Contact type: quick action contact4. Contact resistance: less than 10 milliohms5. Service life: more than 100000 cycles6. Switch: AC250V, 10(2)A; AC120V, 15(2)A; DC 30W7. EMC: EN 55014-1-2; EN 61000-3-2; EN 61000-3-38. Wiring: 2.5 square millimeter wire9. Mounting: 35mm DIN rail10. Shell material: plastic11. Operating/storage temperature: -80-80 degrees celsius12. Protection class: IP2013. Dimensions:- KTO011/KTS011: 60 x 33 x 43mm- ZR011: 67 x 50 x 46mm
