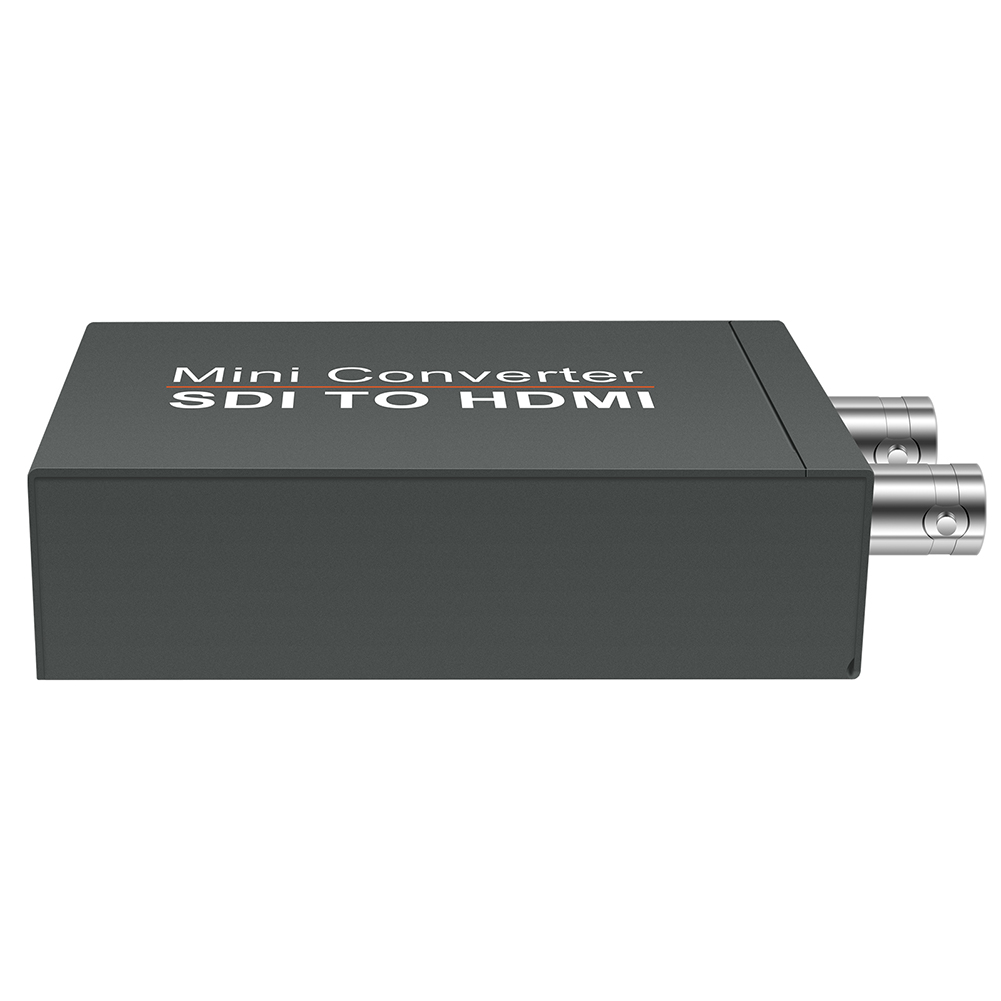

SDI to HDMI-Compatible Converter Adapter with Audio Embedder SDI Loop Out, Eu plug, 501 Original

SDI to HDMI-Compatible Converter Adapter with Audio Embedder SDI Loop Out Auto Format Detection for 3G/HD/StandardDefinition-SDI SignalsFeature:This is a device that supports converting SDI digital signals into HDMI-Compatible digital signals.The device combines a 3G/HD/StandardDigital-SDI receiver and HDMI-Compatible encoder, and can easily convert 3G/HD/StandardDigital-SDI digital signals into HDMI-Compatible digital signals.At the same time, the converter can also decode audio from 3G/HD/StandardDigital-SDI and then output as HDMI-Compatible digital signal.SDI to HDMI-Compatible+SDI output, can be connected in series.SDI to HDMI-Compatible, the converter can be cascaded at least 20 levels, supporting signal transmission distance up to 100M, 1080P60Hz.Specification:Input: SDI*1Output: SDI Loop Out*1, HDMI-Compatible*1SDI format: SD-SDI, HD-SD, 3G-SDISDI standard: in line with SMPTE-259/274/296/372/424/425/292 standardSDI output impedance: 75ΩSDI audio: Support SDI digital signal implantation 8-channel audioHDMI-Compatible interface: standard HDMI-CompatibleHDMI-Compatible version: Support HDMI-Compatible 1.3HDCP version: HDCP1.2HDMI-Compatible bandwidth: 24bit-30bitHDMI-Compatible digital signal format: EIA/CEA-861D standardOperating temperature range: 0℃-55℃Power supply: DC 5V-12VPower plug: UK, US, EU (Optional)Product size: 82*55*23mmProduct weight: 100gPacking size: 150*107*50mmPackage weight: 156gNote:There may be slight size deviations due to manual measurement, different measuring methods and tools.The picture may not reflect the actual color of the item because of different photographing light, angle and display monitor.Package Content:1 X Converter1 X Power Adapter1 X Manual
