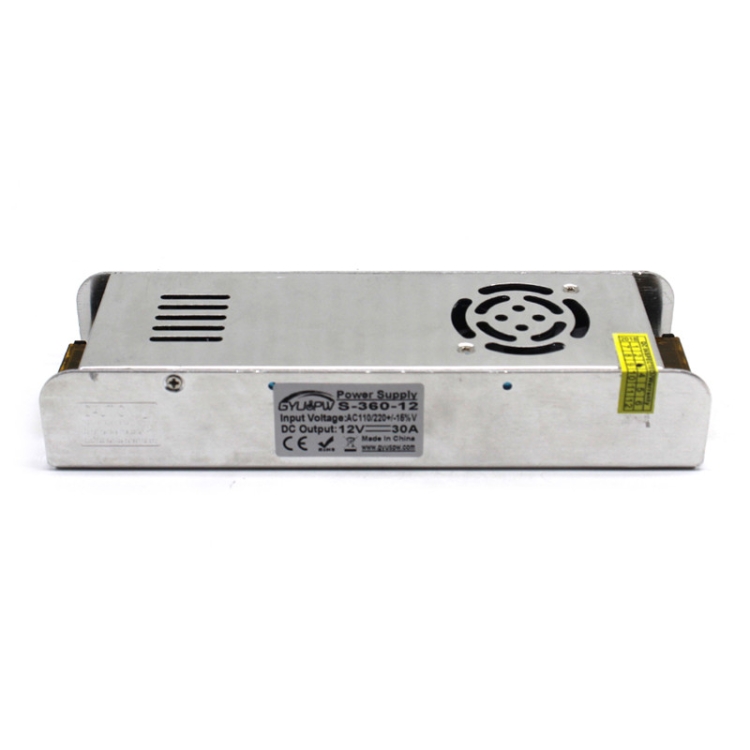

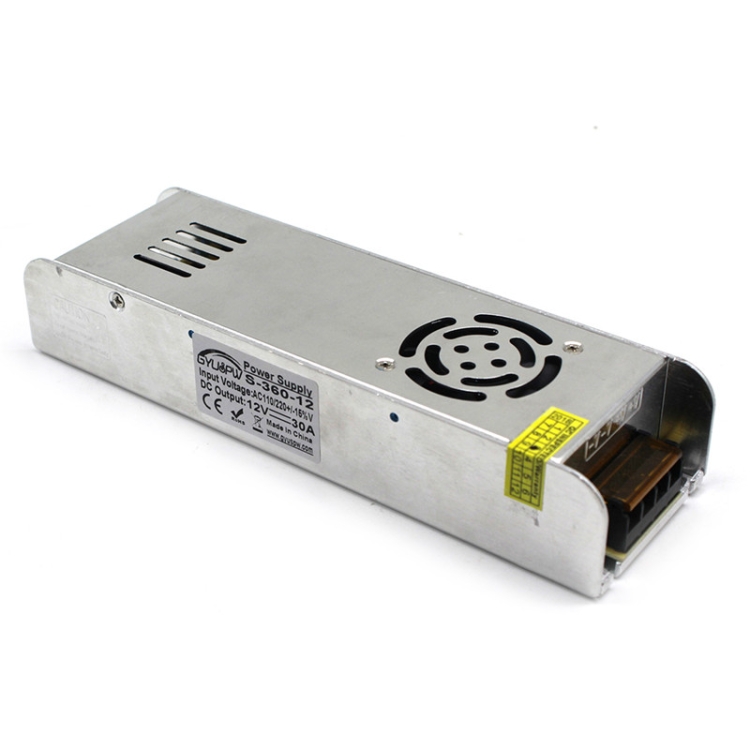

S-360-12 DC12V 360W 30A DIY Regulated DC Switching Power Supply Power Inverter

1. Stable transformer inductor, all-copper coil, fast heat dissipation.2. High-capacity electrolytic capacitor, high temperature resistance of 105 degrees Celsius, long working time under full load, stable operation and long life.3. Filter ring capacitors, the circuit work is more stable, and the interference of variable pulsation ripples to the electronic circuit is reduced at the same time.4. Large mA fuse to effectively protect the circuit.5. Parameters:Input voltage: AC110-220VOutput voltage: DC12VCurrent: 30APower: 360W MaxEfficiency: more than 80%Output adjustable voltage range: +/-5%Frequency: 50-60HzLeakage current: less than 1mA/230VTemperature coefficient: +/-0.03%/degree Celsius (0~50 degrees Celsius)Start, rise, hold time: 200ms, 50ms, 20msShock resistance: 10～500Hz, 2G 10min, /1 cycle, duration 60 minutes, each axisProtection: Overload, overvoltage, overcurrent, short circuit protectionVoltage resistance Between input and output: 1.5KvAC input and shell; 1.5KvAC output and shell; 0.5KvACWorking temperature and humidity: -10~+60 degrees Celsius, 20%~90%RHStorage temperature and humidity: -20~+85 degrees Celsius, 10%~95%RHDimensions: 223x68x44mmWeight: 0.6KG
