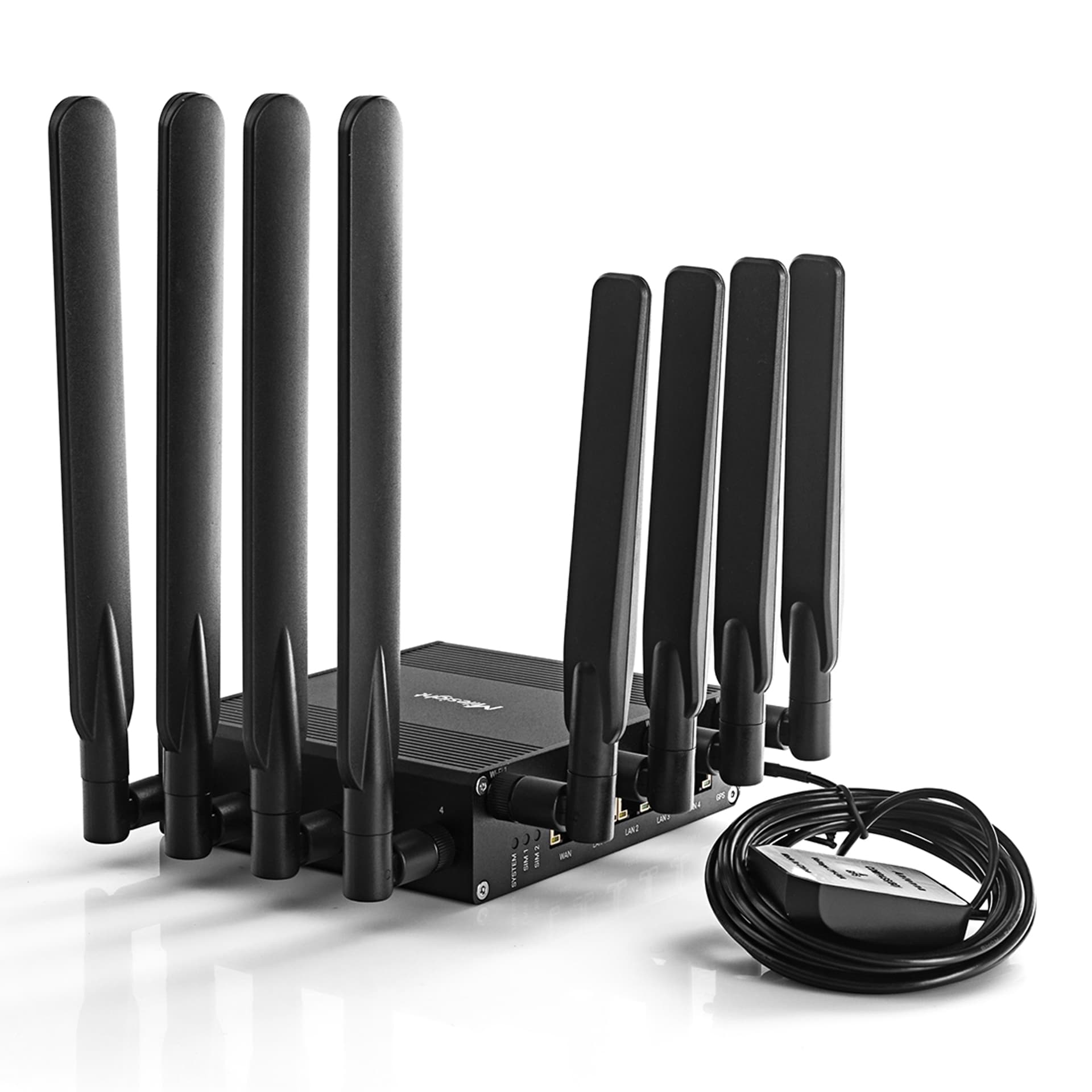

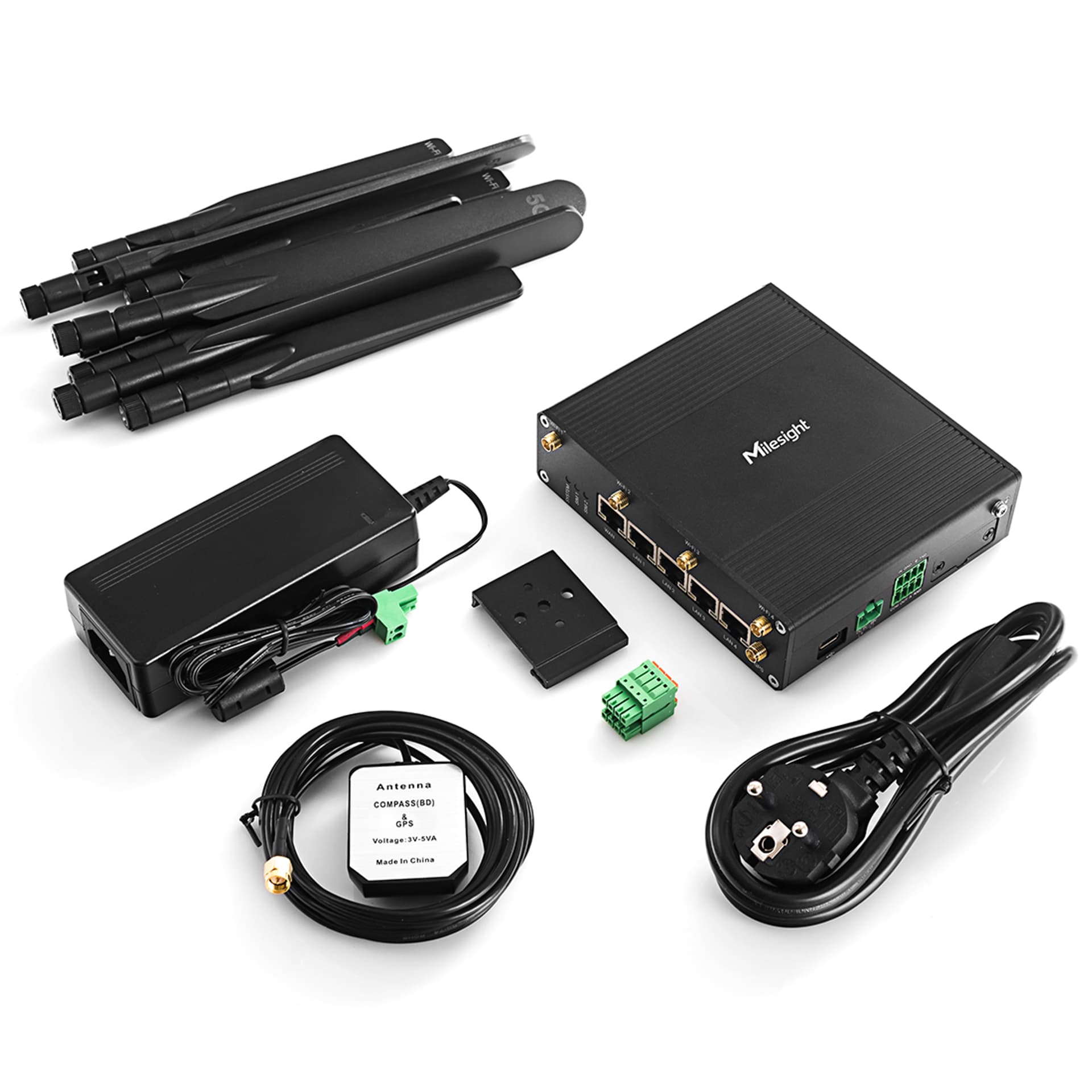

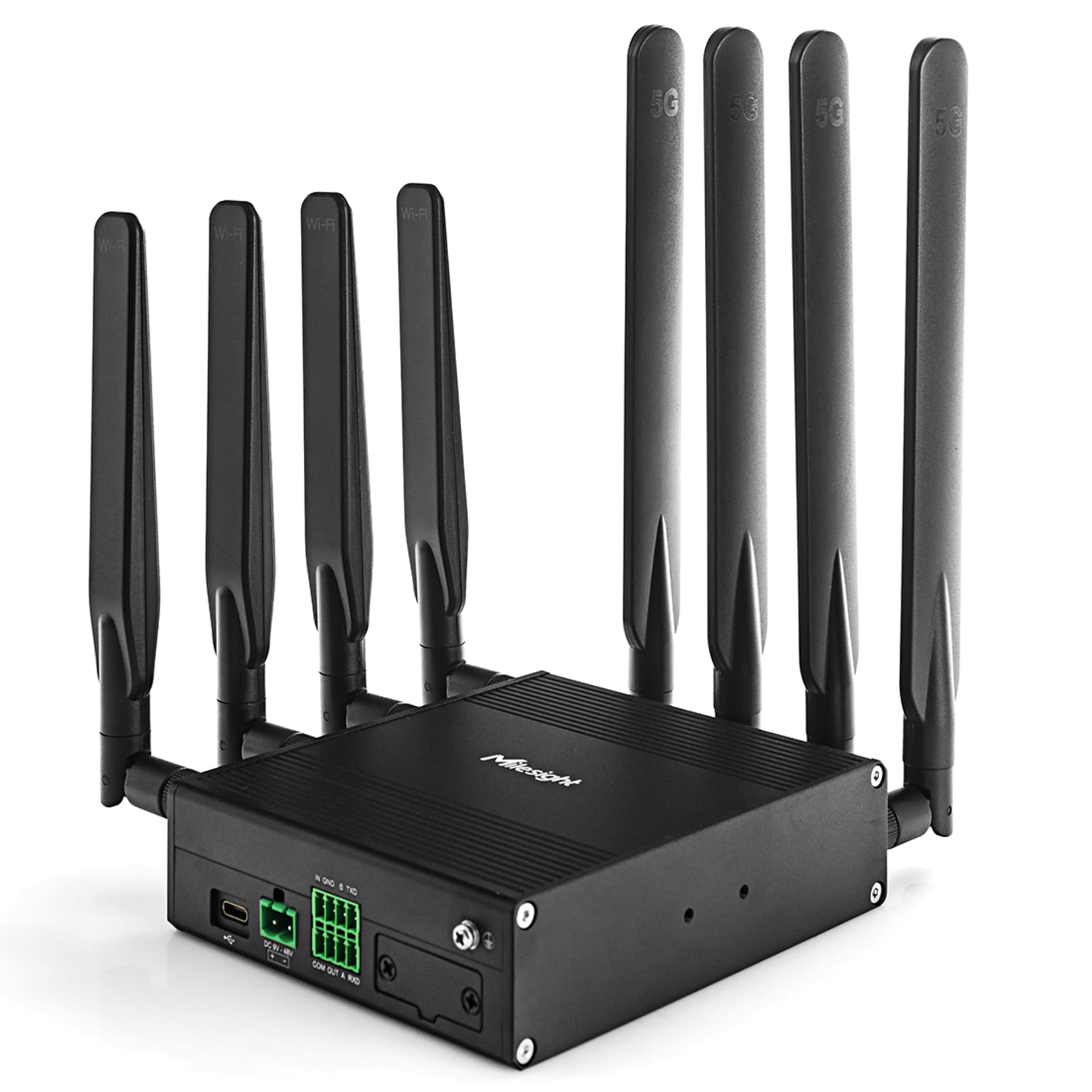

Router przemysłowy Milesight 5G UR75 EU PoE

Zaawansowany router przemysłowy 5G PoE Milesight UR75-504AE-P-W2Świetny wybór do profesjonalnych zastosowań M2M. Dzięki wysokiej prędkości transmisji danych w sieci 4G/5G oraz zaawansowanym parametrom, router przemysłowy sprawdzi się jako urządzenie do bezprzewodowego przesyłania danych w obszarach, w których obciążenie transferu jest bardzo duże. Router przemysłowy UF75 od Milesight Zastosowanie routerów przemysłowych Spacetronik Specyfikacja technicznaHardware System CPU - Quad-core ARM Cortex-A55，2 GHz Memory - 1 GB LDDR4x RAM and 1 GB NAND Flash Extendable Storage - 1 × M.2 NVMe SSD InterfaceCellular Interface Network - 5G NR SA & NSA/4G LTE/WCDMA Frequency5G Sub-6: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78LTE FDD: B1/B3/B5/B7/B8/B20/B28/B32LTE TDD: B38/B40/B41/B42/B43WCDMA: B1/B5/B8 Antenna - 4 × 50 Ω SMA Connectors (Center PIN: SMA Female) SIM Slots - 2（Mini SIM-2FF）Ethernet Interface Numbers - 5 × 10/100/1000 Mbps Property - 1 × WAN +4 × LAN Mode - Full or Half Duplex (Auto-Sensing) PoE - 4 × 802.3 af/at PoE PSE on LAN Ports (Optional)WiFi Interface (Optional) Antenna - 4 × 50 Ω SMA Connectors (Center PIN: RP-SMA Female) Standards - IEEE 802.11b/g/n/ax 2 x 2 MIMO, 2.4 GHzIEEE 802.11a/n/ac/ax 2 x 2 MIMO, 5 GHz Max Bit Rate - 2.4 GHz: 600 Mbps, 5 GHz: 1200 Mbps Modes - AP and Client mode Security - WEP/WPA/WPA2 authentication, WEP/TKIP/AES encryptionGNSS Antenna - 1 × 50 Ω SMA Connector (Center PIN: SMA Female) Technology - GPS/GLONASS/Beidou/Galileo/QZSS Protocol - NMEA 0183Serial Interface Numbers - 1 × RS232 + 1 × RS485 Connector - 3.5 mm Terminal Block Baud Rate - 300bps to 230400bpsDI/DO Numbers - 1 × DI (dry contact) + 1 × DO (wet contact), galvanic isolation Connector - 3.5 mm Terminal Block Maximum V/A - 0.3A@30VDC (DO)Others USB-C - 1 × USB-C Reset Button - 1 × RESET LED Indicators - 1 × STATUS，1 × SIM1，1 × SIM2 Built-in - Watchdog, TimerSoftware Network Protocols - IPv4/IPv6, TCP, UDP, DHCP, HTTP, HTTPS, ARP, NTP, DNS, ARP, SSH, etc. VPN - IPsec, OpenVPN Security - Access Control, DMZ, Port Forwarding, SYN-Flood Protection, Filtering (IP & MAC & Domain) Management - Web, DeviceHub, MilesightVPN Multilevel Authority - Multiple Levels of User Authority Reliability - WAN Failover, Dual SIM Backup Serial Port - Transparent (TCP Client/Server, UDP), Modbus Master, Modbus Gateway (Modbus RTU to Modbus TCP)Power Supply Power Input9-48 VDC, with Surge-Protection and Reverse Polarity Protection Power Connector - 2-pin 3.5 mm Terminal Block Power Consumption - Without Wi-Fi: Typical 2.8 W, Max 5.5 W (In Non-PoE mode) - With Wi-Fi: Typical 7 W, Max 13.7 WPhysical Characteristics Ingress Protection - IP30 Housing - Metal Dimension - 135 x 115 x 36.4 mm (5.31 x 4.53 x 1.43 in) Installation - Desktop, Wall or DIN Rail MountingEnvironmental Operating Temperature - -30°C to +60°C (-22℉ to +140℉) Storage Temperature - -40°C to +85°C (-40℉ to +185℉) Ethernet Isolation - 1.5 kV RMS Relative Humidity - 0% to 95% (Non-condensing) at 25°C/77℉
