Robokart RK-1210 Electronic Components Electronic Hobby Kit

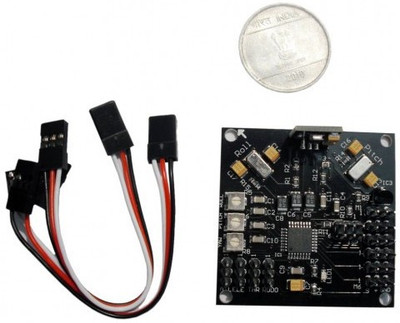

This KKMulticopter controller is a flight control board for up to 6 Rotor Aircraft. Its purpose is to stabilize the aircraft during flight. To do this it takes the signal from the three on board gyros (roll, pitch and yaw) then passes the signal to the Atmega168PA IC. The Atmega168PA IC unit then processes these signals according the users installed software and passes control signals to the installed Electronic Speed Controllers (ESCs). These signals instruct the ESCs to make fine adjustments to the motors rotational speed which in turn stabilizes your Quadcopter.These control boards also use signals from your radio systems receiver (Rx) and passes these signals to the Atmega8PA IC via the ail (aileron), ele (elevator), thr (throttle) and rud (rudder) inputs. Once this information has been processed the IC will send varying signals to the ESCs which in turn adjust the rotational speed of each motor to induce controlled flight (up, down, backwards, forwards, left, right, yaw).
