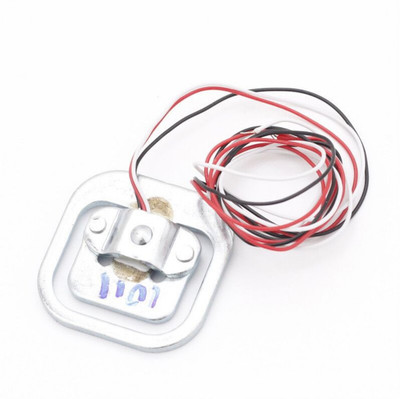

Robodo 50Kg Pressure Micro Scale Weighing Sensor Electronic Components Electronic Hobby Kit

"50Kg Pressure Micro Scale Weighing Sensor Resistance Strain Half Bridge Sensor Body Load Cell Feature When measuring, the correct force is applied to the outer side of the strain E-shaped beam portion of the sensor (i.e., a strain gauge affixed to the middle, with a beam of white plastic cover arm) and the outside edges to form a shear force in the opposite direction, i.e., in the middle of strain beam bending necessary changes can occur under stress, strain beam side by another force can not have a barrier. The sensor use the following three methods: 1. Using a sensor with external resistors full bridge measurement range of a sensor range: 50kg. Higher requirements for external resistor 2. The use of only two full-bridge sensors measuring range is the range of the two sensors and: 50kgx2 = 100kg 3. The use of four full-bridge sensors measuring range is the range of four sensors and: 50kgx4 = 200kg Size: 34mm x 34mm Model: Weighing Sensor Strain Of Half-bridge Sensor"
