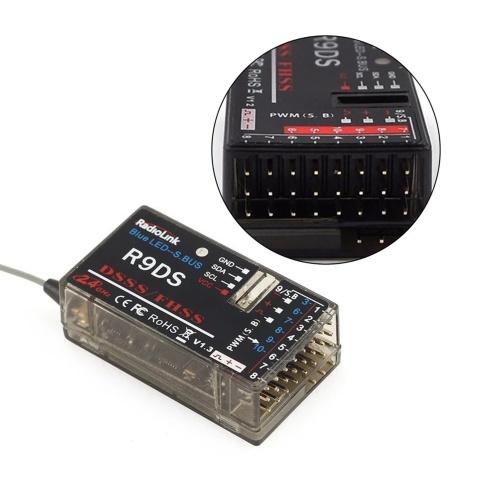

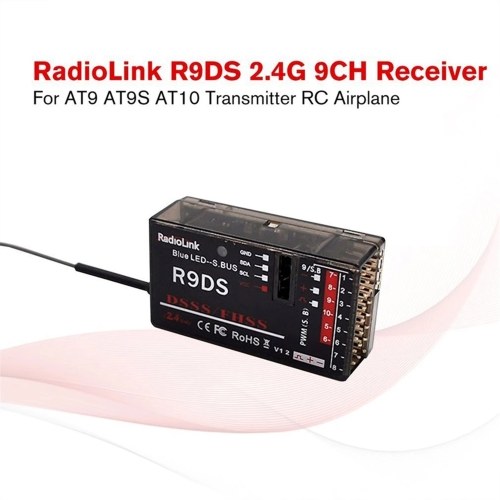

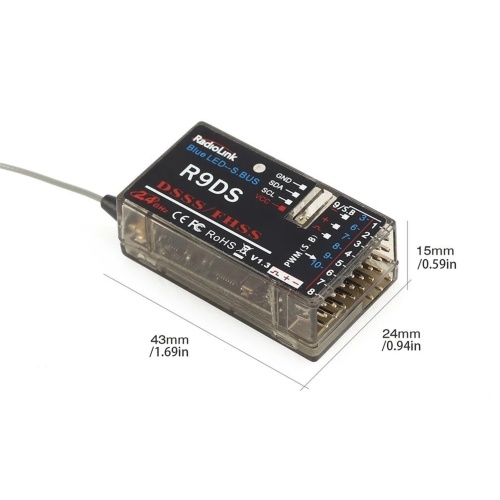

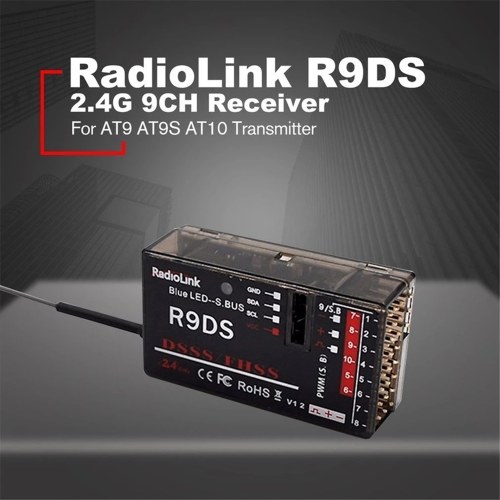

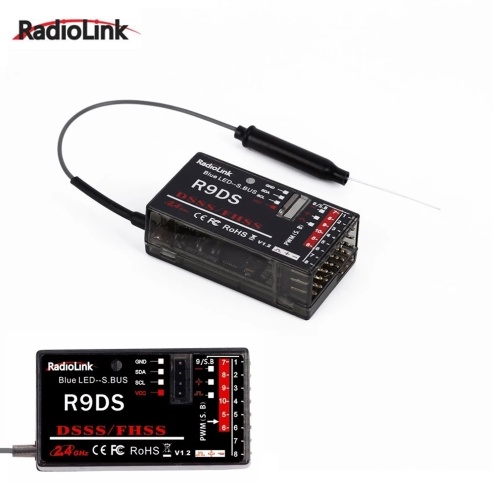

RadioLink R9DS 2.4G 9CH DSSS Receiver for RadioLink AT9 AT10 Transmitter RC Helicopter Multirotor Support S-BUS
Description
Features:
Excellent Anti-interference: with DSSSFHSS pseudo random algorithm to give R9DS with excellent anti-interference ability.
9/10 Channels: Support PWM/SBUS signal output, works with Radiolink AT9/AT9S/AT9S Pro/AT10/AT10II. Please make sure SYSTEM channel seleCtion is 10CH mode when it works with AT10II 12 channels transmitter, otherwise that will cannot works.
Fast Response: High resolution ratio of 4096, the stability of 0.5us, to provide a quicker, low-latency connection for the driver.
Long Range Control: Outstanding control range up to 2.1 miles on air. (Actually control range depends on the using environment).
Quick to Bind and Anti-polarity Protection: No need any setting on transmitter when R9DS bind with radio. With reverse polarity protection circuit, not damage the receiver even you plug wrong polarity.
Please Note:
R9DS only work with Radiolink transmitter products: AT9S/AT9S Pro/AT9/AT10II/AT10.
Short push the ID set switch two times within 1 second it can change signal, while the LED change to red, it indicates PWM signal output, the blue/purple LED indicates SBUS signal output.
Red light--9 channels PWM signal output.
Blue light--10 channels SBUS and PMW signal output at the same time.
How to Match Code With Transmitter:
1. Place the transmitter and the receiver close to each other within 1 meter.
2. Turn on the transmitter, then power on the R9DS.
3. Connect CH3 of R9DS to ESC.
4.There is a black button on the R9DS, use a thin stick or pen press the binding button in one second until the receiver light starts blinking and release, after about 8 times blinking,match code success when receiver signal LED always on.
SBUS and PWM signal change:
Short press the ID SET switch two times within 1 second, the signal is changed from normal PWM to SBUS. The red LED indicates the normal PWM and blue/purple LED indicates SBUS signal.
Two signal working mode:

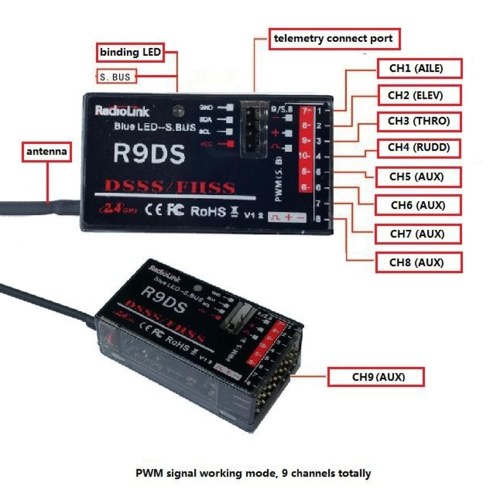

(1)PWM signal output working mode:red LED indicates PWM signal output, 9 channels Totally.
(2) SBUS signal output working mode: blue/purple LED indicates SBUS signal output, 10 channels totally.
SBUS and PWM signal possible working at the same time with SBUS signal output working mode.
CH9 output SBUS signal, the original CH1 output CH3 and original CH2 to CH6 output CH6 to CH10 PWM signal at the same time.
R9DS Receiver
Excellent Anti-interference: with DSSSFHSS pseudo random algorithm to give R9DS with excellent anti-interference ability.
9/10 Channels: Support PWM/SBUS signal output, works with Radiolink AT9/AT9S/AT9S Pro/AT10/AT10II. Please make sure SYSTEM channel seleCtion is 10CH mode when it works with AT10II 12 channels transmitter, otherwise that will cannot works.
Fast Response: High resolution ratio of 4096, the stability of 0.5us, to provide a quicker, low-latency connection for the driver.
Long Range Control: Outstanding control range up to 2.1 miles on air. (Actually control range depends on the using environment).
Quick to Bind and Anti-polarity Protection: No need any setting on transmitter when R9DS bind with radio. With reverse polarity protection circuit, not damage the receiver even you plug wrong polarity.
Please Note:
R9DS only work with Radiolink transmitter products: AT9S/AT9S Pro/AT9/AT10II/AT10.
Short push the ID set switch two times within 1 second it can change signal, while the LED change to red, it indicates PWM signal output, the blue/purple LED indicates SBUS signal output.
Red light--9 channels PWM signal output.
Blue light--10 channels SBUS and PMW signal output at the same time.
How to Match Code With Transmitter:
1. Place the transmitter and the receiver close to each other within 1 meter.
2. Turn on the transmitter, then power on the R9DS.
3. Connect CH3 of R9DS to ESC.
4.There is a black button on the R9DS, use a thin stick or pen press the binding button in one second until the receiver light starts blinking and release, after about 8 times blinking,match code success when receiver signal LED always on.
SBUS and PWM signal change:
Short press the ID SET switch two times within 1 second, the signal is changed from normal PWM to SBUS. The red LED indicates the normal PWM and blue/purple LED indicates SBUS signal.
Two signal working mode:
(1)PWM signal output working mode:red LED indicates PWM signal output, 9 channels Totally.
(2) SBUS signal output working mode: blue/purple LED indicates SBUS signal output, 10 channels totally.
SBUS and PWM signal possible working at the same time with SBUS signal output working mode.
CH9 output SBUS signal, the original CH1 output CH3 and original CH2 to CH6 output CH6 to CH10 PWM signal at the same time.
R9DS Receiver
Technical Details
EanCode: | 750879863991 |
OriginalPrice: | 47.25 |
Warehouse: | CN |
