QIACHIP 433Mhz RF Receiver & Transmitter Learning Code 1527 Superheterodyne Wireless Module 4CH 433.92 Mhz Remote Control EV1527
sku: 32932412582
ACCORDING TO OUR RECORDS THIS PRODUCT IS NOT AVAILABLE NOW
$2.83
Shipping from: China
Technical Details
| Application: | Light Switch,Remote Control Switch |
| Brand Name: | QIACHIP |
| Certification: | CE,CCC,RoHS |
| Channel: | 4 |
| Channel of Receiver: | 4 Channel |
| Channel of Transmitter: | 4 Channel |
| Emission Current of Transmitter: | 10mA |
| Encoding: | EV 1527 Learning Code |
| Frequency: | 433 MHz |
| Input Voltage of Receiver: | DC 3.3V-5V |
| Input Voltage of Transmitter: | DC 3V-24V |

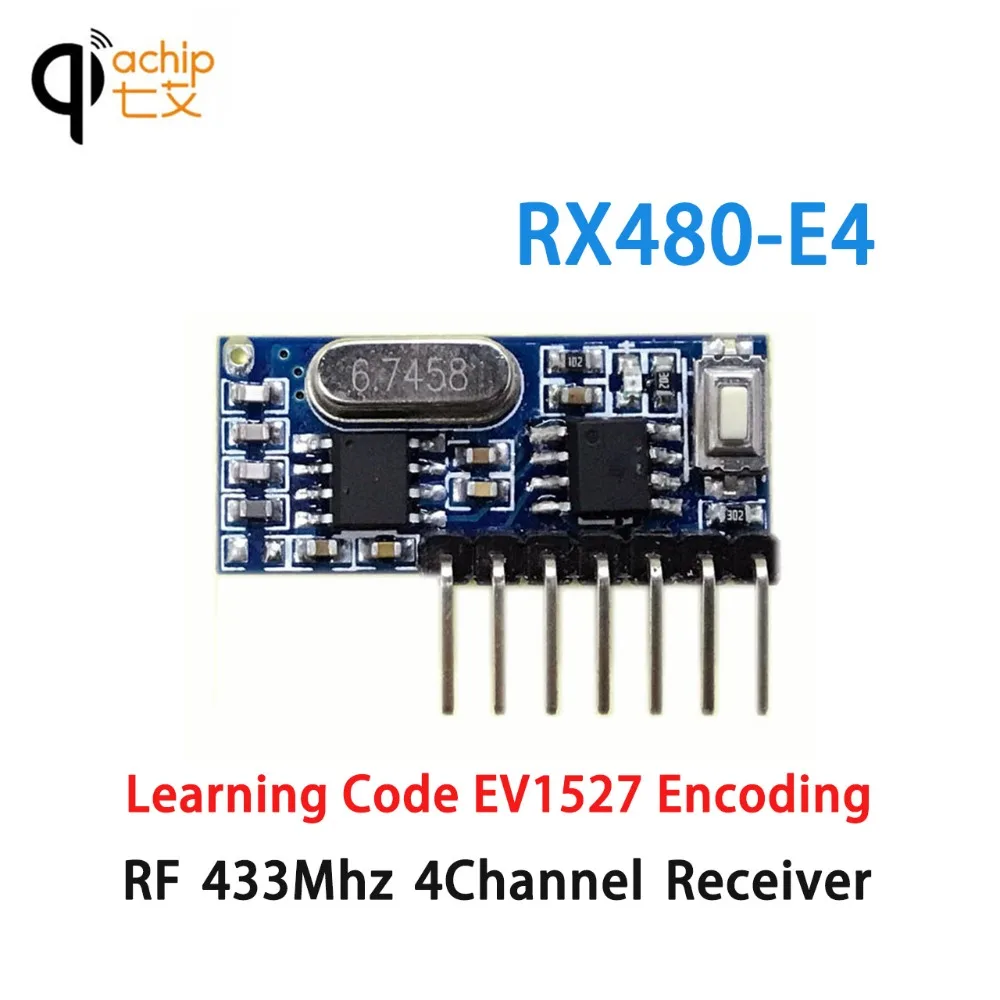

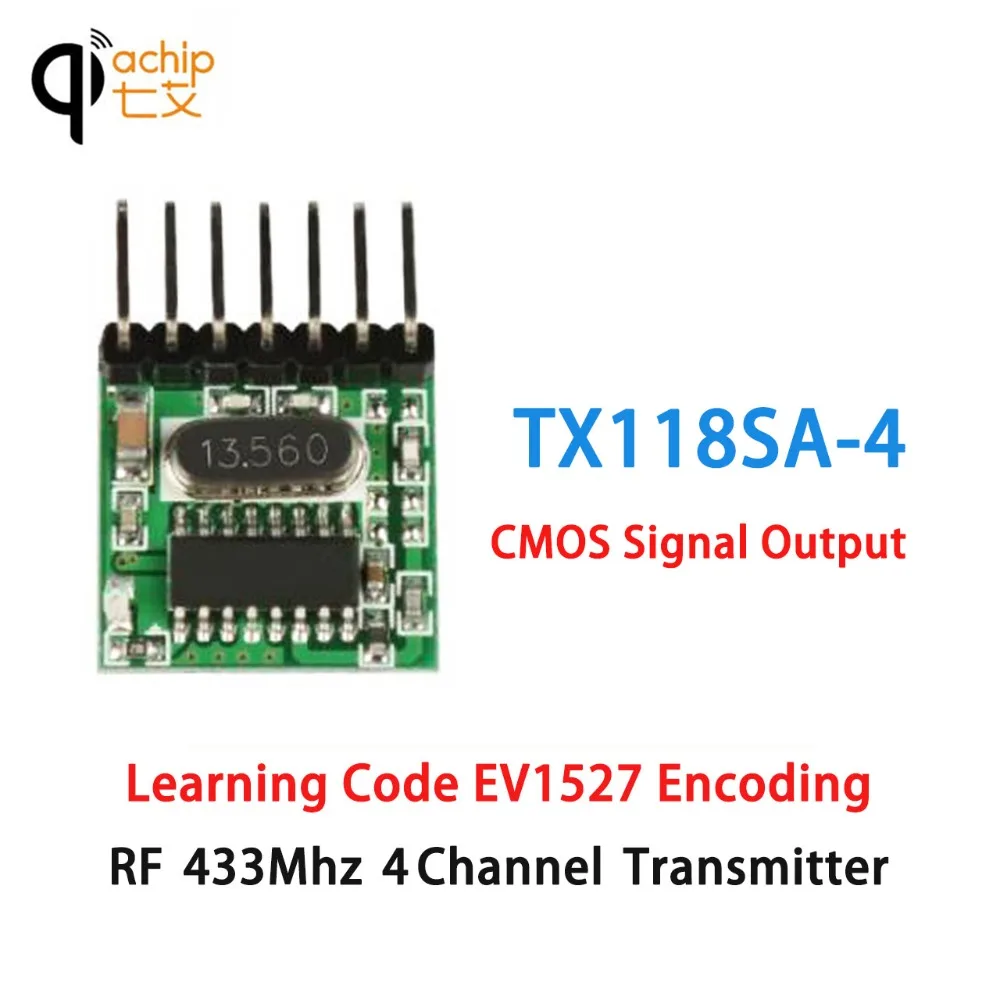

| Model Number: | RF 433Mhz RX480-E4 Receiver & TX118SA-4 Transmitter EV1527 Encoding |
| Modulation of Transmitter: | ASK |
| Package: | No |
| Quiescent Current of Receiver: | <=5mA |
| Quiescent Current of Transmitter: | less than 3uA |
| Rate of fire of Transmitter: | maximum 10KB/s |
| Receive Distance of Receiver: | 15-100m (open space) |
| Receiving Sensitivity of Receiver: | -108dBm |
| RF working mode: | Superheterodyne |
| Size of Receiver: | 28*12.3*1 mm |
| Size of Transmitter: | 24mm * 18mm * 1mm |
| Support APP: | No |
| Transmit deviation of Transmitter: | +/- 7. 5KHZ / narrow-band emission |
| Transmit Distance of Transmitter: | 30-100m |
| Transmitting Power of Transmitter: | 11dbm |
| Use: | Electric Door,Automated curtains,Lighting,Switch,Universal |
| Warranty: | 3 months |
| Wireless Communication: | RF |
| Working Frequency: | RF 433Mhz |

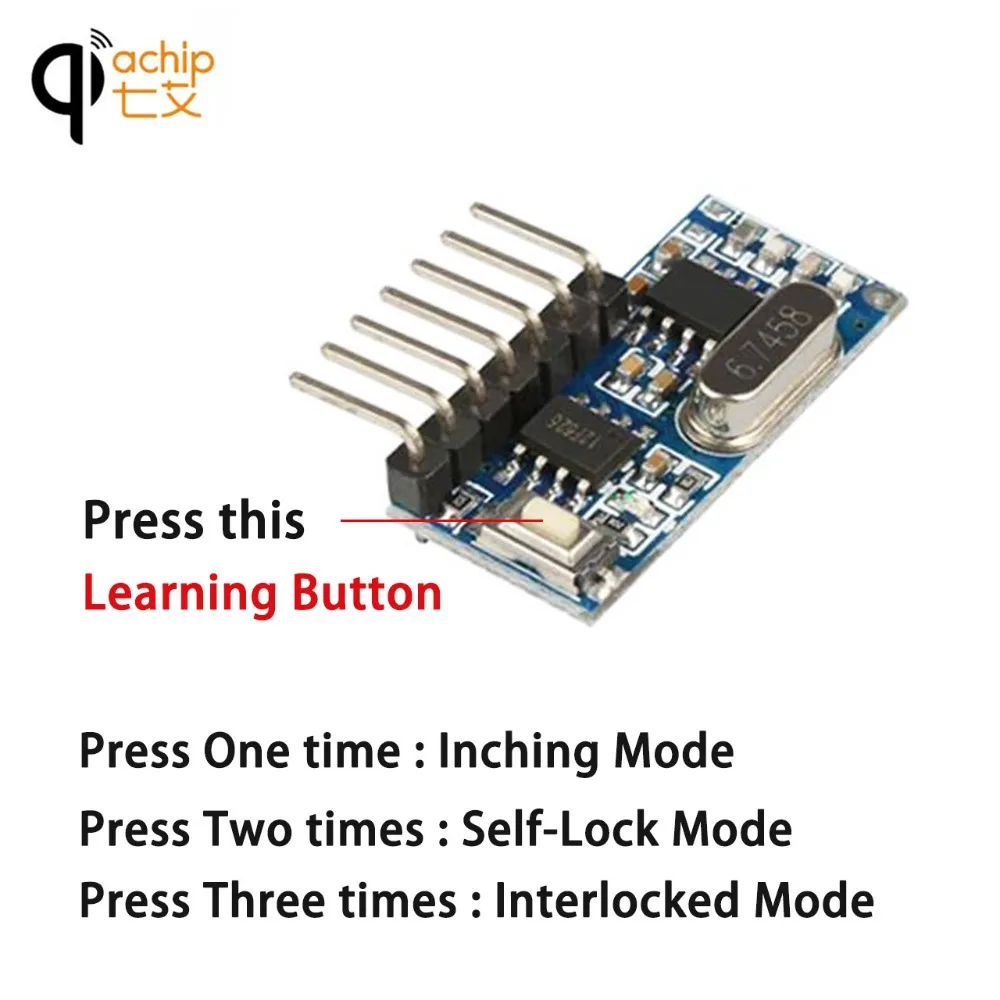

| Working Mode of Receiver: | Inching (Momentary), Self-Lock (Toggle), Interlocked |
| Working Temperature of Receiver: | -25 ~ 75 |
