Accuracy Class: | (1550,1310nm)0.2dB/(1490,1625nm)0.3dB/(850,1300nm)0.4dB |
Application fiber type: | 9/125um-62.5/125um |
Auto Off: | yes |
Battery Life: | >160h(only OPM,use alkaline battery) |
Battery Type: | 2 x AA batteries(not included) |
Brand Name: | ACEHE |
Detector type: | InGaAs |
Dimensions: | 130 x 50 x 30mm |
DIY Supplies: | Electrical |
Humidity: | <90%RH no dew |
Linearity: | +/-2 |
Measurement Range: | -70-+6dBm |
Measuring Current Range: | / |
Measuring Voltage Range: | / |
Model Number: | MT-7602 |

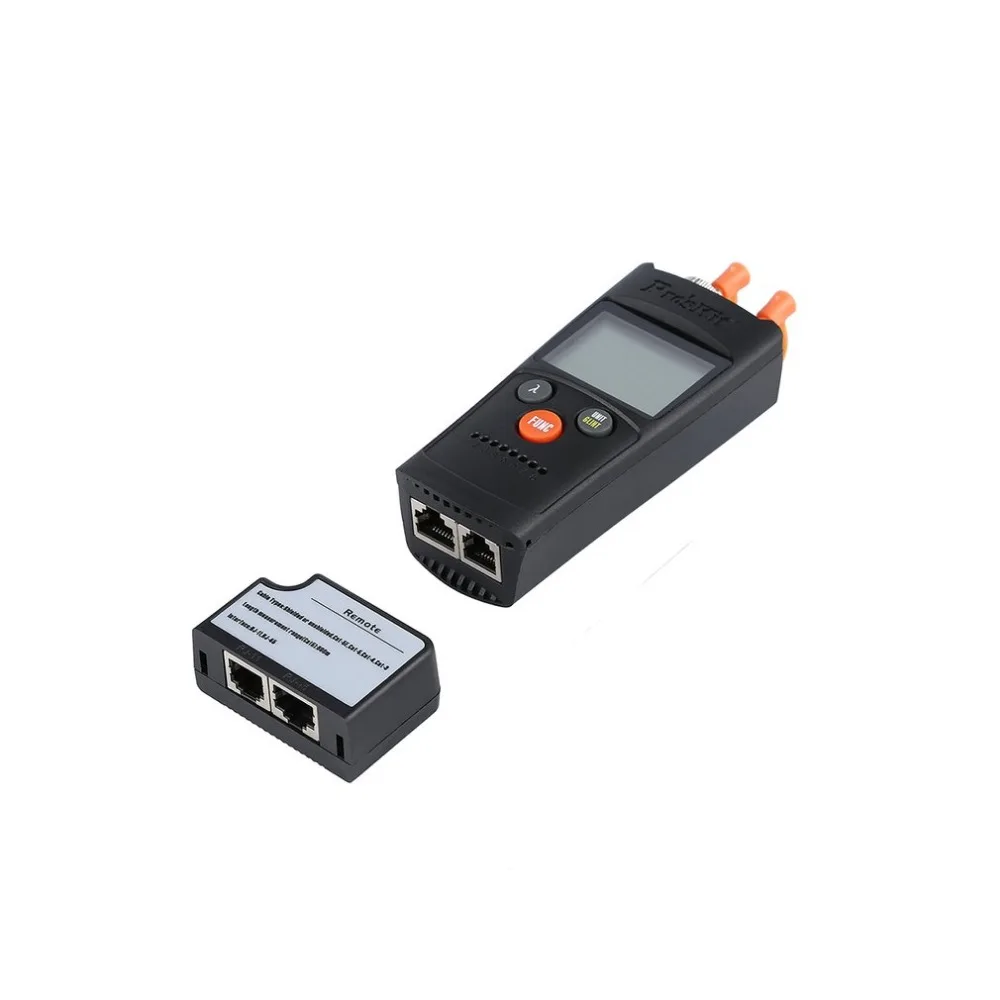

Network cable/Telephone wire: | UTP LAN cable(8P8C),Telecom cable(6P2C/6P4C/6P6C) |
Operating Temperature: | -10 - 60C |
Optic type: | FC/UPP |
Resolution: | +6 to -60dBm(0.01dbB)/-60 to -70dBm(0.1dB) |
Response range: | 700-1700nm |
Storage temperature: | -20 ~ 70C |
VFL: | 635-650nm,>1mW,2.5mm Universal |
Wavelength: | cal.850,1300,1310,1490,1550,1625nm |
