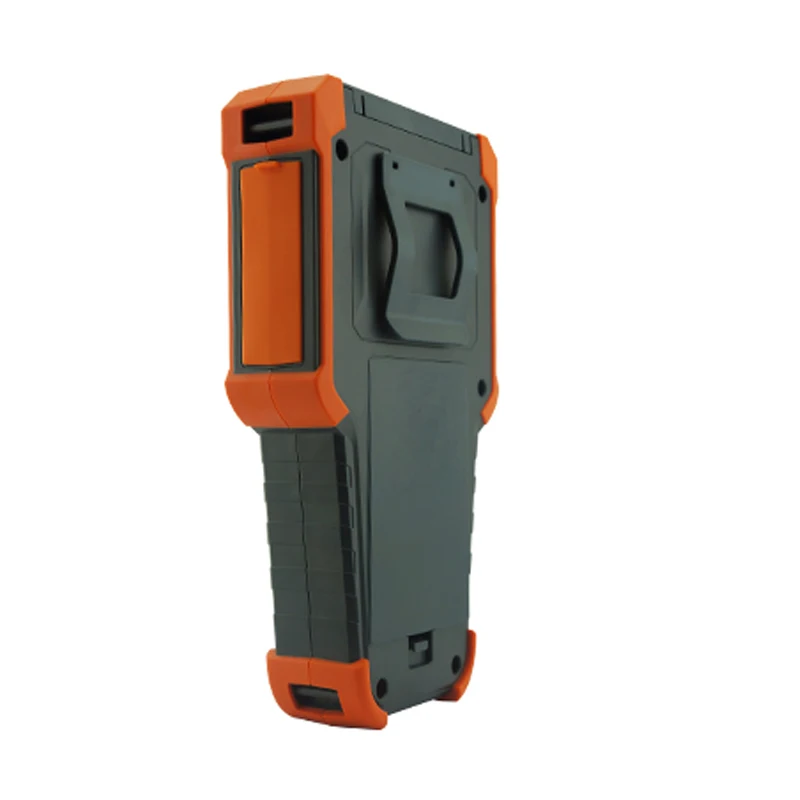

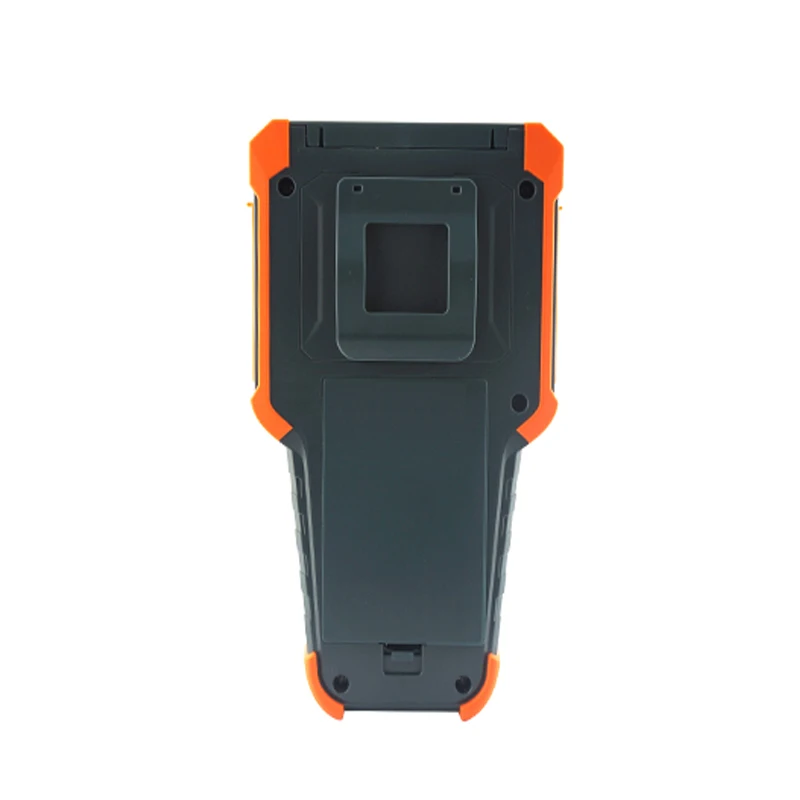

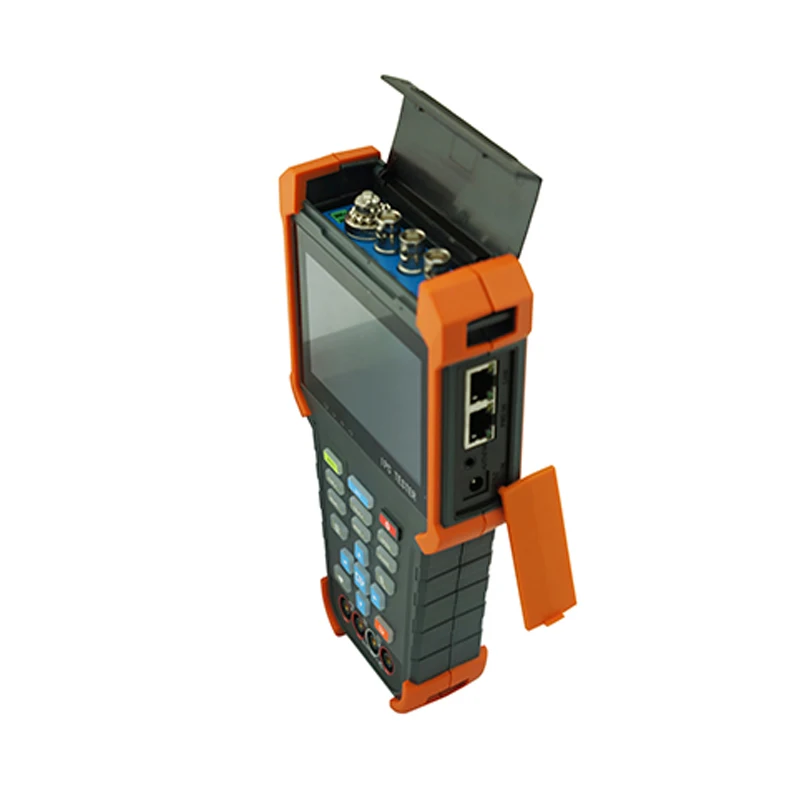

Portable H265 4K HD CCTV Tester with Handheld 4inch IPS Touch Screen Waterproof Dustproof Support DC12V3A DC48V PoE Power Output
Technical Details
| AXIS, Hikvision camera test: | enter ONVIF app, input username and password to test |
| Backlight buttons: | easier to operate in the dark |
| Brand Name: | cctung |
| Built in Wi-Fi: | display image from the wireless camera, create WIFI hotspot |
| CVBS camera test, PTZ controller: | DC12V/3A power output,camera can be powered from DC 12Votage |
| CVBS loop test: | Tester send & receive color bar generator signal, to check BNC cable |
| DC12V 3A, DC 48V PoE power output: | RJ45 cable TDR test, cable quality test |
| Engineer project application: | Network cabling project installation and maintenance |
| H.265 4K HD CCTV Tester: | Handheld 4inch IPS Touch Screen Waterproof Dustproof Interface |
| H.265/H.264, 4K video display: | 8MP TVI, 8MP CVI, 5MP AHD & SDI/EX-SDI test |
| HDMI Input, support 1080P: | Chrome browser, test and set Axis camera |
| HD SDI/EX-SDI Camera Test: | support 1080P 50/60 FPS |
| inch IPS touch screen: | 800*480 resolutions |
| Interface waterproof and dustproof: | Rapid ONVIF& HD camera's Lens simulation and focus function |
| IP & analog display image: | IPC TEST (Non-ONVIF test) ,HIK test tool (Hikvision camera),DH test |
| Lens: | 3.6mm |
| Len simulation: | simulate different lenses display area supported lens 2.8/3.6/4/6/8 |
| Maximum IR Distancem: | 10-20m |
| Model Number: | X4 |
| MP AHD test: | 2560x1944P12.5F/ 20fps, 4xzoom, video record & playback, coaxial PTZ |
| MP CVI test: | 3840 x 2160P 12.5/15fps, 4xzoom, video record& playback, coaxial PTZ |
| MP TVI test: | 3840x2160P 15 fps,4xzoom, video record &playback ,coaxial PTZ control |
| Plug Type: | EU Plug |
| PTZ Controller: | CCTV system installation and maintenance |
| Rapid ONVIF: | Auto log in and display image, create testing report |
| Rapid video: | just by one key to detect all network cameras and auto display |
| Sensor Size: | 1/3 inch |
| Sensor type: | Sony CCD |
| Tester Play: | Tester, mobile phone, PC display at the same time |
| Video transmission channel testing: | Dome camera, IP TVI CVI AHD SDI 4K H.265 camera testing |
