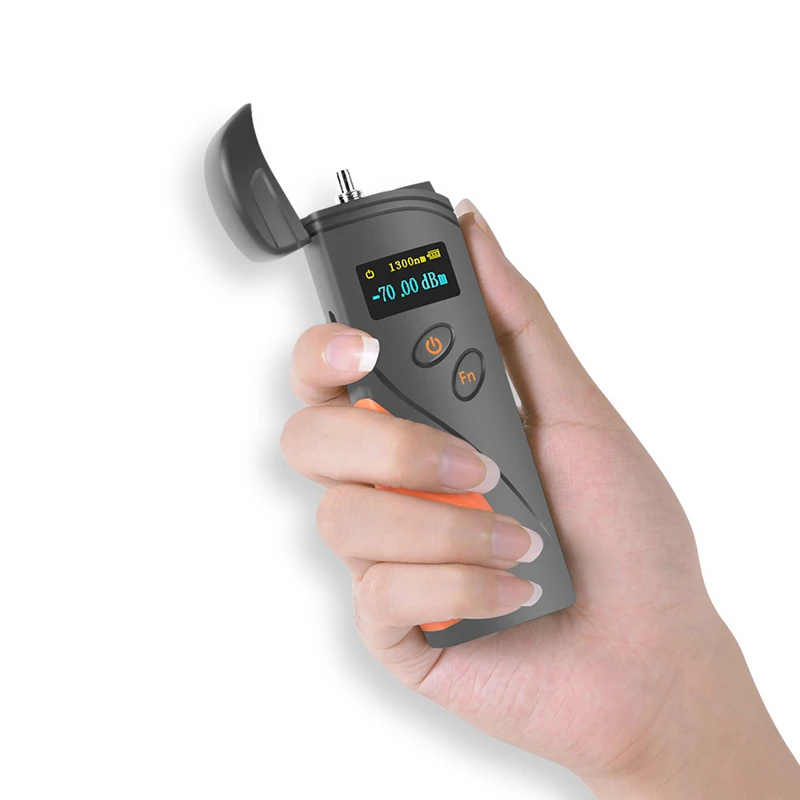

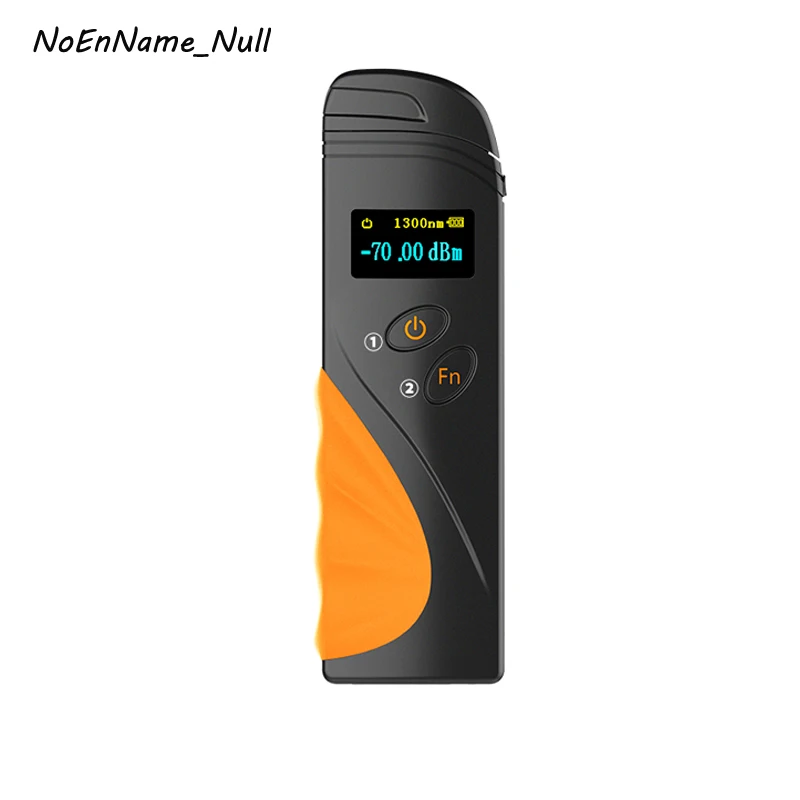

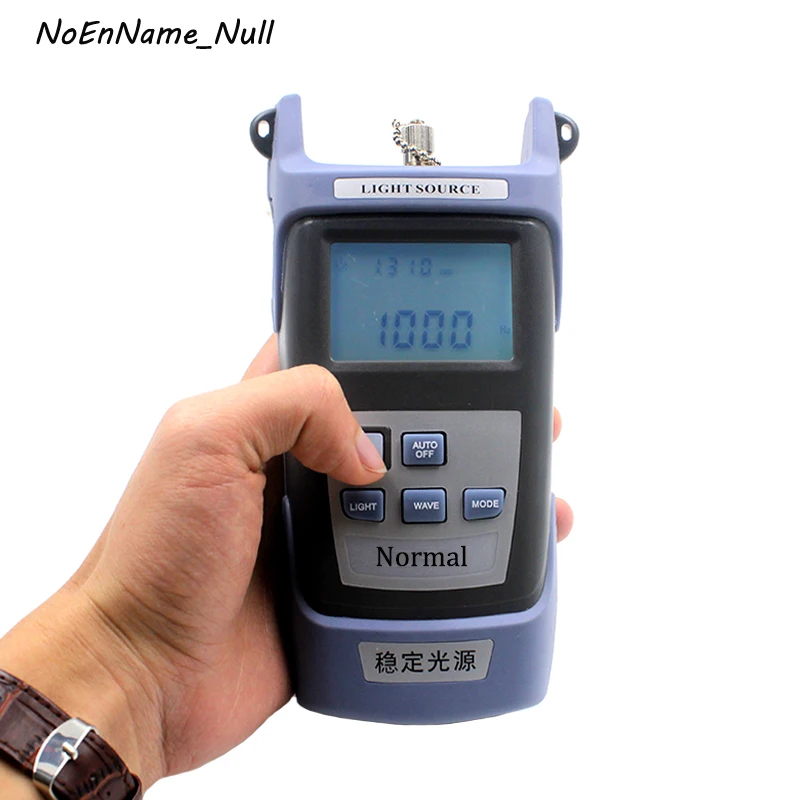

Portable Fiber Optical Power Meter Fibra -70~+3dbm Mini OPM and Handheld Stable light source FTTH Fiber Optic Cable Test tool
Technical Details
| Auto off time: | 10 minutes |
| Auto Switch-off Timemin: | 10min |
| Battery Operating Time: | 45 hours |
| Battery working timeh: | 48hrs |
| Connectors: | FC / PC |
| Connector Type: | SC/FC/ST |
| Display resolution: | Linear indication 0.1%; Logarithmic indication 0.01dBm |
| Fiber Type: | SM |
| Frequency identification HZ: | 0/270/1000/2000 |
| Illumination brightness: | 5000mcd |
| Input Voltage: | 3~6 |
| Item Length: | 1m |
| Mini Optical Power Meter Parameter: | Optical communication equipment |
| Model Number: | Mini OPM + Stable light source |
| Modulation: | CW / 270 / 1K / 2K |
| PON light special: | 1310 / 1550nm |
| Power Supply: | AA Battery * 3 |
| Power Supply: | AAA battery *2 , rechargeable lithium battery and external input |
| Red Power: | 10MW 20MW 30MW |
| Save the number of date pcs: | 20000 |

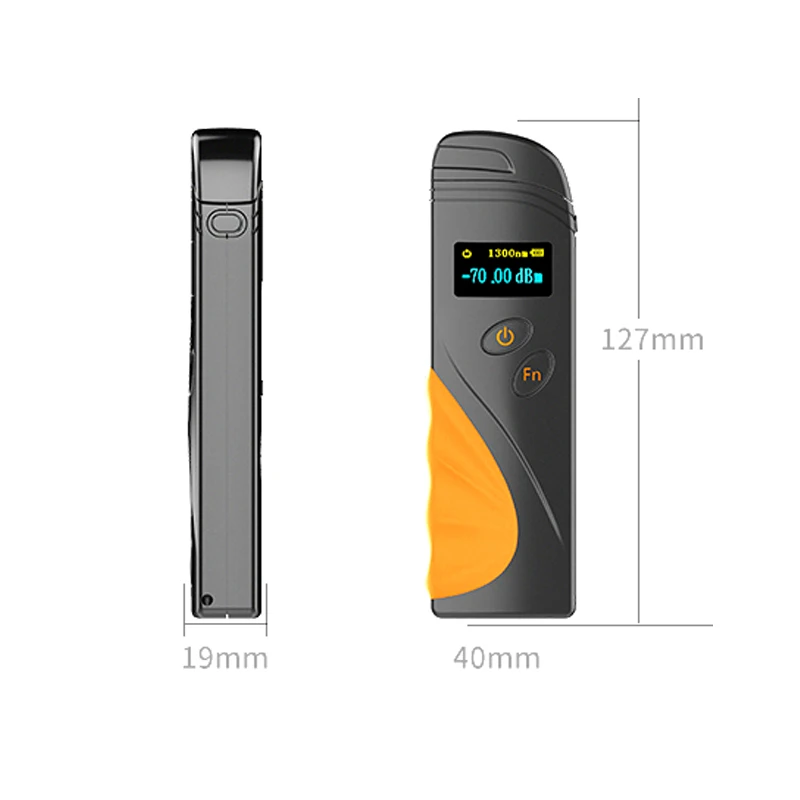

| Size: | OPM: 40x17x125mm Stable light source: 190X100X48MM |
| Stable light source Parameter: | Fiber optical equipment |
| Standard Wavelengthnm: | 850/980/1300/1310/1490/1550/1625 |
| Storage temperature: | -20~+70 |
| Storage temperature: | -25~+70 |
| Test Range: | A(-70~+3dbm) B(-50~+20dbm) |
| The light emitting device: | FP-LD |
| Type: | Stable light source |
| Type of Detector: | InGaAs |
| Uncertainty: | -5%~+5% |
| Wavelength Range: | 800~1700nm |
| Weight: | 400g |
| Working Temperature: | -10~+60 |
| Working Wavelength: | 1310 / 1550nm |
| Working Wavelength of red lightnm: | 650 |
