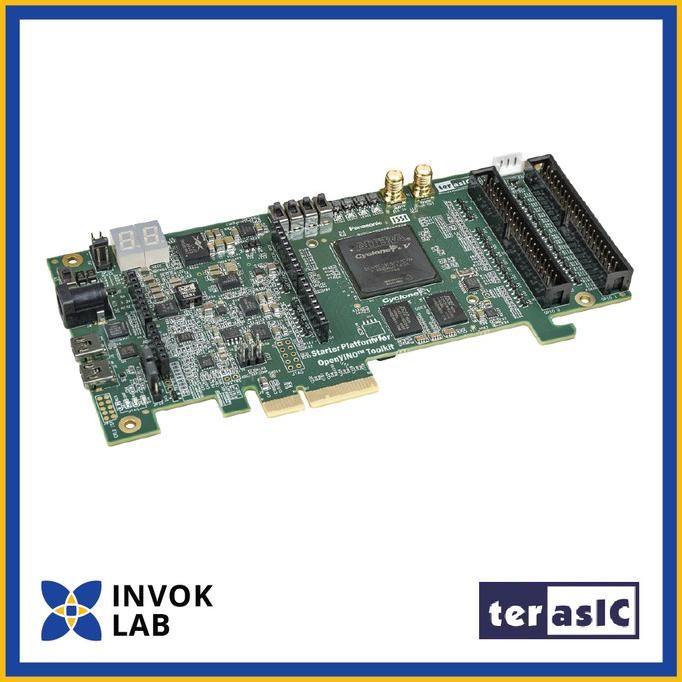

Starter Platform for OpenVINO™ Toolkit is a PCIe based FPGA card with high performance and competitive cost. It's equipped with the largest Cyclone V GT（or GX）device at 301K LE and it supports PCIe Gen 2 x4(GX device will support PCIe Gen 1 x4). The board comes with 1GB DDR3, 64MB SDRAM, UART-to-USB interface, and extension headers such as GPIO and Arduino. This makes Starter Platform for OpenVINO™ Toolkit a re-configurable platform with adequate computing performance and low power consumption.
The package of Starter Platform for OpenVINO™ Toolkit includes reference designs for all the peripherals onboard. It also has a detailed user manual for developers to follow and start building up a system according to their needs immediately.
The Starter Platform for OpenVINO™ Toolkit is a perfect starting point as OpenCL HPC (High Performance Computing) development platform. It supports Intel FPGA OpenCL BSP for developers to design a system with high level programming language. The computation demanding tasks can be off-loaded from CPU to FPGA, resulting in significant system performance improvement.
FPGA Device
Cyclone V
301K Programmable Logic Elements
13,917 Kbits embedded memory
Eight Fractional PLLs
Two Hard Memory Controllers
Nine Transceivers (the GT speed is 6.144G, and GX speed is 3.125G )
Configuration and Debug
Quad Serial Configuration device-EPCQ256
On-Board USB Blaster II (Mini-B USB connector)
Memory Device
64MB (32M x16) SDRAM
1GB (2 x256M x16) DDR3 SDRAM
Communication
UART to USB（Mini-B USB connector）
GT device supports PCIe Gen2x 4(GX device supports PCIe Gen1x 4)
Expansion I/O
2 x40 GPIO Header
36 General GPIO Pins
Support 8 pairs LVDS TX and 8 pairs LVDS RX
Diode protection circuit
Configurable I/O standards: 1.5/1.8/2.5/3.3V
One Arduino Uno Revision 3 Expansion Hearder
Analog ADC
SPI Interface
Eight Channels
Analog Input Range：0 ~ 4.096 V
Resolution: 12-bit
Digital IO
Diode protection circuit
SMA IN/OUT 3.3V single port
Switches, Buttons, LED, and 7-Segments
5 User Buttons (4 normal buttons, one CPU_RESET_n)
4 User Switches
4 LEDs
2 7-Segments
Power
12V DC input
PCIe 12V Input
Cooling
