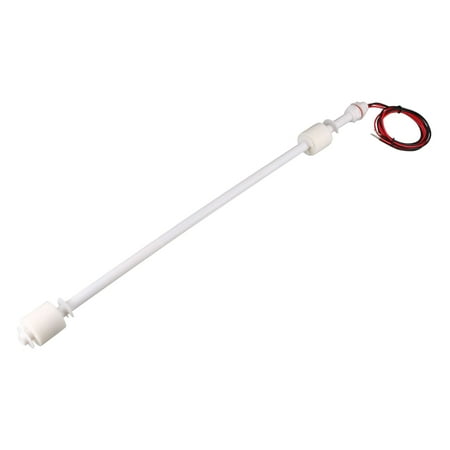

PP Dual-Ball Float Switch 365mm Fish Tank Vertical Liquid Water Level Sensor

Specifications: Product Name: Float Switch Float Ball Number: 2 Max Contact: Rating 10W Max Switching Voltage: 110V DC Max Switching Current: 0.5A Max Breakdown Voltage: 220V DC Max Carry Current: 1.0A Max Contact Resistance: 100mohm Temperature Rating: -10 ~ +60 C Float Ball Material: PP Float Ball Size(Approx): 22x21mm/0.87x0.83inch(Dia*H) Thread Size(Approx): 10mm/0.39inch Total Length: 365mm/14.37inch Cable Length: 400mm/15.75inch Net Weight: 45g Package Content 1 x Float Switch Description: A float switch is a device used to sense the level of liquid within a tank. The switch may actuate a pump an indicator an alarm or other device. It can be easily converted from normally open to normally close by inverting the float. The versatility of this vertically monted sensor means that it can be installed either at the top or base of your tank depending on whether you wish to detect the water is rise or fall. Note: because the current that the switch can carry is much little(0.5A) you must use a relay or contactor when it is connected by a load relay and contactor are not included here. Feature: This float switch is a simple structure easy installation liquid level controller.It does not have a complex circuit will not be disturbed as long as the material selection liquid pressure or temperture can be used in any environment. Light weight and simple working principle high reliability. The float level switch is widely used in electronic electrical chemical water treatment drainage and other walks of life level control and alarm.
