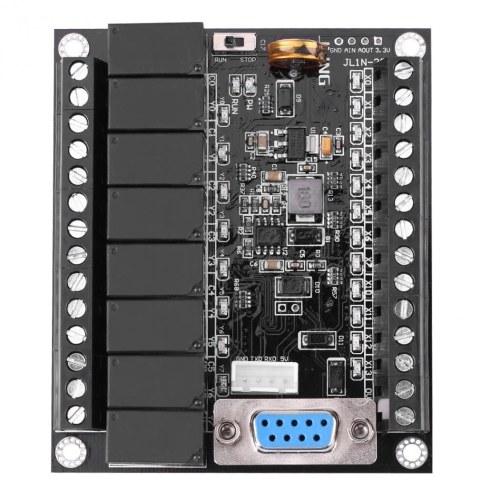

PLC Programmable Controller DC24V Relay Module Multifunctional Control Board

Features:
Some of the common features are shown as follows:

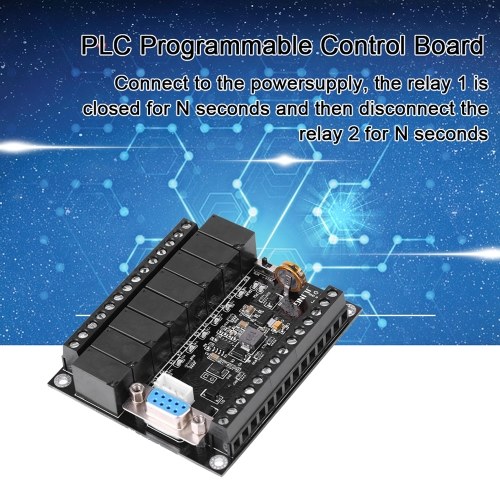

Connect to the powersupply, the relay 1 is closed for N seconds and then disconnect the relay 2 for N seconds.
Connect to the powersupply, the relay 1 is switched off after N seconds, and then the relay 2 is closed for N seconds and then is turned off.
Connect to the powersupply, the relay 1, 2 have no action, when a signal or trigger button, relay 1 closed off after N seconds; then relay 2 closed off after N seconds, until the next-trigger, repeat the same action.
Through the signal 1, 2 programming, the control can be achieved on the relay 1 and 2 arbitrarily.
When the signal 1 has a signal, the relay 1 is closed, the relay 2 is disconnected; when the signal 2 has a signal, the relay 1 is turned off, and the relay 2 is closed.
Can be connected to the NPN sensor signal, the sensor signal programming, to achieve arbitrary control of the relay.
When the signal 1 is triggered, the relay 1 is controlled, and when the signal 2 is triggered, the relay 2 is controlled.
Connect to the powersupply, the control motor is turning N seconds, and then reverse N seconds, followed by the cycle.
When the signal 1 has a signal, the motor is controlled to rotate; when the signal 2 has a signal, the motor is reversed.
These are just some examples, modules can achieve far more than these functions.
Input high speed pulse C235, C251 and compatible with FX1N.
Output relay 1A output, Rated current 5A, can directly driveDC solenoid valve, AC solenoid valve, AC contactor, AC motor, etc..
Precautions for use:

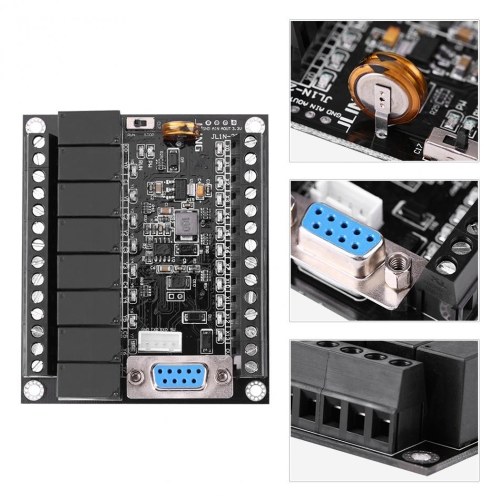

The PLC with two programming port. One is 232 interface, you can directly use the USB-232 serial port with a computer to download the program directly. The other is TTL interface.
Built-in 1 Analog-input AD, corresponding to internal data register D5030.(Not D8030)
Built-in 1 Analog-output DA, corresponding to internal data register D5101.
When the PLC need to connect with the touchscreen or text, can be used to connect 232 programming port, TTL port can be used to connect our company's simple text.
