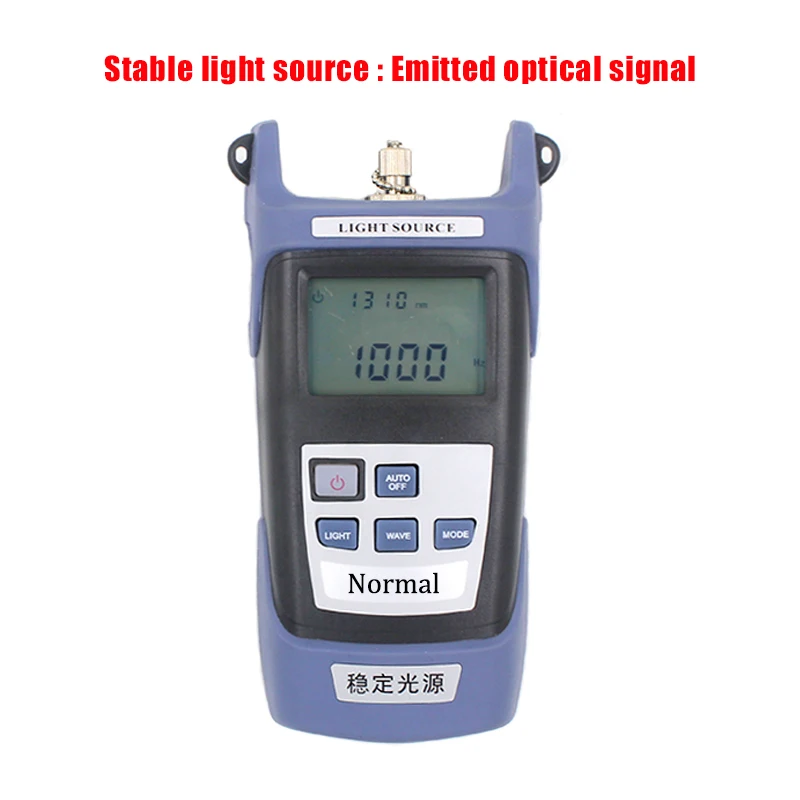

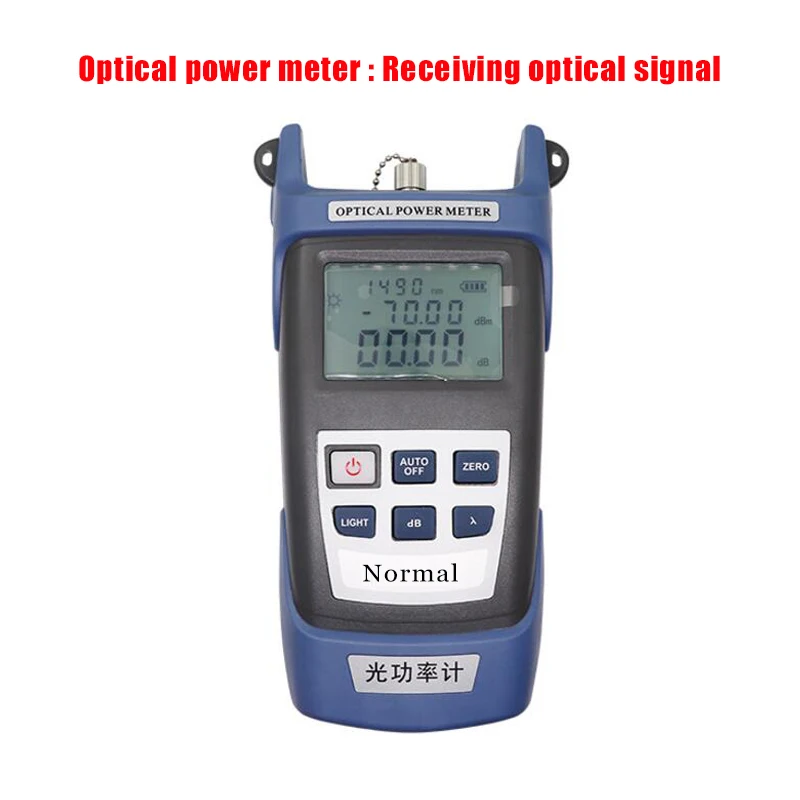

Optical Power meter Receiving light source , Hand-held stable light source Emission Light Source 2-in-1 Fiber optical equipment
sku: 33012611761
ACCORDING TO OUR RECORDS THIS PRODUCT IS NOT AVAILABLE NOW
$114.51
Shipping from: China
Technical Details
| Auto off time: | 10 minutes |
| Auto Switch-off Timemin: | 10min |
| Battery Operating Time: | 45 hours |
| Battery working timeh: | 48hrs |

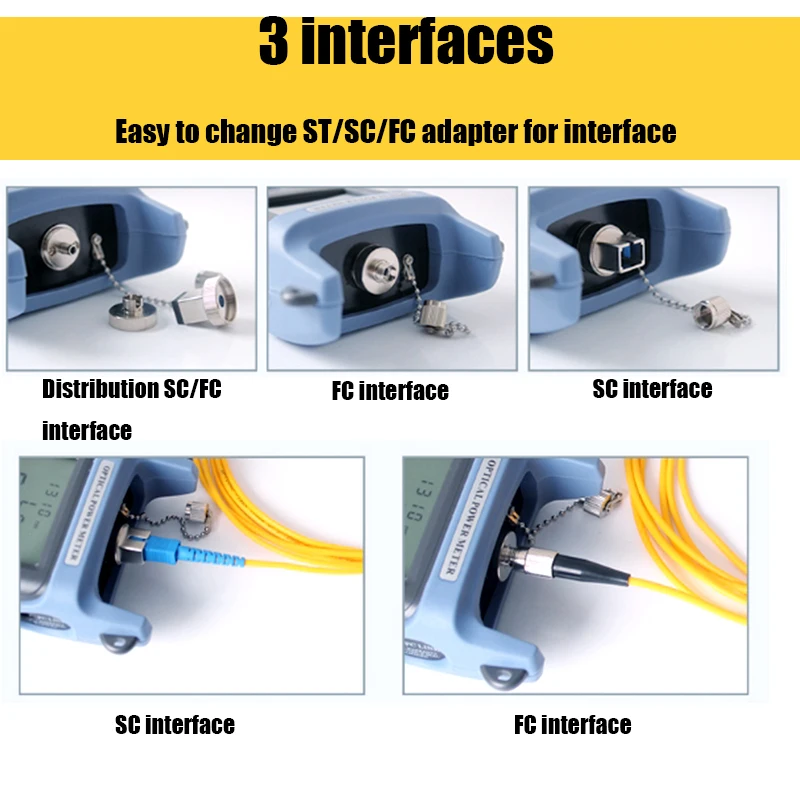

| Connectors: | FC / PC |
| Connector Type: | SC/FC/ST |
| Display resolution: | Linear indication 0.1%; Logarithmic indication 0.01dBm |
| Fiber Type: | SM |
| Item Length: | 1m |
| Model Number: | OPM+Stable light source |
| Modulation: | CW / 270 / 1K / 2K |
| Optical Power Meter Parameter: | Optical communication equipment |
| PON light special: | 1310 / 1550nm |
| Power: | AA battery *3 or rechargeable lithium battery |
| Power Supply: | AA Battery * 3 |

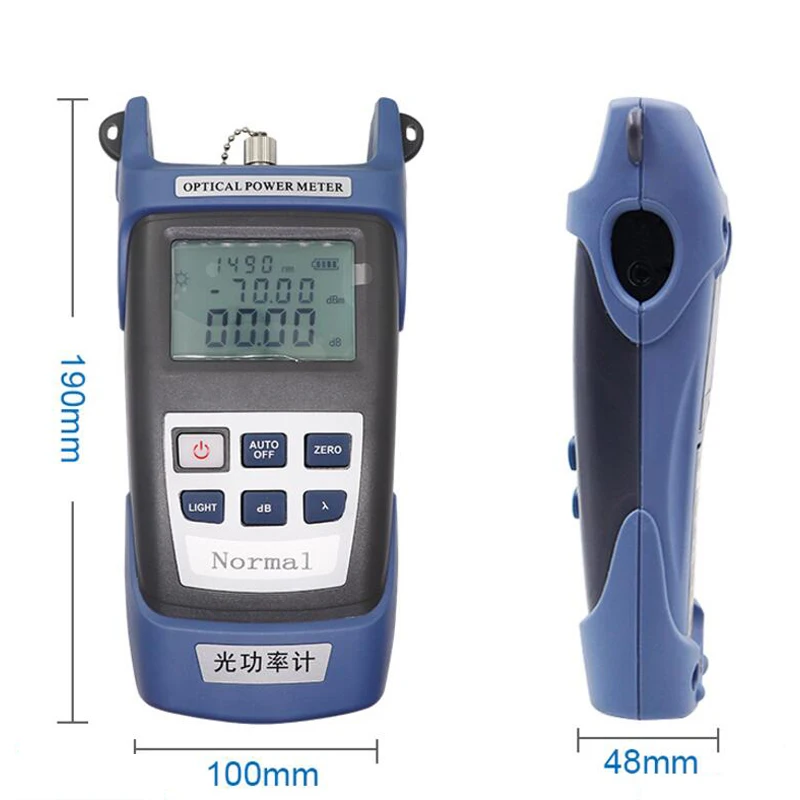

| Product size: | 190X100X48MM |
| Size: | 190X100X48MM |
| Stable light source Parameter: | Fiber optical equipment |
| Standard Wavelengthnm: | 850/980/1300/1310/1490/1550/1625 |
| Storage temperature: | -20~+70 |
| Storage temperature: | -25~+70 |
| Test Range: | A(-70~+3dbm) B(-50~+20dbm) |
| The light emitting device: | FP-LD |
| Type: | Stable light source |
| Type of Detector: | InGaAs |
| Wavelength Range: | 800~1700nm |
| Weight: | 400g |
| WEIGHTg: | 370 |
| Working Temperature: | -10~+60 |
| Working Temperature: | -20~+60 |
| Working Wavelength: | 1310 / 1550nm |
