Multifunctional Mini Cross Work Table X/Y Axis Adjustable Worktable Bench, 501 Original

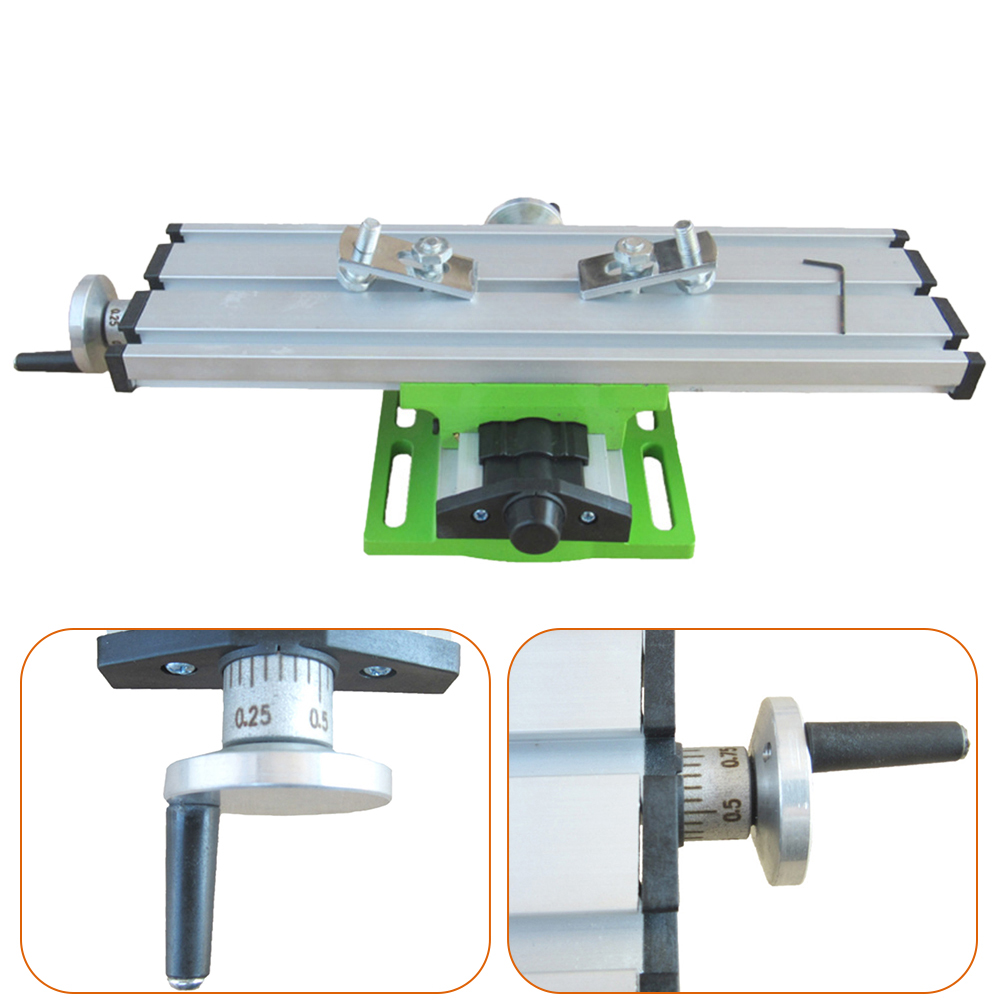

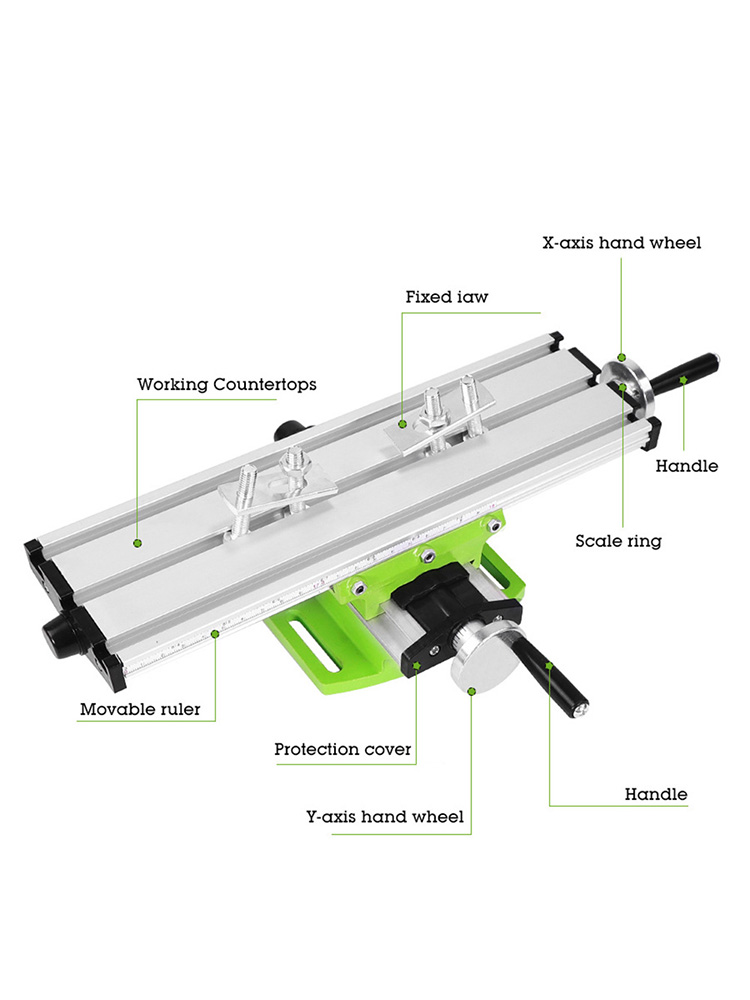

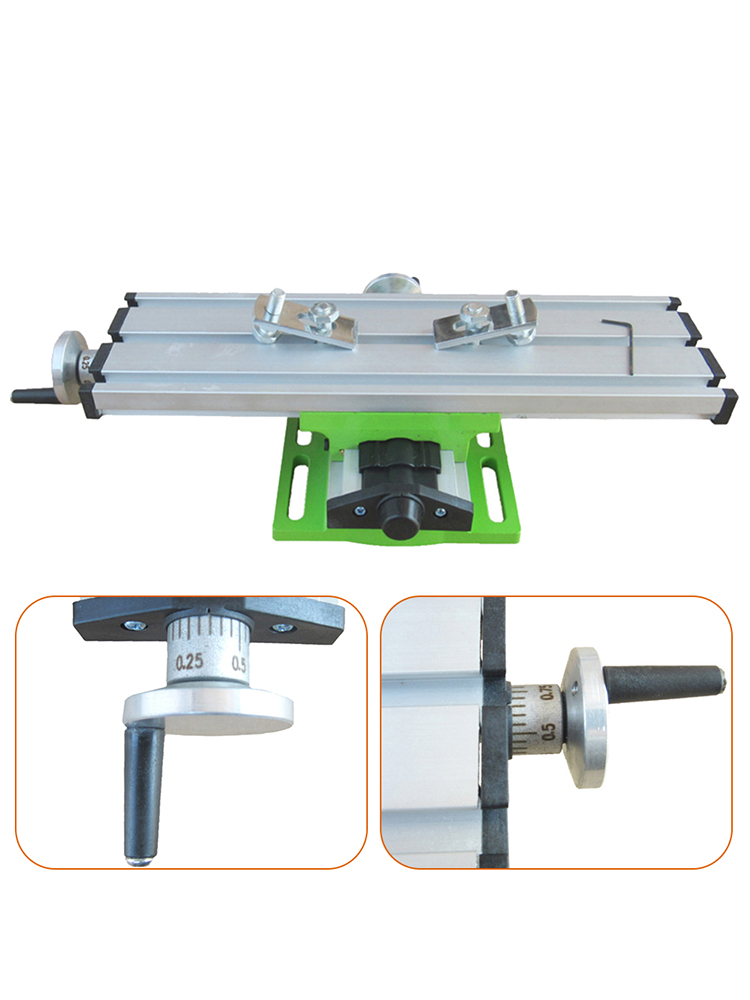

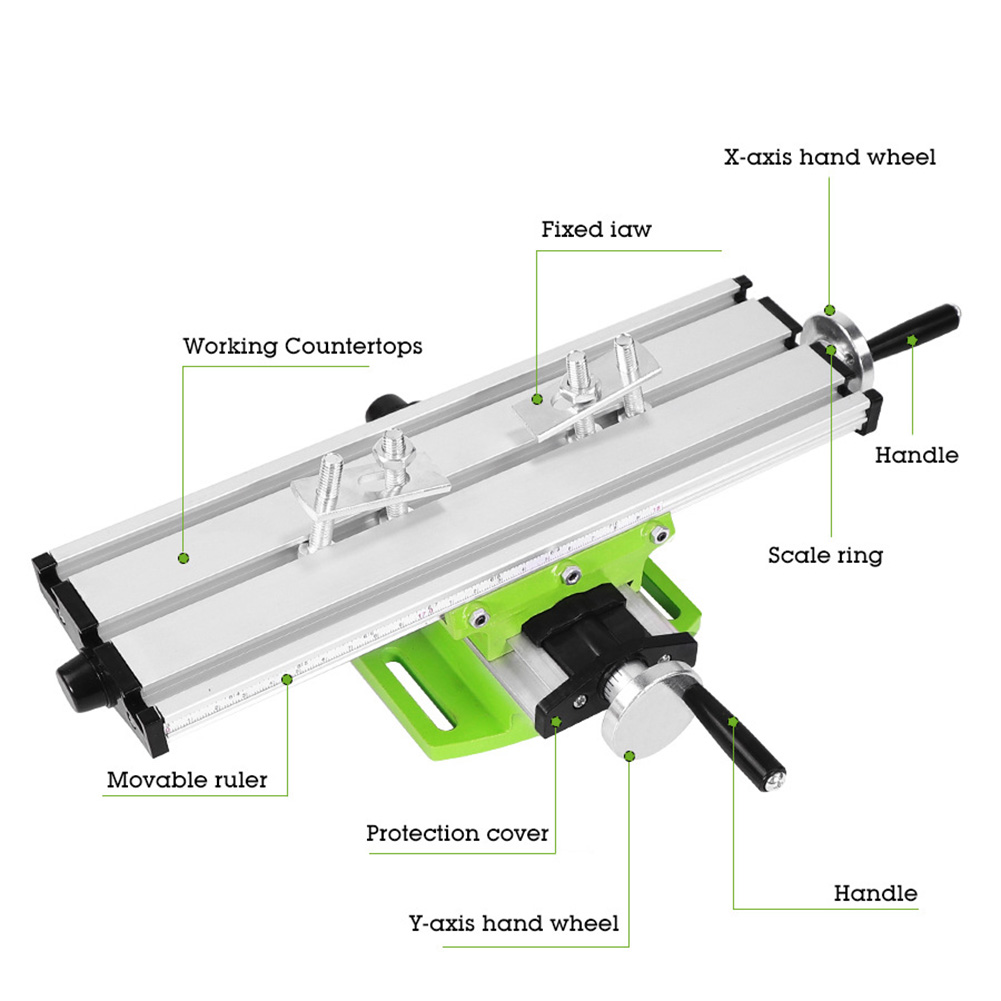

Multifunctional Mini Cross Working Table X/Y Axis Adjustable Home Micro Milling Drill Machine Worktable BenchFeature:The worktable is suitable for micro bits and bit supports. It can also be applied to other suitable machines. The worktable is composed of several aluminum alloys with adjustable dovetail grooves, which can ensure the minimum space and precision. The worktable has three T-shaped grooves. The scale is in front of the movable positioning. Zero the handwheel and rotate the 1.25mm once. The distance of X axis is 200mm and the distance of Y axis is 50mm. The workbench size is 310 x 90mm and includes two work clips.Specification: Table size: 310*90*70mm/12.2*3.54*2.76inX-axis stroke: 200mm/7.87inY-axis stroke: 50mm/1.97inNotch pitch: 34mm/1.34in1 ring=1.25mm1 scale=0.05mmNote:Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!Please allow 1-2cm measuring deviation due to manual measurement.Package Content:1 X Cross Table1 X Instruction Manual
