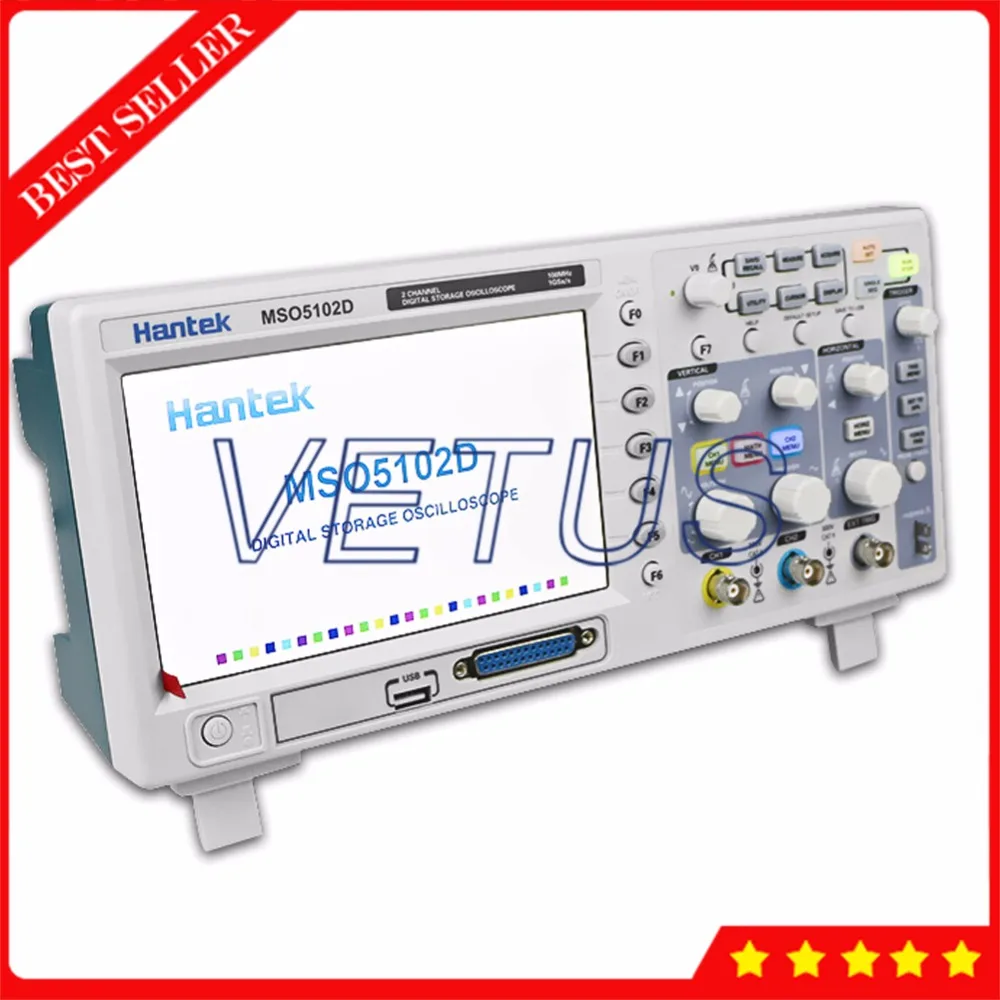

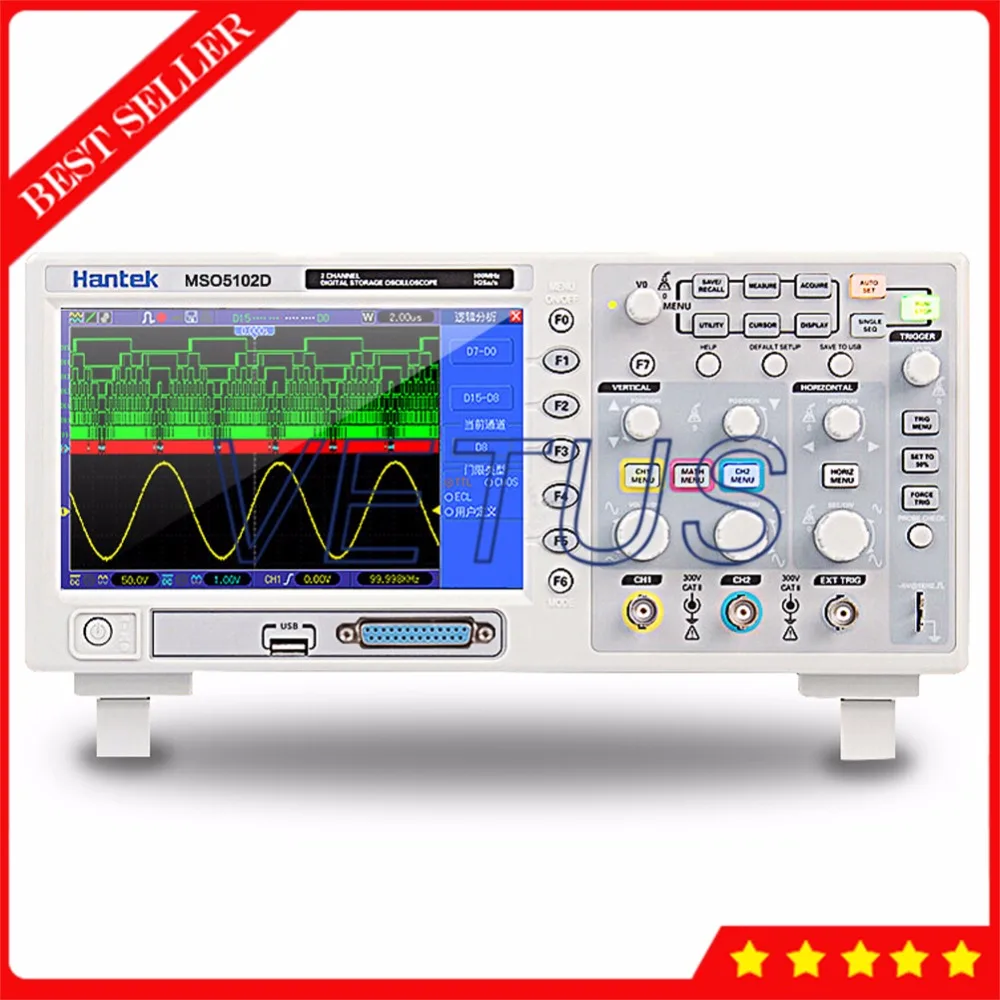

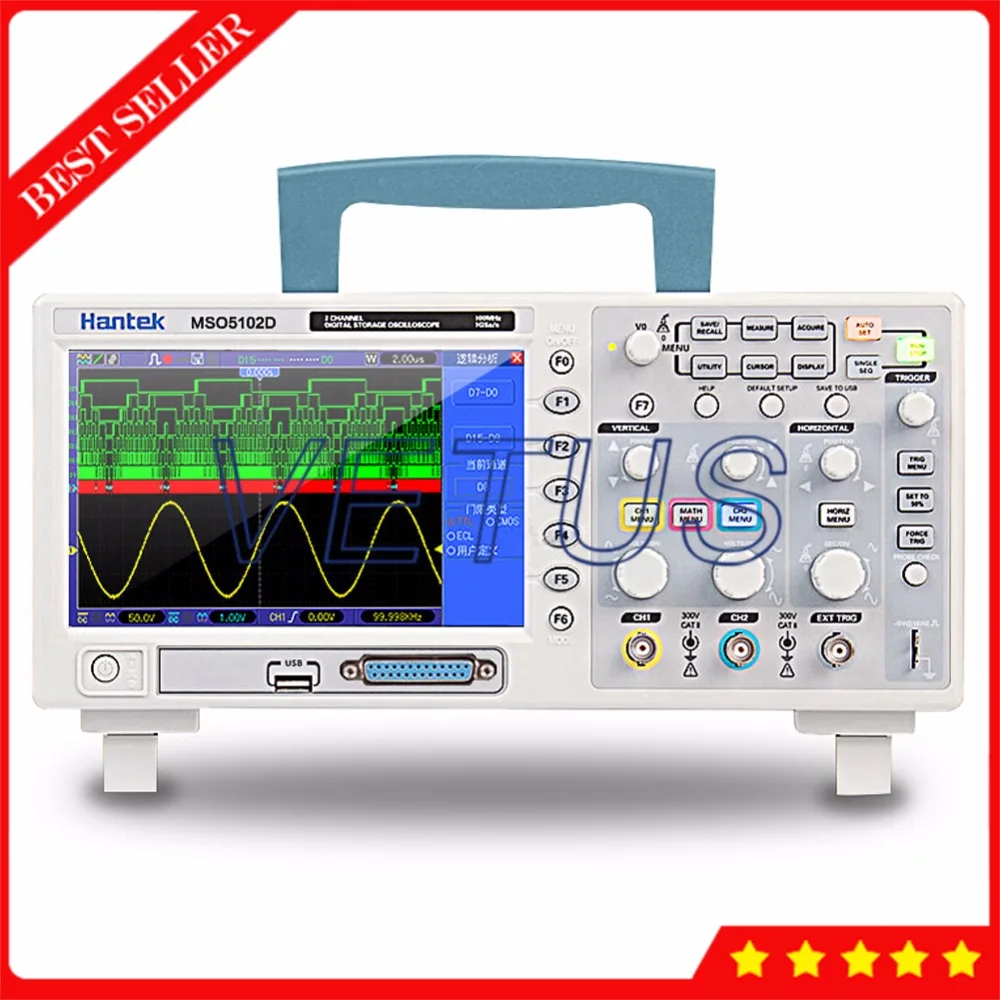

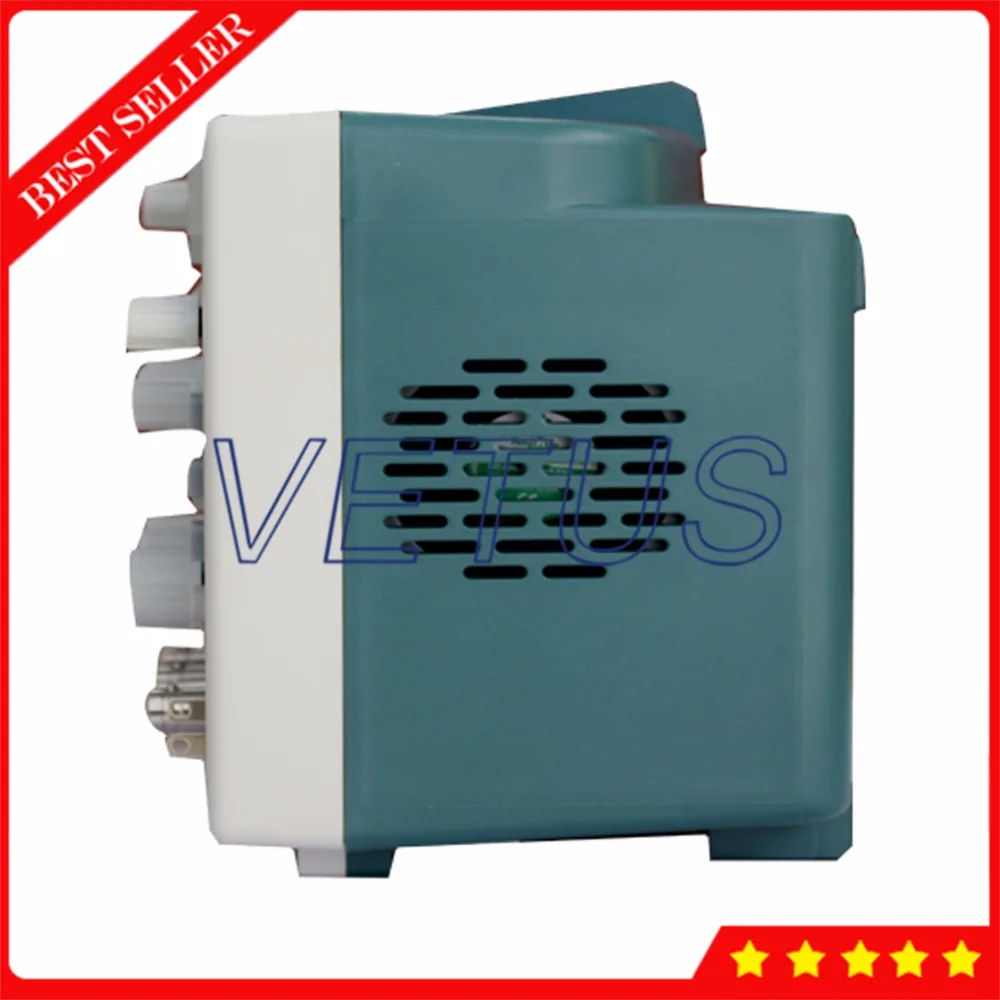

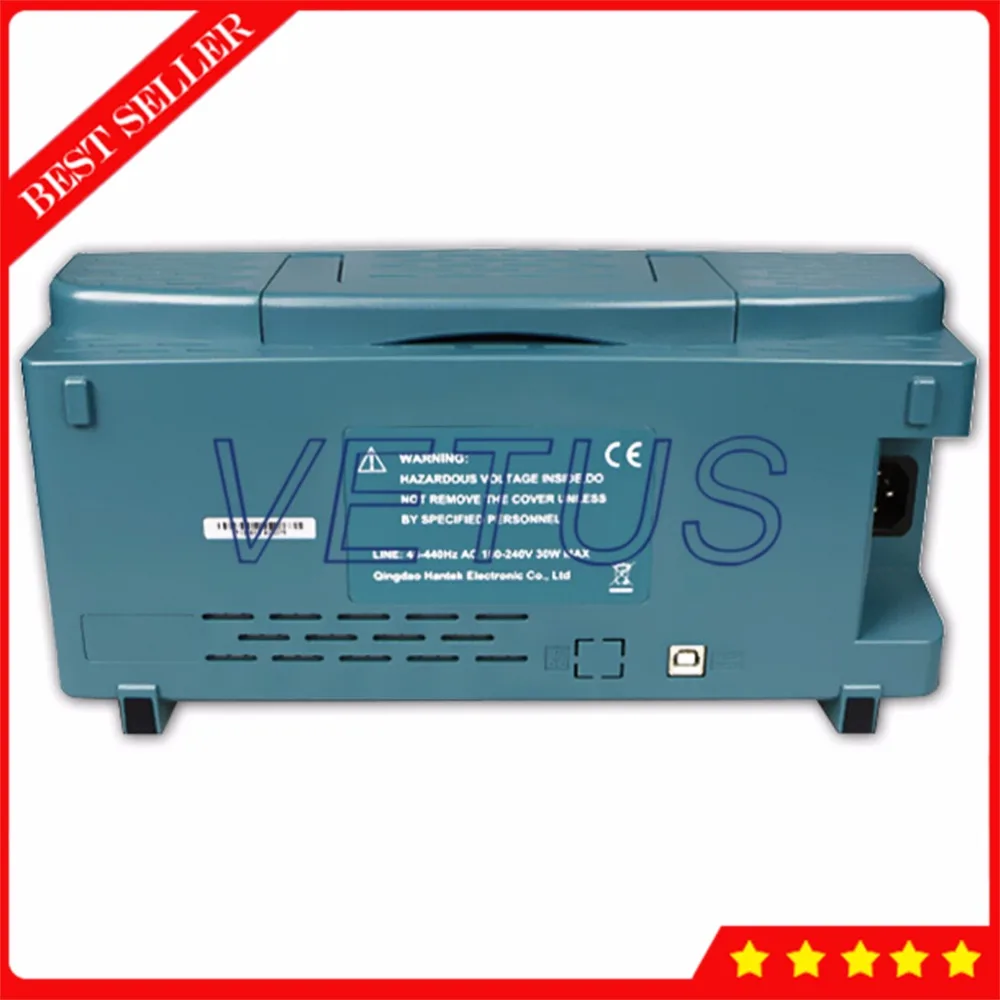

Mixed Signal Portable oscilloscope 100MHz 2 Ch 1GSa/s Digital osciloscopio with MSO5102D 16 CH Logic Analyzer External Trigger

Mixed Signal Portable oscilloscope 100MHz 2 Ch 1GSa/s Digital osciloscopio with MSO5102D 16 CH Logic Analyzer External Trigger
thumb
thumb
thumb
thumb
thumb
thumb
sku: 32846332709
ACCORDING TO OUR RECORDS THIS PRODUCT IS NOT AVAILABLE NOW
$502.98
Shipping from: China
   Technical Details
Average: Waveform Average, selectable 4,8,16,32,64,128
Band Width: 100MHz
Bandwidth Limit: 20MHz
Brand Name: Hantek
Country Of Origin: CN
Digital Channels: 2
Display resolution: 800*480 Pixels
Display Size: 7 Inches & Above
DIY Supplies: Electrical
Inputs Coupling AC, DC, GND: Inputs Coupling AC, DC, GND
IS Battery Demountable: No
Max Waveform Capture Rate: 30,000wfm/s
Model Number: MSO5102D
Readout Resolution: 6 digits
Real Time Sampling Rate: 1GSa/S
Record Length: 1M
Rise Time at BNC typical: 3.5ns
Sample Rate and Delay Time Accuracy: +/-50ppm
SEC/DIV Range: 4ns/div to 40s/div
Trigger types: Edge, Video, Pulse, Slope, Over time, Alternative
