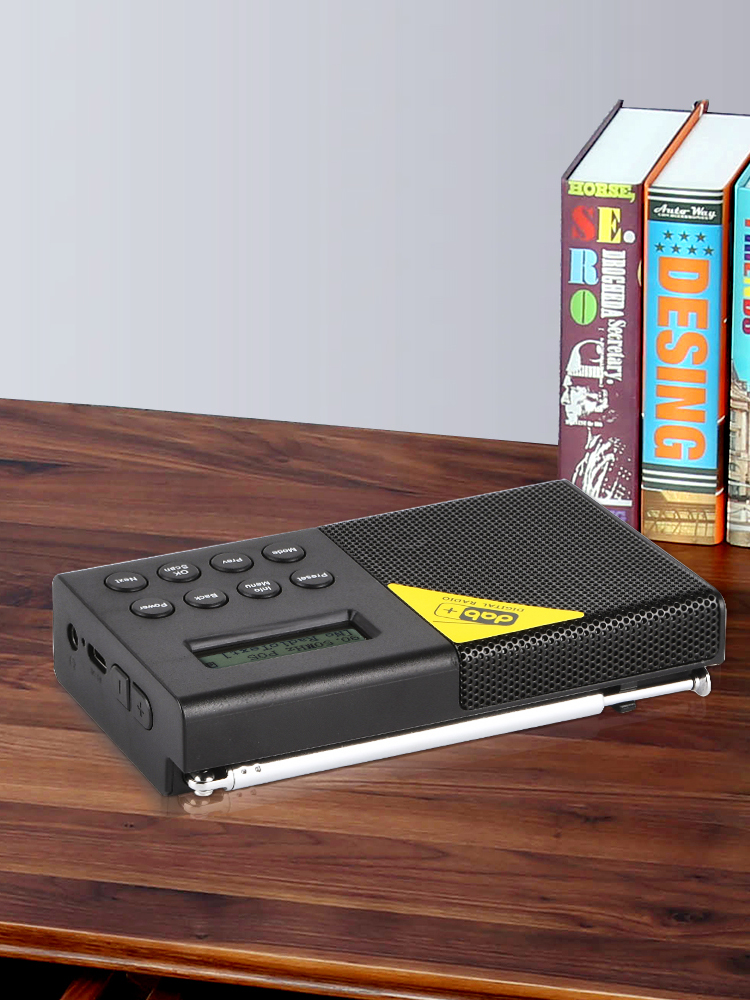

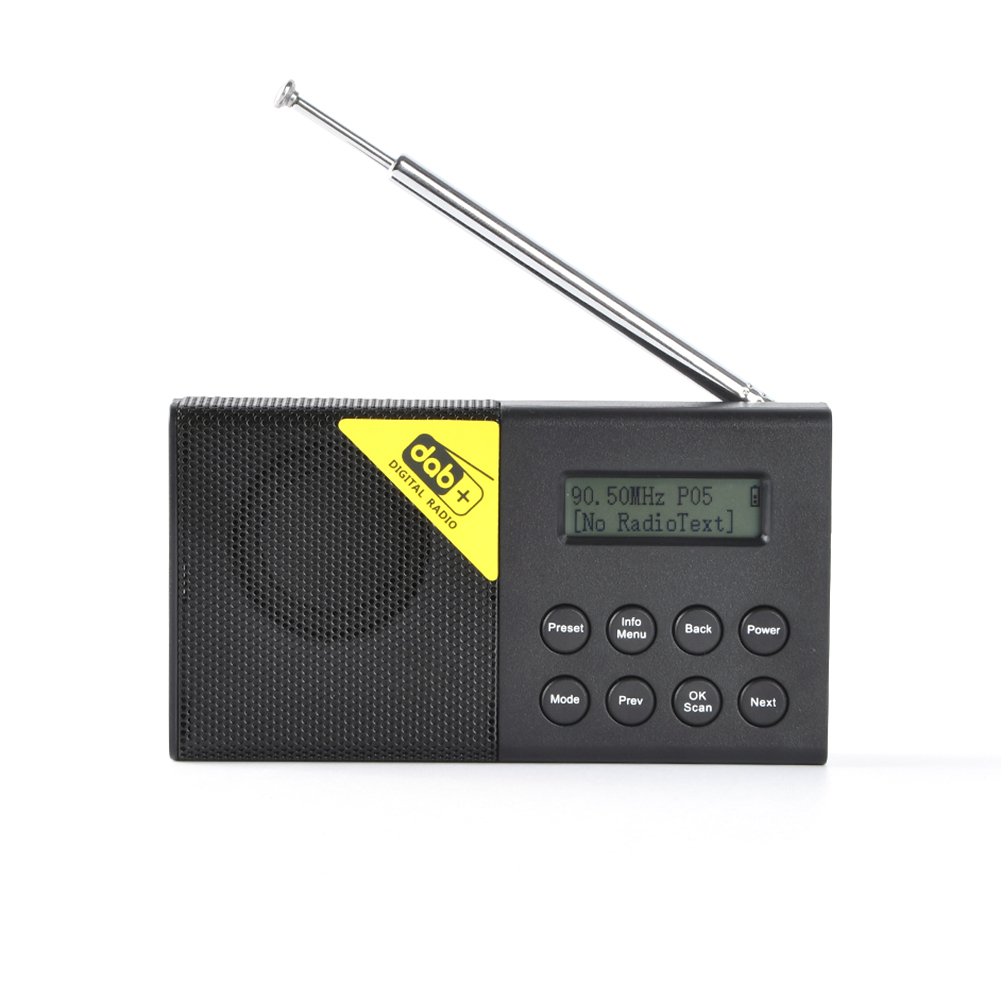

Mini Portable Digital Radio 3.5mm Stereo FM DAB Alarm Clock Radio Player, 501 Original

Mini Portable Digital Radio 3.5mm Stereo Bluetooth-compatible 5.0 FM DAB Alarm Clock Radio Player with Telescopic AntennaFeature:1. This unit is equipped with DAB/DAB+ and FM receiver.2. Play music via Bluetooth-compatible connected phone.3. 3.5mm stereo headphone output.4. The product is equipped with a Bluetooth-compatible transmitter function, which can transmit sound to Bluetooth-compatible headphones, Bluetooth-compatible speakers and other devices for listening.5. Reminder: This product is only applicable to Europe.Specification:Model: DAB-PC3Application: This digital audio broadcasting equipment is fully compliant with the DAB ETSI 300 401 standard. Support ETSI TS102 563 DAB+ standardFM frequency range: 87.5-108MHzDAB frequency range: 170-240MHzReceive sensitivity: -99dBmBluetooth-compatible version: v5.0Input and output: Micro USB 5V DC-in; 3.5mm stereo headphone outputAntenna Input: Telescopic AntennaBattery capacity: Built-in 2000mA 3.7V 18650 lithium batteryTemperature: 0℃ - 45℃Storage temperature: -20℃-70℃Type-C Jack : 5V DC-in battery chargingHeadphone jack: Plug in headphones, the sound is output only from the headphones.Weight: 180gSize: 12x6.5x2.4cmInstructions:Power: Press and hold the mode button for 3 seconds to power on, then long press to power off.Presets: Preset up to 40 channels on DAB and FM. In Dab and FM mode, long press to store the program and short press to recall the program.INFO/Menu: Short press to view program information, long press to enter the setting menu.Back: Exit the menu or return to the previous levelOK/Scan: Long press for 3 seconds in DAB and FM mode to automatically searchPrevious: Previous channelNext: Next channelVol+/-: Turn the volume up or downMode: Short press DAB.FM.BT mode to cycle throughSET UP: Long press the information/menu to enter the setting interface1. Full scan: Short presets can search automatically. The function is the same as long press the scan button2. Manual tuning: Manually select frequency search.3. Prune: Choose whether to delete invalid stations4. System: Enter the secondary menu5. Alarms: Alarm setting, alarms 1 and alarms 26. Sleep: Sleep power saving settings7. Time/Date: Time and date adjustment and display effect settings8. Backlight: Screen saver and brightness adjustment9. Language: 9 language display options10. Factory reset: Enter the factory reset11. Version: View the version number12. BT switch: Bluetooth-compatible transmitter switch selectionHow to use the Bluetooth-compatible transmitter function:Long press INFO to enter the settings, select the BT switch to turn on or off.When turned on, the product will search for the surrounding Bluetooth-compatible connection automatically. You can also return to the main interface to see the charging symbol and the Bluetooth-compatible symbol flash alternately, indicating that it is searching for a Bluetooth-compatible match.It will not flash after a successful match.DAB/FM mode:1. Short press the MODE function switch key, the screen displays DAB/FM/BT.2. Take out the telescopic antenna.3. Press and hold the SCAN button, the screen scan shows \\\"Scanning...\\\", and the program will be automatically stored.4. Adjust volume +/- and press Previous or Next. You can choose radio stations.Bluetooth-compatible Mode:1. Short press the mode to switch to BT mode, \\\"BT\\\" will be displayed on the screen.2. Turn on the BT switch of the mobile phone and search for \\\"QM_PC3\\\" connection.3. Turn on the music on your phone, then the music can be played on the radio.Note:Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!Please allow 1-2cm measuring deviation due to manual measurement.Package Content:1 X Radio1 X Charging Cable1 X Manual
