MLX90640 2.8-Inch LCD Digital Infrared Thermal Imaging Inspection Tool

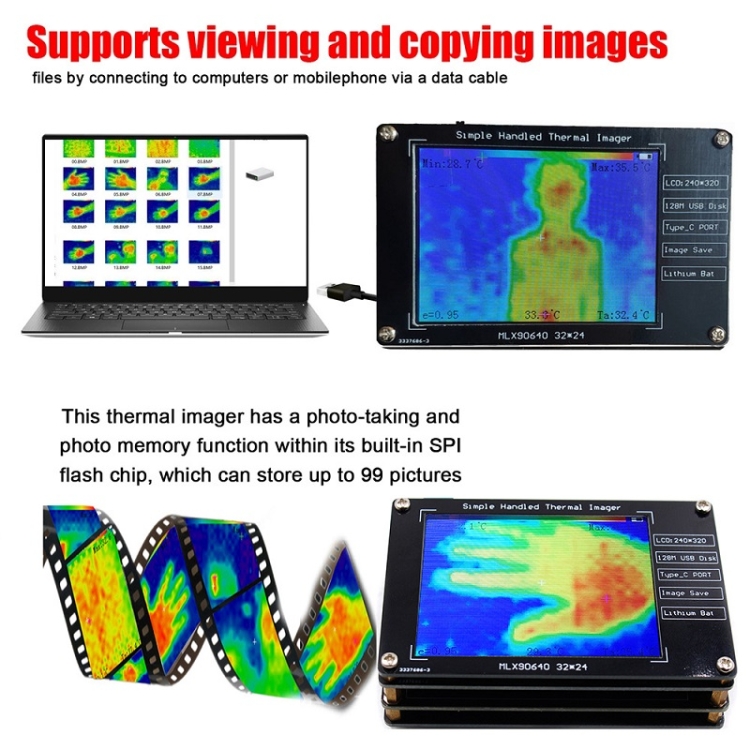

1. Handheld multifunctional thermal imager, with the characteristics of small size and light weight2. With a 2.8-inch TFT display, the data is clear at a glance3. It can be used in many occasions and is an indispensable tool for household and industrial use4. Measuring range -40 to +300 degrees Celsius, 8Hz dynamic refresh rate5. 2.8 inches screen resolution is 320x2406. The screen can display and track temperature (MAX), temperature (MIN) and core point temperature7. The shell is made of FR4 epoxy sheet, which better protects the internal components and has a long service life8. Li-ion battery powered, USB-C charging9. Up to 4 hours of battery life, can be used while charging10. Built-in SPI Flash chip, can store 100 pictures11. View and copy image files by connecting to a computer or mobile phone via a data cable12. Integrated design, no external equipment required13. Material: epoxy resin board + printed circuit board14. Infrared sensor: MLX90640ESF-BAB15. Hardware resolution: 32x24 pixel far infrared array16. Refresh rate: 8Hz17. Field of view: horizontal 55 degrees x vertical 35 degrees18. Emissivity: 0.9519. Charging specification: USB Type-C5V/1A20. Taking pictures: In the power-on state, single press the camera/reset button to save the current image21. View or copy images: After using the USB-C data cable to connect to the computer, single press the mode switch button 22. You can switch to the U disk mode to read or copy images23. Reset: The body can store 99 images. When the storage is full, press and hold the camera/reset button until 24. Release it when the screen flashes, and the device will reset, and it will return to the initial state after about 15 seconds25. Product size: 85x55x30mm26. Battery: 3.7V 800mAh lithium-ion batteryApplication:1. High-precision non-contact temperature measurement2. Security and intrusion detection3. Body temperature detection4. Intelligent building environment temperature measurement and control5. Automobile air conditioning control6. Microwave oven and oven temperature detection and control7. Temperature monitoring of industrial parts8. Visual temperature sensor9. Side leakage and maintenance of floor heating equipment10. Thermal inspection of circuit boards and componentsPacking list:- Thermal Imager x 1- Mirror cloth x 1- USB Type-C x 1
