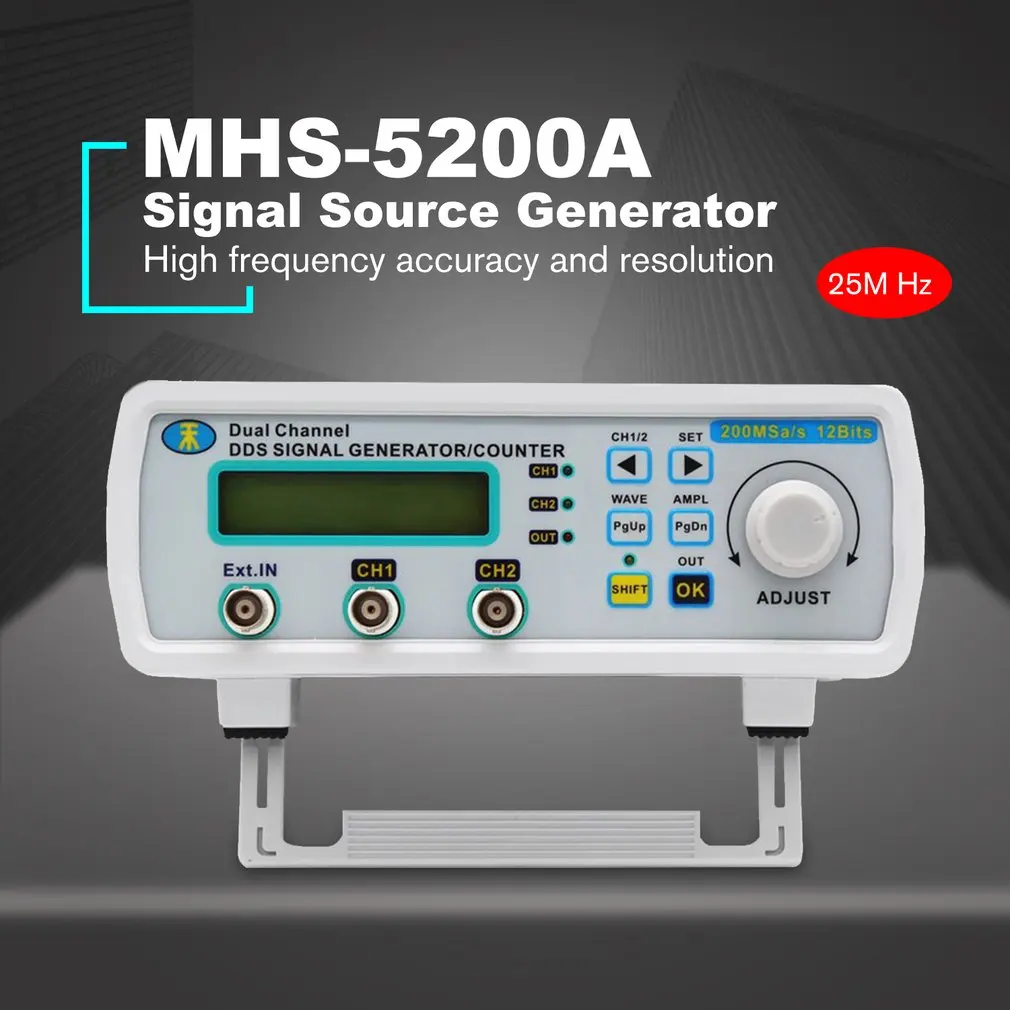

MHS-5200A 25MHz Digital DDS Dual-channel Arbitrary Waveform Functional Signal Generator Frequency Meter High Precision
sku: 4000412523627
ACCORDING TO OUR RECORDS THIS PRODUCT IS NOT AVAILABLE NOW
$48.81
Shipping from: China
Technical Details
| Arbitrary Waveform: | 0Hz~6MHz |
| Bias Resolution: | 0.01 |
| Distortion: | <0.8%(20Hz~20KHz) |
| DIY Supplies: | Electrical |
| Duty cycle adjustment range: | 0%~99.9% |
| Frequency Error: | +/-5*10^(-6) |
| Frequency stability: | +/-1*10^(-6) |
| Harmonic Arrived System: | 40dBc(<1MHz); 35dBc(1MHz~20MHz) |
| High Level: | 1V~7.5V |
| Lifting Along Time: | ≤20ns |
| Low level: | <0.3V |
| Memory Depth/Group: | 1KB/16 |
| Model: | MHS-5200A |
| Offset Range: | -120%~120% (The ratio of bias voltage and signal amplitude) |
| Output Impedance: | 50Ω(+/-10%) |
| Output modulation: | Frequency Sweep |
| Overshoot: | ≤10% |
| Phase Range: | 0~359° |
| Phase Resolution: | 1° |
| Plug: | US/EU/UK/AU(optional) |
| quantity: | 16 |
| Sampling Rate: | 200MSa/s |
| Sawtooth wave: | 0Hz~6MHz |
| Scan mode: | Linear Sweep, Log Sweep |
| Scan Range: | It is determined by the sweep parameter settings |
| Scan time: | 1s-500s |
| Sine wave: | Normal Modes |
| Square Wave: | 0Hz~6MHz |
| The Min. Frequency Resolution: | 10mHz |
| Triangle wave: | 0Hz~6MHz |
| TTL digital signal wave: | 0Hz~6MHz |
| Waveform amplitude resolution: | 8 Bits |
| Waveform length: | 1024Points |
