MHS-5200A 12MHz Digital DDS Dual-channel Arbitrary Waveform Functional Signal Generator Frequency Meter High Precision
sku: 4000104697075
ACCORDING TO OUR RECORDS THIS PRODUCT IS NOT AVAILABLE NOW
$56.62
Shipping from: China
Technical Details
| Arbitrary Waveform: | 0Hz~6MHz |
| Bias Resolution: | 0.01 |
| Brand Name: | ACEHE |
| Communication rate: | 57600bps |
| Counting range: | 0~4294967295 |
| Distortion: | <0.8%(20Hz~20KHz) |
| DIY Supplies: | Electrical |
| Duty cycle adjustment range: | 0%~99.9% |
| Duty cycle measurement: | 0.1% Resolution, Measuring Range from 0.1%~99.9% |
| Frequency Error: | +/-5*10^(-6) |
| Frequency stability: | +/-1*10^(-6) |
| Harmonic Arrived System: | 40dBc(<1MHz); 35dBc(1MHz~20MHz) |
| High Level: | 1V~7.5V |
| Input voltage range: | 0.5Vp-p~20Vp-p |
| Interface mode: | Using USB to Serial Interface |
| Lifting Along Time: | ≤20ns |
| Location: | M0~M9 |
| Low level: | <0.3V |
| Memory Depth/Group: | 1KB/16 |
| Model Number: | MHS-5200A |
| Offset Range: | -120%~120% (The ratio of bias voltage and signal amplitude) |
| Output Impedance: | 50Ω(+/-10%) |
| Output modulation: | Frequency Sweep |
| Overshoot: | ≤10% |
| Package Size: | 240x210x95mm/9.36x8.19x3.71in |
| Package Weight: | 960g/2.12lb |
| Periodic Measurement: | 20ns Resolution, the Max. Measurable 20s |
| Phase Range: | 0~359° |
| Phase Resolution: | 1° |
| Plug: | US/EU/UK/AU(optional) |
| Power Supply: | DC 5V |
| Protocol: | Using the Command Line, the Agreement Public |
| quantity: | 16 |
| Sampling Rate: | 200MSa/s |
| Sawtooth wave: | 0Hz~6MHz |
| Scan mode: | Linear Sweep, Log Sweep |
| Scan Range: | It is determined by the sweep parameter settings |
| Scan time: | 1s-500s |
| Sine wave: | Normal Modes |
| Size: | 19.5 * 17.5 * 7cm / 7.67 * 6.9 * 2.75in |
| Source selection: | 1. Ext. IN Input(AC Signal) ; 2. TTL-IN Input(Digital Signal) |
| Square Wave: | 0Hz~6MHz |
| The Min. Frequency Resolution: | 10mHz |
| Triangle wave: | 0Hz~6MHz |
| TTL digital signal wave: | 0Hz~6MHz |
| Waveform amplitude resolution: | 8 Bits |
| Waveform length: | 1024Points |
| Weight: | 542g / 19.12oz |
Price history chart & currency exchange rate
Customers also viewed
$21.86
women sets drawstring autumn white long sleeve hooded pullovers sweatshirt pocket mini skirt two piece lace up skirt and t200325
dhgate.com
$5.74
Спортивные компрессионные носки серии Gradient, однотонные спортивные носки для занятий спортом на открытом воздухе, мужские и женские велосипедные носки
joom.ru
$8.30
Пижама майка + шорты MiaNaGreen П1103 (-) Синий, Пижама майка + шорты MiaNaGreen П1103 XS (40-42) Синий
rozetka.com.ua
$12.34
Нож охотничий Boda FB 66 "Медведь" нескладной с гравировкой. Материал клинка - нержавейка
prom.ua
$15.52

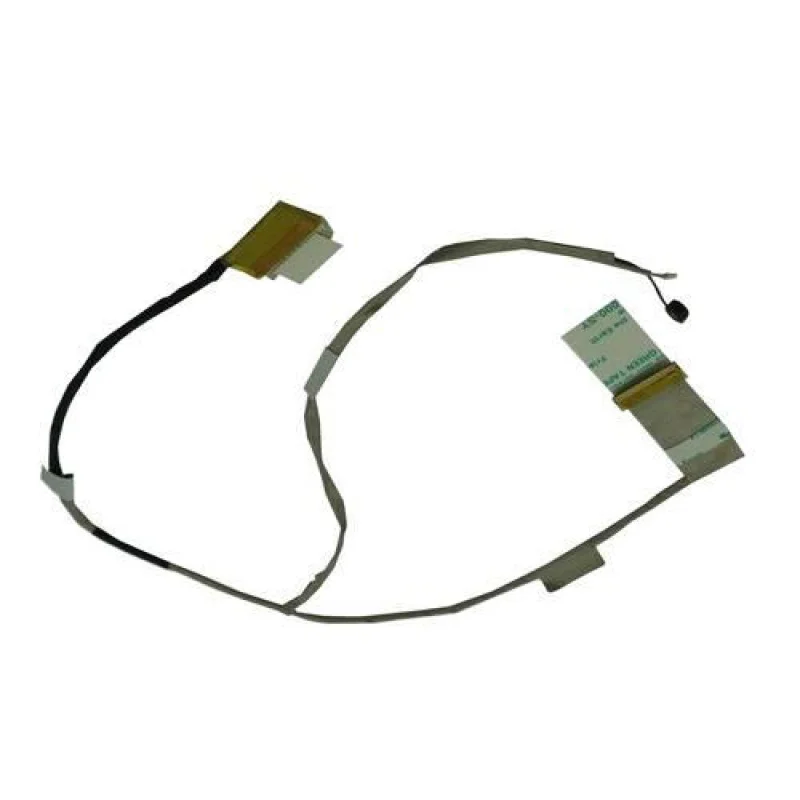

For ASUS X53S K53E A53S A53 K53 K53SJ LCD Screen Cable 14G221036000/14G221047000
