LYUMO 4-20mA Generator Adjustable Analog Quantity Current Signal Generator Module 4-20mA Signal Generator Signal Generator Module

walfront
артикул: 312646573
СОГЛАСНО НАШИМ ДАННЫМ, ЭТОТ ПРОДУКТ СЕЙЧАС НЕ ДОСТУПЕН
$15.64
Доставка из: США
Описание
Features: Input power is DC 3.3-30V recommended power supply is 12-24VDC. Input power supply product can generate 4-20mA current output by manual adjusting potentiometer used for current analog quantity 4-20mA output. Output current can be constant automatically at setting value according to adjustment; it can also be used as a constant current source of which the maximum output current should not exceed 20mA. Universal power supply of module can be used for PLC frequency converter servo. Module power consumption current is less than 30mA supports for general equipment. Specifications: Type: Current generator Model: 4-20mA Potentiometer Installation Hold Diameter: 10mm Size(L*W*H): 73*54*30mm/2.9*2.1*1.2in Hole Spacing: 61mm/2.4in Suitable Screws: M3 (NOT included) Weight: 74g(approx.) Wiring: 3-32V: DC power supply positive GND(left): Power supply negative GND(right): 4-20mA output current negative 4-20mA-OUT: 4-20mA output current positive Potentiometer: Adjust output range of 4-20mA clockwise to increase counterclockwise to reduce Instruction: About Output Impedance Matching: Output signal resistance must meet the following requirements According to the formula:I=U/R(current = voltage/resistance) So the maximum current that signal receiving end can generate is equal to dividing power supply voltage by signal resistance. In this way current generator still has some resistance. Thus concludes to a formula: Power supply voltage/(signal internal resistance + current generator internal resistance) = output constant current Our module power supply is 5-32V voltage so if using low voltage power supply and the signal internal resistance is large the output constant current will not be enough. Signal matching requirements is given below: For 24V power supply signal resistance shall not be greater than 1000 ohms. For 12V power supply signal resistance shall not be greater than 500 ohms. For 5V power supply signal resistance shall not be greater than 200 ohms. If your signal resistance is greater than the above parameters you can improve the power supply voltage or reduce internal resistance to ensure a enough constant current source.Note that the power supply voltage cannot be more than 32V. This module can be used for PLC frequency converter servo; and when using these products the module s voltage should match your interface. If you are not sure you can try 5V first then 12V or 24V power supply. Under the condition of normal function use low voltage as far as possible.There is another way:In general PLC frequency converter or server has a COM + COM - power output interface power supply can be directly from here. Package Includes: 1 x Signal Generator
График изменения цены & курс обмена валют
Пользователи также просматривали

$22.39
Домашний декор, декоративные фигурки, креативные бульдоги, полимерные поделки, красочные граффити, индивидуальные модные украшения для гостиной
aliexpress.com
$6.20
Elegant Women Vest Coat Stylish Men's V-neck Cardigan Vest Warm Casual Waistcoat for Autumn/winter Solid Color for Streetwear
aliexpress.com
$40.06
1Pair Headlight Lamp Daytime Running Lights Trim for BMW MINI R60 2011-2016 51139801573 51139801574
aliexpress.com
$44.94
Glow 3-wheel lean-to-steer scooter with light-up wheels, twintip antislip deck and integrated brake, adjustable height handlebar
aliexpress.com
$43.36
F-Key Flute Crystal Transparent Charging High-Power Led Illuminant Student Stage Performance Personalized Flute Instruments
aliexpress.com
$145.04
4CH 8CH 4K 8MP CCTV AHD DVR H.265 8 Channel 5MP 4K Digital Video Recorder Hybrid 8MP NVR Network Recorder XMEye Motion Detection
aliexpress.com
$1,060.20
stainless steel sculptures, abstract large floor to ceiling ornaments, creative artwork under st
aliexpress.com
$91.73
Holyrising Men Duck Down Jacket Thick Warm Coats Stand Collar Outwear Slim Solid Coat Zipper Manteau Homme M-3XL 18539-5
aliexpress.com
$137.40
Wall Printer Print Heads Glass Metal Wood Ceramic Tiles inkjet printer Wall Printing machine
aliexpress.com
$16.31
Women Spring Autumn Shirt Knit Vest Two Piece Set 2025 Korean Preppy Style Blue Stipe Blouse Tank Sweater Lady Casaul Joker Tops
aliexpress.com
$22.64
Автомобильный подстаканник, универсальный автомобильный вращающийся на 360 градусов Органайзер для еды и напитков, автомобильный регулируемый держатель для напитков, расширитель
aliexpress.com
$15.06
New Z-920 LCD Display Dashboard 6 Pin With Accelerator Handle For Kugoo M4 Electric Scooter Replacement Accessories
aliexpress.com
$8.91
Hoodie Men's and Women's Sweatshirt Reflective Letter Printed Woman Super Dalian Hoodie Fashion Hip Hop Street Sweat
aliexpress.com
$3.37
Treebud Fashion Chain Link Heart Bracelets Stainless Steel for Women Custom Names 2 Layer Ball Love Charm Pendant Bangle Jewelry
aliexpress.com
$1.60
Эмалированные заколки с милыми мультяшными совами, заколки для лацканов для рюкзака, мужские и женские броши для одежды, портфель, значки, модные аксессуары
aliexpress.com
$3.43
Useful Soft 3D Motorcycle Wireless Bluetooth-compatible Headset Cover Flexible Lightweight Earphone Case
aliexpress.com
$4.52
70 Sheets A5 Simple Notebook Minimalist NoteBook Pad Notebook with Tear-off Pages Portable Daily Planner Note Book
aliexpress.com
$60.00
NEO Gleam Modern led chandelier For Living Room Bedroom Studyroom Indoor Ceiling Chandeliers Smart Home Alexa Black/Chrome/Gold
aliexpress.com
$27.99
1/2/3PCS Foot Massage Slippers Acupuncture Therapy Massager Shoes For Foot Acupoint Activating Reflexology Feet Care Massageador
aliexpress.com
$30.29
1 PCS Green Qrpguys 40M-10M Ununtenna Plus Antenna Tunable Long Wire Antenna (Finished Product)
aliexpress.com
$30.04
Wooden Chinese Chess Educational Game Set Chinese Chess Set for International Chess
aliexpress.com
$27.34
Platform Sneakers for Women 2023 Summer Autumn New Designer Canvas Shoes Female Fashion Casual Board Shoes Ladies Zapatos Mujer
aliexpress.com
$2.45

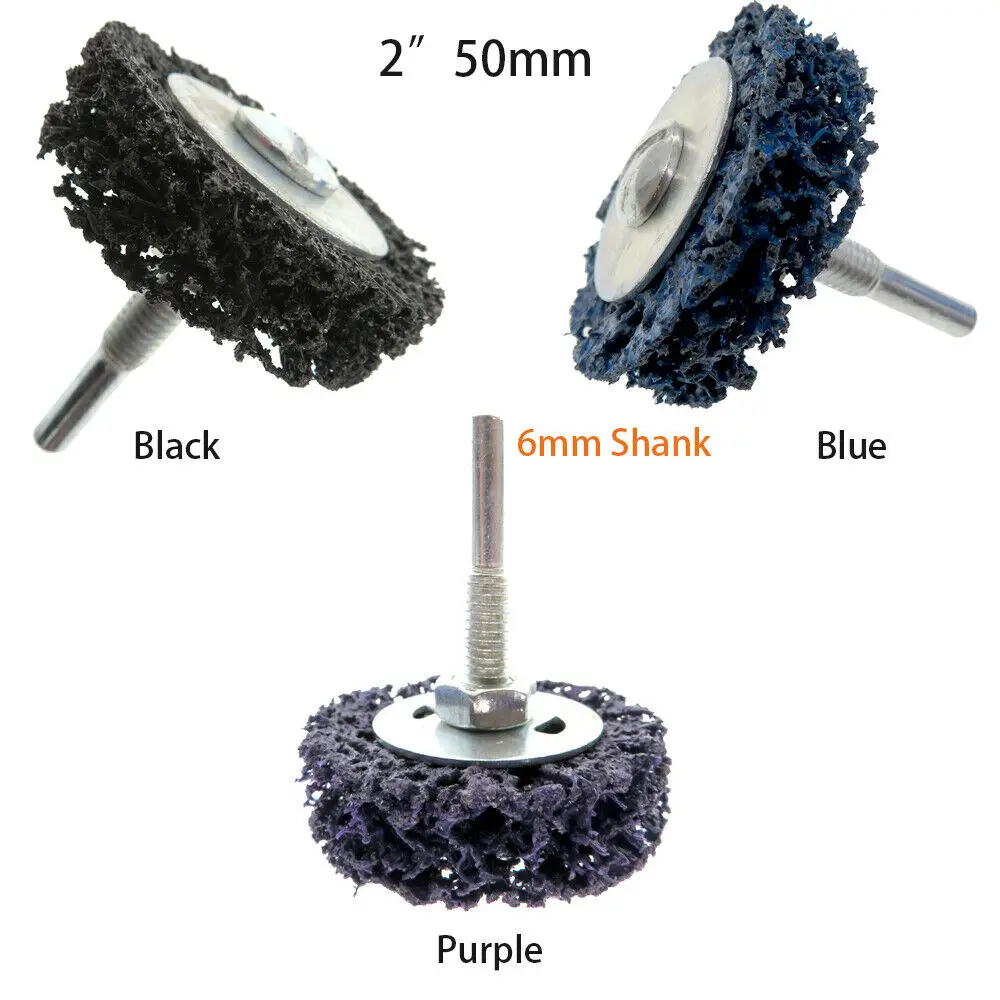

2 Inch 50mm Clean And Strip Disc Rust Paint Welding Spatter Removal For Angle Grinder
