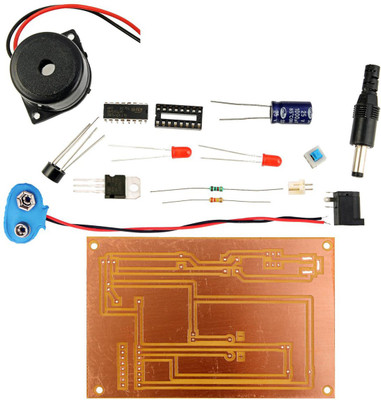

KitsGuru Electronic Eye LGKT110 Educational Electronic Hobby Kit

Electronic eye has much use in this electronic age, also Known as magic eye. It can be used as an automatic guest indicator at the door, if fitted on the bottom of the door entrance. Once it is installed at the door there is no need to install a call bell. It can also be used at homes or in banks as a burglar alarm.Fix the LDR to the wooden door or a locker to be protected in such a manner that when anybody tries to open it, a shadow falls on the LDR and the circuit gets activated and produce a pleasant sound through the buzzer. This electronic eye circuit uses NOT gate IC CD 4049. CD 4049 contains six independent NOT gate in one package; we have used one only.
