KitsGuru DC-DC Buck Converter 32V-40V DC to 125V-35V DC Step Down Modul (Set of 2) Electronic Components Electronic Hobby Kit

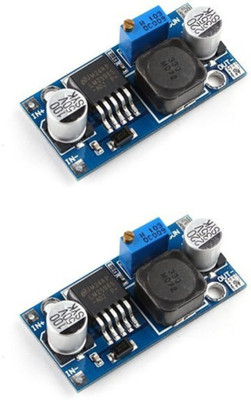

It is LM2596 LM2596S DC-DC 3-40V Adjustable Step-Down Power Supply Module having conversion efficiency Up to 92% (output voltage higher, the higher the efficiency). Some of its features are given below:1. Switching frequency: 150KHz2. Rectifier: Non-synchronous rectification3. Module properties: Non-isolated step-down module4. Short circuit protection: Current limiting, self-recovery5. Operating temperature: Industrial grade (-40 to +85 degrees Celsius) (output power 10W or less)6. Load regulation: +/- 0.5%7. Voltage regulation: +/- 2.5%8. Dynamic response speed: 5% 200uS9. Connection mode: Welded, plus pin can be directly soldered PCBIt have Potentiometer adjustment direction is in Clockwise (increase), Anti-clockwise (decrease). 1. Input voltage: 3-40V2. Output voltage: 1.5-35V (adjustable)3. Output current: Rated current is 2A, maximum 3A (if the output power more than 10W, the heat sink is needed.)4. Item size: 44 * 22 * 12mm / 1.7 * 0.9 * 0.5in5. Item weight: 12g / 0.4oz.
