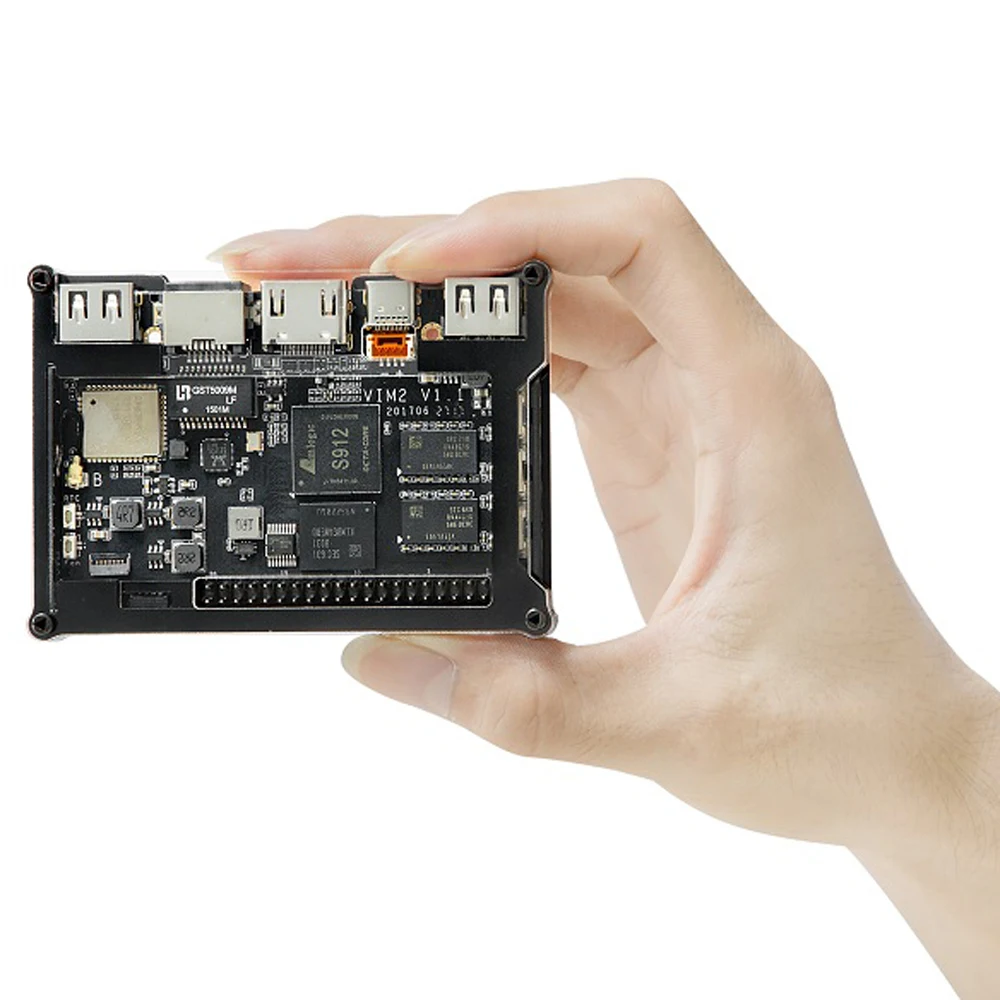

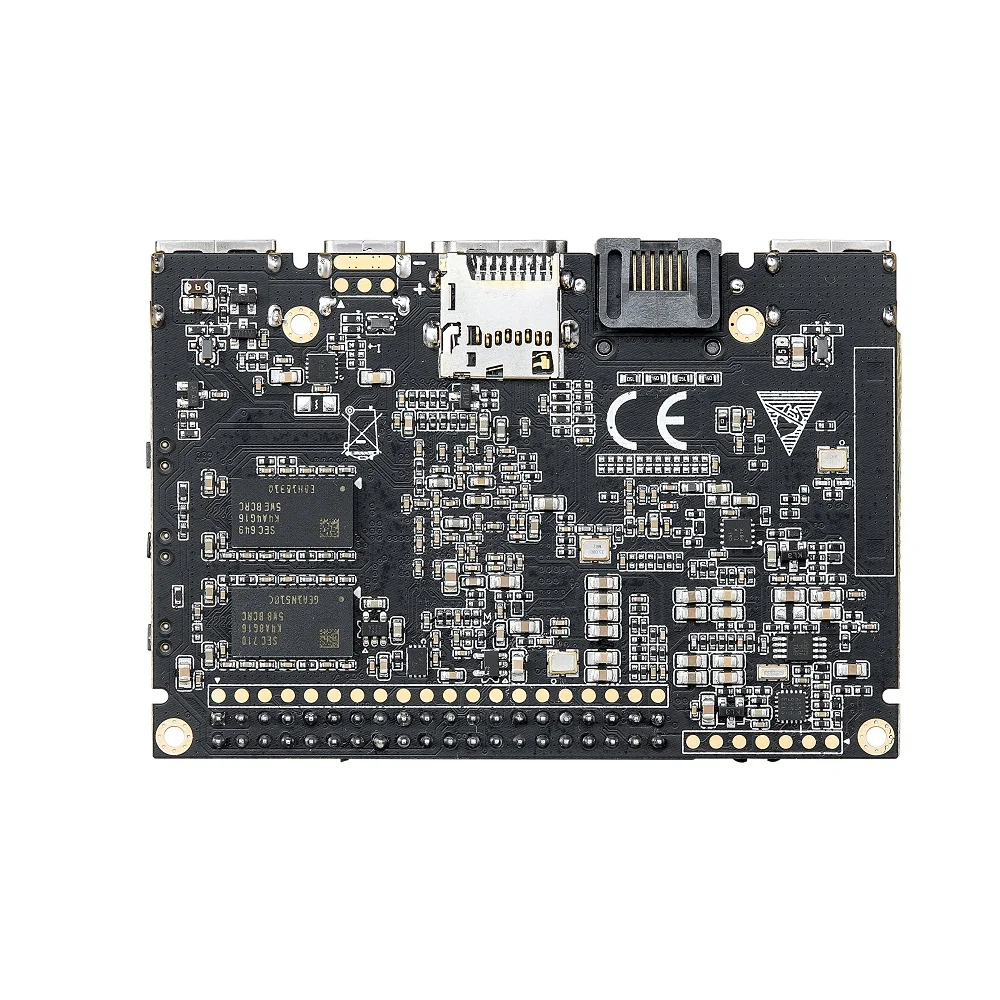

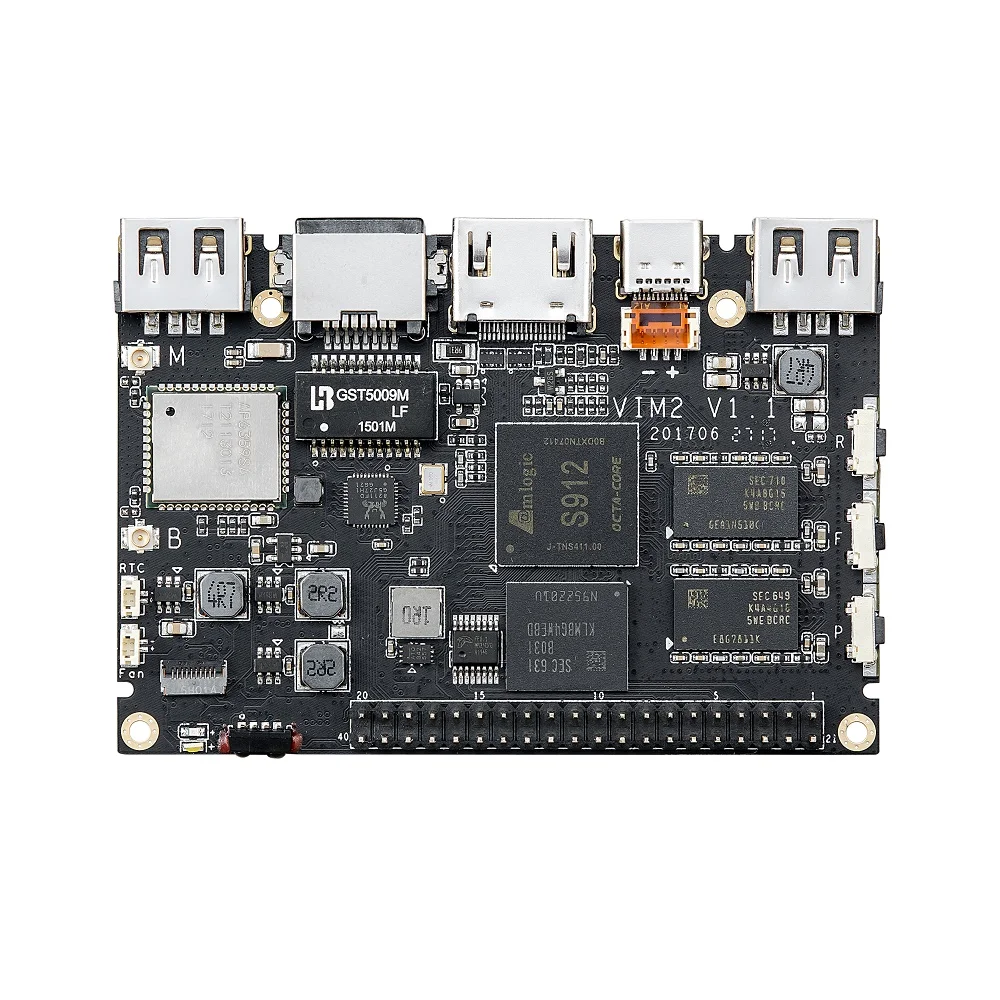

Khadas VIM2 Pro Single Board Computer with RSDB Function / Programble MCU / Wake on LAN
sku: 32904934100
ACCORDING TO OUR RECORDS THIS PRODUCT IS NOT AVAILABLE NOW
$99.99
Shipping from: China
Technical Details
| Board Dimensions: | 82.0 x 57.5 x 11.5 mm |
| Brand Name: | Khadas |
| Buttons: | x3 (Power / Function for DIY / Reset) |
| Chipset: | Amlogic S912 ARM 64Bit Octa Core Cortex-A53 |
| Cooling Fan Header: | 3 Levels Speed for adjustable, with a 0.8mm Pitch Header |
| Current Limit Switch: | Programmable, 3.0A as default (up to 4.0A) |
| Demo Board Type: | ARM |
| FPC Connector: | 10-Pins, 0.5mm Pitch, with I2C, IOs |
| HDMI CEC: | Supported |
| Interface: | 2 x USB2.0,TF Card Support,HDMI/RCA Output,USB OTG |
| Intergrated Feature: | 10/100/1000Mbps,Bluetooth,IR Receiver,WiFi 802.11b/g/n |
| LEDS: | Blue LED x1, White LED x1 |
| MCU: | STM8S003 with Programmable EEPROM |
| Model Number: | VIM2 Pro |
| Mounting holes: | Size M2 x 4 |
| O/S: | Android, Ubuntu, Docker, Buildroot. |
| Pins I/O Header: | 2.54mm, USB, I2C, I2S, SPDIF, UART, PWM, ADC, ISO7816 |
| Pogo Pads Array: | USB, I2C, DVB-Bus, IOs |
| Pogo Pads for VIN: | System Power Input |
| Pogo Pads MCU: | SWIM, UART, ADC, NRST |
| Power Supply: | USB Type-C with USB 2.0 OTG Support and DC in, 5V2A |
| Processor Brand: | AMLogic |
| RAM/ROM: | 3GB DDR4 + 32GB EMMC-V5.0 |
| RTC & Battery Header: | 0.8mm Pitch Header |
| SPI Flash: | 2MB |
| USB2.0 HOST: | x2 (900mA & 500mA Load) |
| VIN Extra Power IN: | 4-Pins, 1.25mm Pitch Header |
| Wide Input Voltage: | Range from 5V to 9V, Recommend 5.0V |
| WIFI Module: | MIMO x 2 Broadcom WiFi AP6359SA with RSDB, V4.2 Bluetooth |
| WOL: | Wake on Lan Supported |
