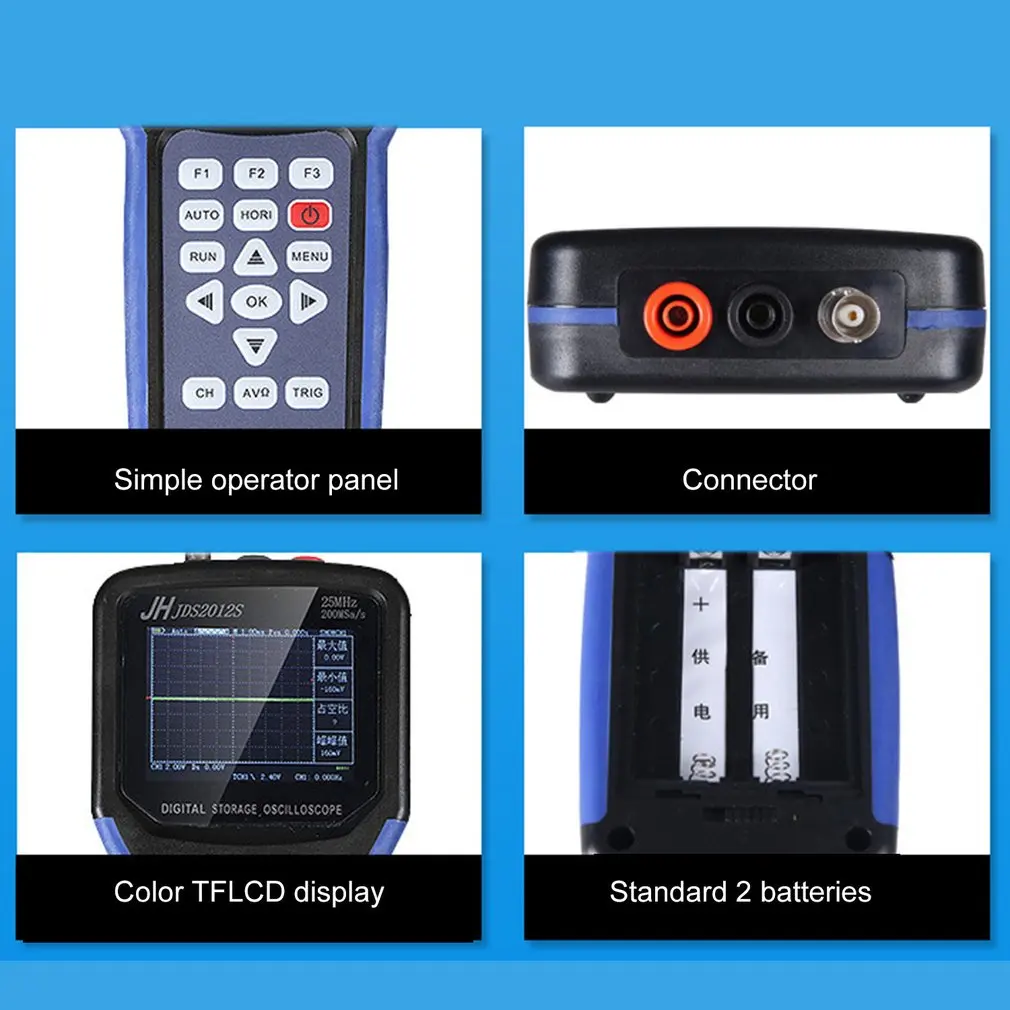

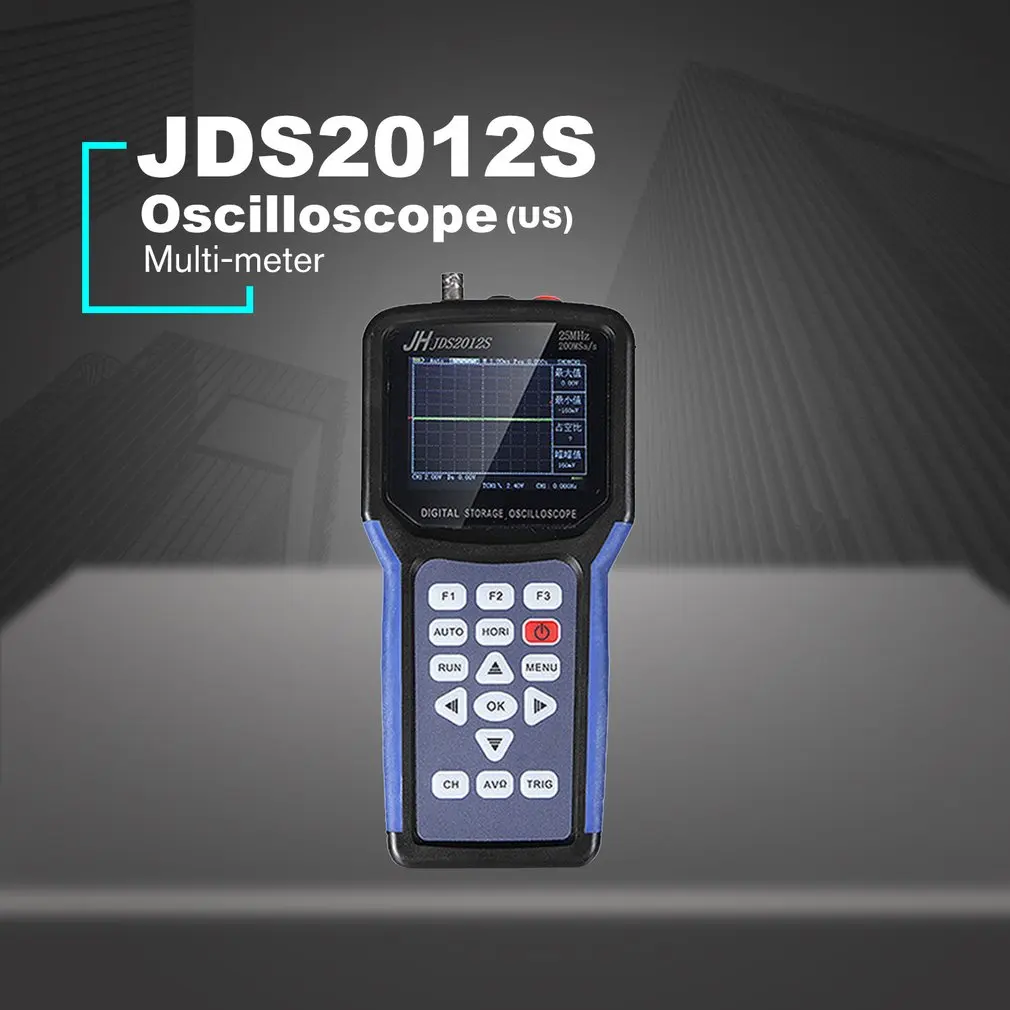

JDS2012S Professional Handheld Digital Oscilloscope 4000 Counts Digital Multimeter 25MHz 200MSa/s with Lithium Battery Charger

JDS2012S Professional Handheld Digital Oscilloscope 4000 Counts Digital Multimeter 25MHz 200MSa/s with Lithium Battery Charger
thumb
thumb
thumb
thumb
thumb
thumb
sku: 33041313769
ACCORDING TO OUR RECORDS THIS PRODUCT IS NOT AVAILABLE NOW
$118.28
Shipping from: China
   Technical Details
Acquisition mode: Sampling,peak detect
Attenuation setting: 1X,10X,100X
Automatic detection: Support(50Hz-40MHz)
Bandwidth: 25MHz
Band Width: /
Battery: 2000+mA Lithium battery (NOT included)
Brand Name: ACEHE
Channel: 1
Color: Black-Blue
Cursor measurement: Support time and voltage
Digital Channels: /
Display Mode: Y-T
Display resolution: /
Display Size: None
DIY Supplies: Electrical
Horizontal scanning range: 10nS/div-5S/div
Input coupling: AC,DC
Input Voltage: AC 110-220V
IS Battery Demountable: Yes
Material: ABS
Measurement: The peak to peak value and frequency
Measuring method: Manual
Model: JDS2012S
Model Number: Oscilloscope
Plug Type: EU plug, US plug (Optional)
Probe Attenuation: 1X,10X
Real Time Sampling Rate: /
Record Length: /
Sampling method: Real time sampling, random sampling
Screen: 3.2 inch, 16 bit true color, TFT, 320*240
Size: 252x65x207mm/10.02x2.55x8.14in
Socket Type: US,EU (Optional)
The input impedance: 1MΩ 25pF
The maximum input voltage: 40V(Probe X1);400V(Probe X1);2000V(Probe X100)
The real-time sampling rate: 200 MSa/s
The storage depth: 2K
The vertical accuracy: +/-3%
The vertical resolution: 8bit
Trigger Mode: Automatic, normal and single
Trigger type: The rising edge, falling edge
Vertical sensitivity: 10mV-5V(Probe 1X) 100mV-50V(Probe 10X) (1,2.5,5 Stepping)
Weight: 840g/29.63oz
