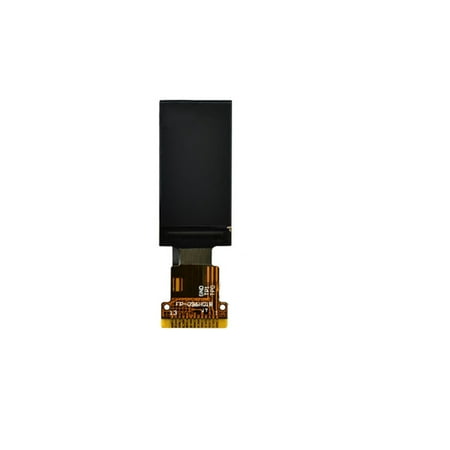

IPS 0.96-inch TFT display LCD screen ST7735 resolution 80x160 3.3V 4 Line SPI

Feature *Upgrade your display and use our 0.96 -inch TFT color screen to provide high -definition IPS display with accurate color and bright natural images. *Easy to install these screens have energy saving easy to install and have a wide range of applications making it very suitable for any project. *Strong compatibility embedded ST7735S driver embedded ST7735S driver and SPI bus to compare these screens with STM32 and other controllers. *These screen resolution is 80 x 160 smaller light and thin with high -gloss transmission rate making it very suitable for any project. *These TFT screens are compact and practical without flash screens no radiation fast response speed and low power consumption making it very suitable for any project. Specification Size: 0.96 inches Material: HD IPS LCD Resolution: 80 (h) RGB x 160 (v) Driving chip: ST7735S Communication interface: 4 Line SPI Show color: full color Show area: 10.8 (h) x 21.7 (v) mm Panel size: 13.5 (h) x 27.95 (v) x1.5max (d) mm Pixel spacing: 0.135 (h) x 0.1356 (v) mm Connection method: inserted Type 8pin (0.5mm spacing) Connection method: welded Type 13pin (0.7mm spacing) Perspective direction: All view Working voltage: 3.3V Work current: 20mA Backlight type: 1 LED Work temperature: -20 ~ 70 degrees Package included 1*IPS 0.96 -inch TFT display (insert/weld) Note: 1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. 2. Please allow slight manual measurement deviation for the data.
