Household Lathe Small Multi-function Lathe Rig Drilling and Milling Machine Metal Milling Machine Lathe Machining Center
sku: 4000174848413
ACCORDING TO OUR RECORDS THIS PRODUCT IS NOT AVAILABLE NOW
$2,687.39
Shipping from: China
Technical Details
| Bed width: | 180mm |
| Brand Name: | CXFWDJ |
| CNC or Not: | CNC |
| Condition: | New |

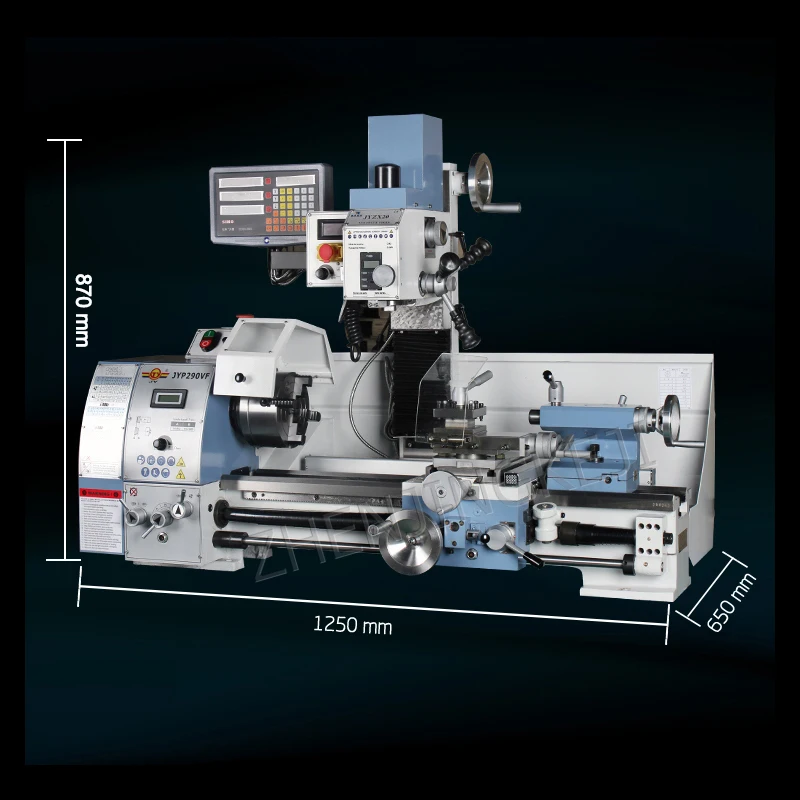

| Dimensions: | 1250*650*870mm |
| Large pallet speed: | 0.02-0.28MM/R |
| Middle carriage speed: | 0.07-0.40MM/R |
| Middle carriage stroke: | 140mm |
| Model Number: | JYP290VF |
| motor power: | 1100W DC motor / 850W AC motor |
| Net Weight: | 280KG |
| Plug: | EU |
| Shift mode: | DC stepless speed / frequency speed |
| Spindle speed range: | 50-1800RPM in two steps |
| spindle taper: | MT5 |
| Spindle through hole diameter: | 38mm |
| Swing diameter: | 280mm |
| Tailstock sleeve stroke: | 94mm |
| Tailstock taper: | MT3 |
| Turning inch thread range: | 8-56TI 21 types |
| Turning metric thread range: | 0.2-3.5MM18 |
| Two page tip distance: | 700mm |
| Type: | Horizontal |
| Voltage: | 220V |
